Pallet

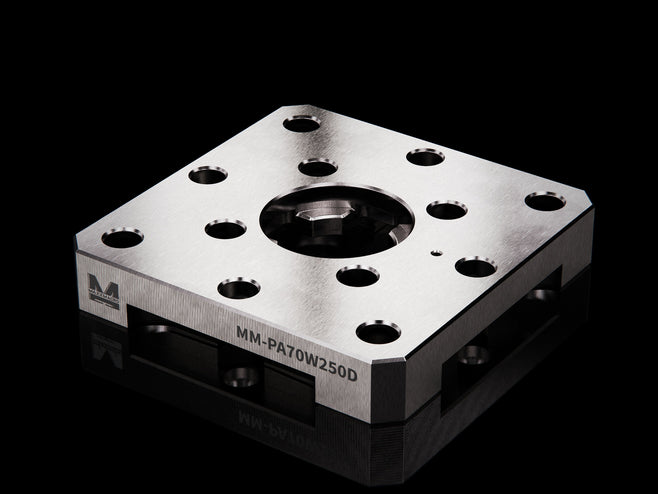

MaxxMacro 70 Stainless Performance Rust Proof Pallet Index Disabled comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. Performance pallet with 250" finished dowels and index-disable function.
MaxxDesign Exclusive Features:
- Machined from solid 440C stainless steel for maximum strength and corrosion resistance
- Includes Index Disabled feature and four finished .250" dowel holes
Product Information:
MaxxMacro 70 Stainless Performance Rust Proof Pallet Index Disabled features a disabled index system designed to prevent incorrect loading. The pallet integrates a male interface that pairs with the female interface on the chuck, following the same 40 mm centerline and .250 dowel pattern as OEM System 3R pallets. It provides fool-proof positioning for use with Disable Index chucks. Ideal for applications where absolute alignment control is critical.
Product Specifics
- Included Items: Index Disabled Pin
Product Details
| Product Name | MaxxMacro® 70 Stainless Performance Pallet Index Disabled WEDM Rust Proof |
| SKU/Part Number | MM-PA70W250D [Old SKU: MX-70PALMEY] |
| System | MaxxMacro (System 3R 100% Cross-Compatible) |
| Cross-Compatible | 3R-601.7-N, 3R-601.7-P, 3R-601.7E-P |
| System Repeatability | 0.002mm |
| Material | Stainless 440C |
| Weight | 0.29 kg | 0.64 lb |
