What are the dowel-hole center tolerances of MaxxMacro 54 and 70 Performance Pallets?
Updated

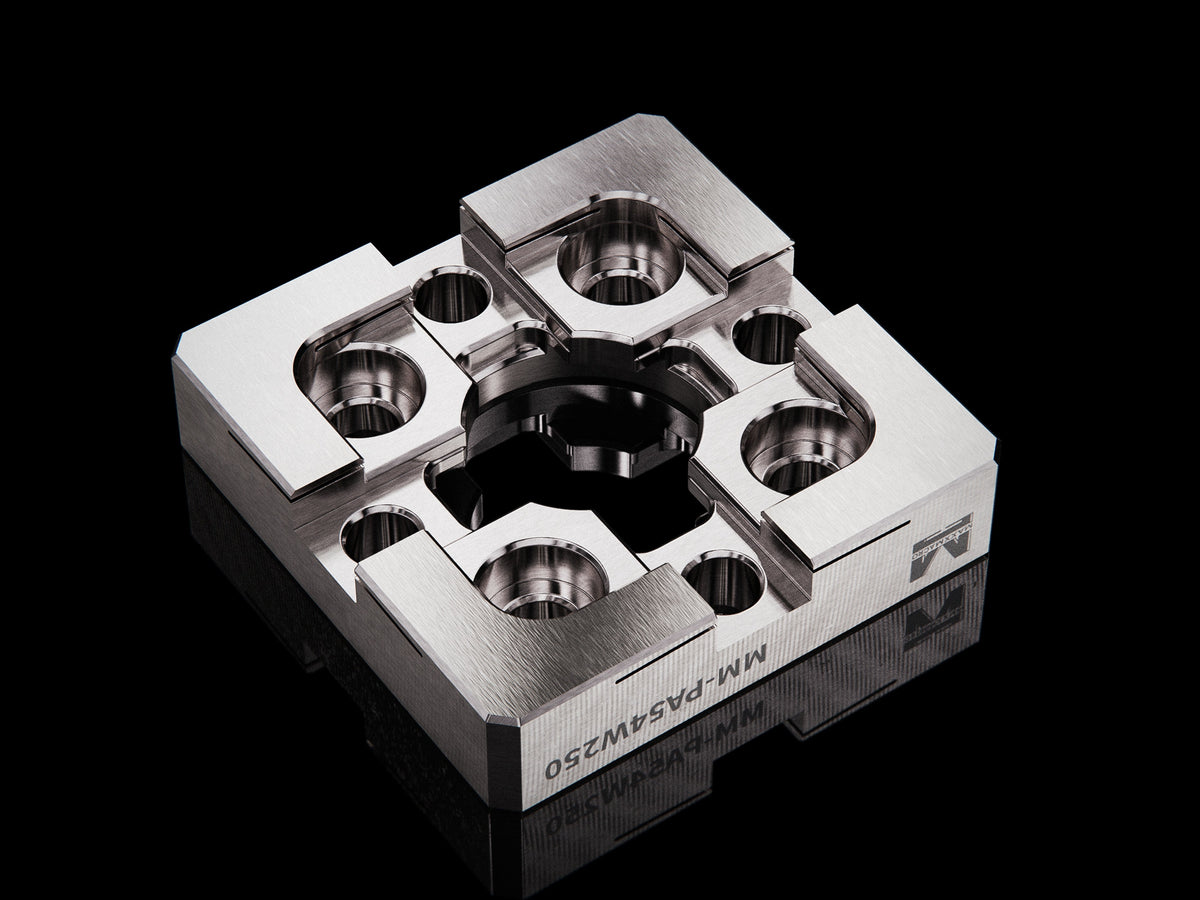

The finished dowel holes in MaxxMacro (System 3R OEM 100% cross-compatible) Performance Pallets have a center tolerance of ±0.005 mm. They are machined while the pallet is mounted on a chuck so their positions align with the chuck’s XY reference.
The holes can be used to locate a custom fixture. While they are not explicitly designed for 3R locating features, their precision and repeatability make them a dependable solution for demanding applications.
