Custom designed chucking system for a Mitsubishi Wire EDM MV-1200 , built in hard angles allow the operator to machine 12 parts per cycle all presented on various angles. This presents the workpiec...

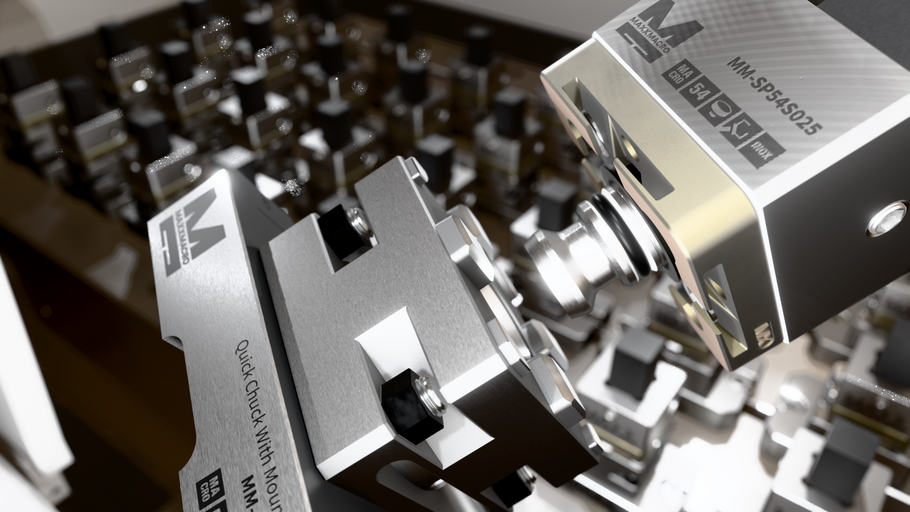

This variation of the MaxxMacro 54 HP Pallet 54MM With .250 Dowels include a stop pin installed and matched to our MaxxMacro 70 Pneumatic 6001030 Pneumatic Chuck with Stop pin.
Test Cycled one Maxx Tooling 50mm holder 2,844 times capturing offset data every 6th tool change..In general any visual wear was very minimal and unmeasurable

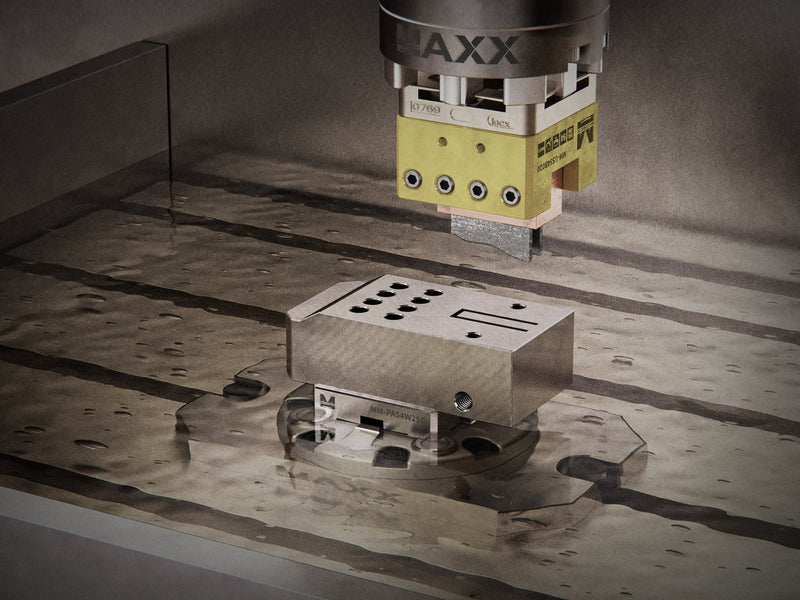

This little tool allows you to set large electrode in specific angles while maintaining the rigidity required when heavy hydraulic forces of EDM are present.
We can't always show the custom tooling we build, but this medical customer was kind enough to send us a nice bit of feedback and a photo.
Produced for Prestige Extreme Distribution's customer on short order during the Covid-19 pandemic.
Produced with custom pattern combined with typical FCS mounting pattern, allowing customer to...
