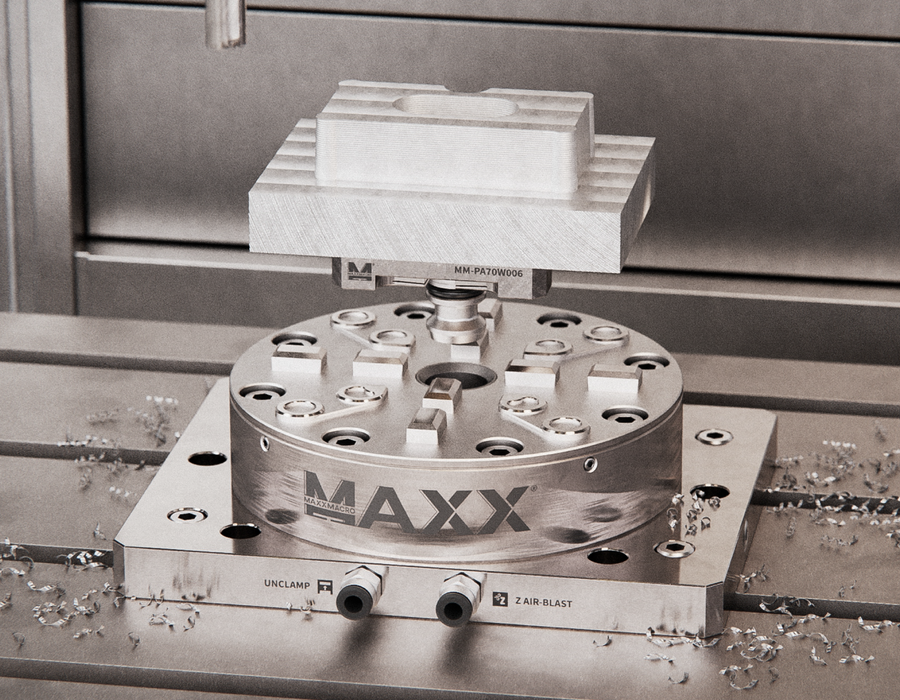

Palletization in Modern Manufacturing: Custom Pallets for Precision Workholding

Palletization in Modern Manufacturing

In modern machining, repeatability is not only determined by the machine tool or the fixture itself. The interface between the machine and the workholding system can be equally important.
A pallet provides this interface. It connects a fixture, vise, chuck, or other workholding device to a standardized reference system, allowing it to be positioned and transferred with consistent repeatability.
As manufacturing environments become more automated and production moves between machines and processes, palletization provides a way to standardize setups, reduce setup time, and improve repeatability.
At MaxxTooling, we manufacture pallets for different reference systems and applications, from standard configurations to fully customized solutions produced from drawing to finished product.

What Is a Pallet and What Is It Used For?

A pallet is the mechanical interface between a workholding fixture and the machine's referencing or zero-point system.

Instead of mounting a fixture directly to a machine table, the fixture is mounted to a pallet. The pallet can then be located through a compatible reference system, creating a repeatable connection between the machine and the workholding.

The basic concept is:

A) Machine Table → Reference System → Pallet → Fixture → Workpiece

In some cases, the fixture can also be omitted and mount the workpiece on the pallet:

B) Machine Table → Reference System → Pallet → Workpiece

This approach is particularly valuable when fixtures need to be removed, exchanged, or transferred between different operations. A palletized setup can help manufacturers:

Reduce setup and changeover time
Establish repeatable workpiece positioning
Standardize fixture mounting
Simplify fixture changes
Support automation and unattended production
Transfer workholding between compatible machines and processes

What Is MaxxTooling's Palletization Service?

A pallet may look like a relatively simple component, but its role within a modern manufacturing setup is much more significant.

It establishes the interface between the workholding and the machine. It can determine how consistently a fixture is positioned, how quickly it can be exchanged, and how easily that fixture can be integrated into an automated or standardized production process.

For some applications, a standard cast pallet may provide everything that is required.

For more demanding applications, a machined Performance Pallet may provide additional rigidity, dimensional control, and durability.

And when a standard configuration doesn't fit the application, a customized pallet can bridge the gap between existing workholding and a standardized reference system.

At MaxxTooling, palletization goes beyond supplying a component. We manufacture the interface required to integrate your workholding into your manufacturing process.

The process can include:

Application requirements → Engineering → Material selection → Machining → Heat treatment/hardening → Finishing → Inspection → Finished pallet

Depending on the application, pallets can be manufactured from different grades of stainless steel and supplied with specific heat treatments, hardening, and finishing processes. The result is not simply a standard pallet. It is an interface designed around the customer's existing equipment and manufacturing requirements.

You can visit Custom Workholding Solutions, to request a custom solution.

Mounting an Existing Fixture

One common application is adapting an existing fixture to a zero-point or reference system.

For example, a manufacturer may already have a specialized vise or fixture that works well for a particular component. Instead of replacing that workholding, a customized pallet can be manufactured to mount the fixture to the required reference system.

This allows the existing workholding to become part of a standardized palletized workflow.

Existing fixture + customized pallet + reference system = repeatable machine interface

This approach can be particularly useful when manufacturers are integrating workholding into automated production cells or standardizing setups across multiple machines.

Custom Pallets for Specific Applications

Other applications require the pallet itself to be designed around a particular fixture or production process.

Hole patterns, dimensions, mounting locations, material, reference elements, and other characteristics can be adapted according to the application.

This is especially relevant when the pallet must accommodate:

Specialized fixtures
Large or irregular workholding
Automated loading and unloading
Multiple workholding components
Specific machine interfaces
Existing customer equipment

Custom pallets and adapters are particularly useful when integrating workholding components with different reference systems. MaxxTooling offers customized adapter solutions to bridge these interfaces, allowing workholding from one ecosystem to be used with another.

For example, adapters can be designed to integrate MaxxZPS Vises into MaxxMacro interfaces, providing greater flexibility when configuring existing machine and workholding setups.

The objective is to create a pallet that integrates into the manufacturing process rather than forcing the process to adapt to a generic component.

How Does Palletization Solve Real Manufacturing Challenges?

The value of palletization becomes most apparent when it is applied to real manufacturing challenges.

A pallet can be used to integrate a customer's existing fixture, adapt a workholding solution to an automated cell, or create a standardized interface for multiple production processes.

At MaxxTooling, our palletization service has been applied to different workholding and automation requirements, including projects involving HWR and Gremo Tool.

Success Story: HWR

Through our collaboration with HWR Workholding USA, MaxxTooling provided a customized palletization solution for a family of HWR Self-Centering Vises.

The project included custom pallets designed for both Maxx-ER, compatible with EROWA-style systems, and MaxxMacro®, compatible with System 3R-style interfaces.

By adapting the pallet interface to each reference ecosystem, MaxxTooling helped make HWR’s precision workholding solutions compatible with different machining environments.

What Pallet Systems Does MaxxTooling Offer?

MaxxTooling offers pallet solutions for three main workholding and reference systems: (1) MaxxMacro®, (2) Maxx-ER, and (3) MaxxZPS. Each system uses a different pallet interface and configuration, but all are designed to provide a repeatable connection between the fixture and the machine. The appropriate pallet depends on the reference system, workholding configuration, and specific requirements of the application. MaxxTooling offers standard pallet configurations as well as customized solutions for specialized fixtures and manufacturing setups.

(1) What Pallets Does MaxxMacro® Offer?

MaxxMacro pallets are available in different sizes and configurations to accommodate different workholding requirements. MaxxMacro® and MaxxMagnum are compatible with System 3R style reference ecosystem.

MaxxMacro® 54: The MaxxMacro® 54 platform provides a compact pallet solution for applications where space and fixture size are important considerations.
MaxxMacro® 70: The MaxxMacro® 70 platform provides a larger interface for applications requiring additional mounting area and capacity.
MaxxMagnum: For larger workpieces and heavier workholding applications. The additional size allows the pallet to accommodate larger fixtures and more demanding setups while maintaining the same fundamental principle of a standardized reference interface.

Visit MaxxMacro® Pallets to see all the pallets we offer.

What Are the MaxxMacro® Performance Pallets?

Performance pallets are designed for applications where the pallet itself must provide a higher level of mechanical and dimensional performance.

Instead of relying on a cast body, MaxxMacro® performance pallets are machined from solid stainless steel and are available for selected MaxxMacro® workholding configurations.

For demanding workholding applications, this can provide advantages in areas such as:

Rigidity
Dimensional stability
Surface quality
Corrosion resistance
Repeatability
Long-term durability

MaxxMacro® Performance Pallets and Spacers:

The benefit of this approach is not simply the material itself. The pallet becomes a precision component of the complete workholding system. When a fixture is located repeatedly through the same reference interface, the pallet contributes directly to the consistency of that setup.

You might also be interested in: MaxxMacro Premium Pallets: How do they look after 2800 cycles?

(2) What Pallets Does Maxx-ER Offer?

Maxx-ER pallets are designed for applications using the EROWA-style reference ecosystem.
Different sizes and configurations allow the pallet to be adapted to different fixture dimensions and manufacturing requirements.

Maxx-ER 100: Primarily used for lighter machining operations, holders, and similar workholding applications.
Maxx-ER G: It provides reliable performance for standard CNC machining and general-purpose applications.
Maxx-ER P: The highest-quality configuration, featuring locators machined directly into the pallet. This design provides increased rigidity for demanding applications, including 5-axis machining and heavy cutting operations.

Visit Maxx-ER® Pallets to see all the pallets we offer.

(3) What Pallets Does MaxxZPS Offer?

MaxxZPS provides a zero-point interface for applications where fast and repeatable fixture positioning is required. MaxxZPS is compatible with LANG-style reference ecosystem.

The system uses a standardized pallet-to-zero-point connection, allowing fixtures to be mounted and exchanged without rebuilding the complete setup each time.

MaxxZPS pallets are available in different configurations designed for different mounting requirements.

MaxxZPS 52: The MaxxZPS 52 platform provides a compact pallet solution for applications where space and fixture size are important considerations.
MaxxZPS 96: The MaxxZPS 96 platform provides a larger interface for applications requiring additional mounting area and capacity. It allows for the attachment of larger and more robust parts or workpieces.

Are MaxxTooling pallets compatible with automation?

Yes. MaxxTooling pallets are designed to support automated manufacturing processes by providing a repeatable interface between the workholding and the machine or automation system. Our automation-compatible solutions are currently available for major workholding reference systems, including LANG (MaxxZPS), EROWA (Maxx-ER), and System 3R (MaxxMacro®).

For MaxxMacro®, we offer automation-compatible configurations for MaxxMagnum 116 and MaxxMagnum 156 robot grippers. For Maxx-ER, available options include ITS 115, ITS 148, and RCS solutions for UPC pallets, depending on the application and automation setup.

MaxxTooling solution	OEM Reference System	Automation compatibility
MaxxMacro® / MaxxMagnum	System 3R	116 / 156
Maxx-ER / MaxxUPC	EROWA	ITS 115 / ITS 148 / RCS
MaxxZPS	LANG, 5th-Axis	Cleat 52 / Cleat 96

If your automation system uses a different robot interface, such as a "ITS 50 C-style robot gripper" or ITS 50 D72, MaxxTooling can also develop a customized solution to meet your specific requirements. Our palletization and adapter capabilities allow workholding components to be integrated into automated cells while maintaining consistent positioning, repeatability, and compatibility with the existing manufacturing setup.

You can visit Custom Workholding Solutions, to request a custom solution.

Conclusion

From standard MaxxMacro®, Maxx-ER, and MaxxZPS pallets to fully customized interfaces, MaxxTooling provides workholding solutions designed around your equipment, reference system, and manufacturing requirements. Whether you need to standardize existing fixtures, improve setup efficiency, integrate automation, or develop a custom pallet, our engineering and manufacturing capabilities can provide a solution built for your application

FAQs

What is precision workholding and why is it important in CNC machining?

Precision workholding is a system used to securely locate and hold a workpiece while maintaining a controlled and repeatable reference during machining.

Workholding affects how accurately a component can be positioned, how rigidly it is supported, and how consistently it can be machined between operations.

How does palletized workholding reduce setup time?

A palletized system allows a workpiece or fixture to be transferred between machines while preserving a known reference, potentially reducing the need for repeated alignment.

What is 5-axis workholding?

5-axis workholding is designed to secure a component while providing sufficient tool clearance for machining multiple faces and complex geometries from different orientations.

Can the same workholding system be used for milling and EDM?

Some modular reference systems can be configured for multiple processes, allowing compatible workholding interfaces to be used across milling, EDM, Wire EDM and inspection workflows.

How does workholding affect machining accuracy?

Workholding influences positioning, rigidity, vibration, deformation and repeatability. It cannot compensate for every machine, tooling or process error, but it is an important part of the overall machining system.

What brands does MaxxTooling carry and what OEMs are they compatible with?

MaxxTooling offers a range of precision workholding solutions under the MaxxMacro® and Maxx-ER brands. For larger workpieces, the product lines are available as MaxxMagnum and MaxxUPC, respectively.

MaxxMacro® / MaxxMagnum — Compatible with System 3R.

Maxx-ER / MaxxUPC — Compatible with EROWA ITS.

MaxxZPS — Compatible with LANG and 5th-Axis
