Custom Workholding Solutions: From Blueprint to Precision Fixture
When Do You Need Custom Workholding Solutions?
In precision manufacturing, the quality of a machining setup depends on more than the machine tool or cutting process. The way a workpiece is positioned, supported, and secured can directly influence machining accuracy, repeatability, tool access, and overall production efficiency.
Standard workholding products provide reliable solutions for many applications. However, some components present challenges that require a different approach. Irregular geometries, thin-walled parts, restricted machining access, and non-standard materials can make conventional clamping methods difficult to implement.
This is where custom workholding solutions become essential.
At MaxxTooling, our Custom Workholding Solutions service focuses on developing fixtures designed around specific part geometries and manufacturing requirements. By combining engineering expertise with CAD/CAM modeling and application-focused design, we help bridge the gap between a technical drawing and a functional workholding solution for milling, EDM, and Wire EDM applications.
From specialized vises to custom holders, the objective is to develop workholding that integrates with the customer's process rather than forcing the process to adapt to a standard fixture.
What Are Custom Workholding Solutions?
Custom workholding solutions are fixtures, holders, vises, or other clamping components designed to meet the requirements of a specific part or manufacturing operation.
Unlike standard workholding products, which are designed for a defined range of applications, custom fixtures can be adapted to particular geometries, mounting requirements, clamping points, and machine configurations.
The need for customization often arises when a standard fixture cannot provide the required combination of stability, accessibility, and repeatability. For example, a component with an irregular shape may require specially designed contact surfaces to establish a secure reference. A thin-walled workpiece may need carefully positioned clamping points to reduce the risk of deformation. In another application, the fixture may need a compact footprint to provide access to areas that would otherwise be obstructed during machining.
These challenges demonstrate why workholding design must consider the complete machining process, not only the physical dimensions of the component.
A custom solution can address requirements such as:
- Part geometry: Accommodating complex shapes, non-standard dimensions, and specialized contact surfaces.
- Clamping stability: Supporting the workpiece appropriately for the intended machining operation.
- Machine access: Minimizing fixture interference and providing clearance for tools, electrodes, and other equipment.
- Repeatability: Establishing consistent positioning for repeated setups and production runs.
- Equipment integration: Adapting the fixture to the customer's existing machine, reference system, or workholding configuration.
- Handling requirements: Considering how components are loaded, secured, released, and removed.
The appropriate design depends on the workpiece, the machining method, and the operating conditions. A fixture developed for milling, for instance, may have different rigidity and clearance requirements from a holder used for EDM or Wire EDM.
You can visit Custom Workholding Solutions, to request a custom solution.
How Does the Process Work?
Developing a custom workholding solution begins with understanding the application. The technical drawing is an important starting point, but a successful design also depends on how the component will be machined and how the fixture will be used in production.
MaxxTooling's Custom Workholding Solutions service uses engineering and CAD/CAM modeling to develop workholding around the part's geometry, with an emphasis on machine access, vibration control, and consistent loading and unloading.
The process can be understood through the following stages:
1. Application Requirements:
The first step is to identify the workholding challenge and define what the fixture needs to accomplish. This includes reviewing the component's geometry, the intended machining process, the available clamping surfaces, and any restrictions imposed by the machine or existing setup.
Technical drawings, CAD models, material information, and details about the operation help establish a clearer picture of the requirements. At this stage, it is also important to identify the primary constraints. These may include limited access, unusual geometry, insufficient clamping surfaces, or the need to maintain a consistent reference between setups.
2. Engineering Review and Fixture Design:
Once the requirements are understood, the next step is to develop a fixture concept around the workpiece and its application. Through CAD/CAM modeling, the geometry, mounting arrangement, and relationship between the fixture and workpiece can be evaluated before manufacturing to identify potential interference and ensure adequate access to the areas being machined.
The design is then refined by defining the necessary dimensions, interfaces, locating features, clamping surfaces, and clearances. Depending on the application, this may involve a compact vise or a dedicated holder with a specific profile or orientation. The objective is to create a practical workholding solution that meets the application's requirements while simplifying setup and accommodating operator or automation access when necessary.
3. Manufacturing:
Once the design is finalized, the fixture moves into manufacturing.
The manufacturing approach and material selection depend on the intended use, required geometry, and applicable performance requirements. The objective is to produce the designed features and interfaces accurately enough for the fixture to perform its intended function. Any special material, heat-treatment, finishing, or tolerance requirements should be established according to the application rather than assumed to be the same for every custom project.
4. Inspection and Application Validation:
The final stage is to verify that the manufactured fixture meets its specified requirements.
Relevant checks may include critical dimensions, mounting interfaces, locating features, and other characteristics identified during engineering.
Where appropriate, validation in the intended setup can help confirm that the fixture provides the required access and functions as expected. The result is a workholding solution developed around the customer's application, from the initial design requirements through the manufactured fixture.
You can visit Custom Workholding Solutions, to request a custom solution.
Custom Workholding in Practice: Success Case Studies
Custom workholding solutions address specific manufacturing challenges that standard fixtures cannot always accommodate. At MaxxTooling, each custom fixture is designed around the workpiece geometry, machining requirements, and machine setup to improve accessibility, accommodate specialized positioning, and avoid potential collisions. The following case studies demonstrate how MaxxTooling modifies existing workholding products or develops tailored solutions to solve real-world machining challenges across different applications.
Success Case Study 1: Compact Vise

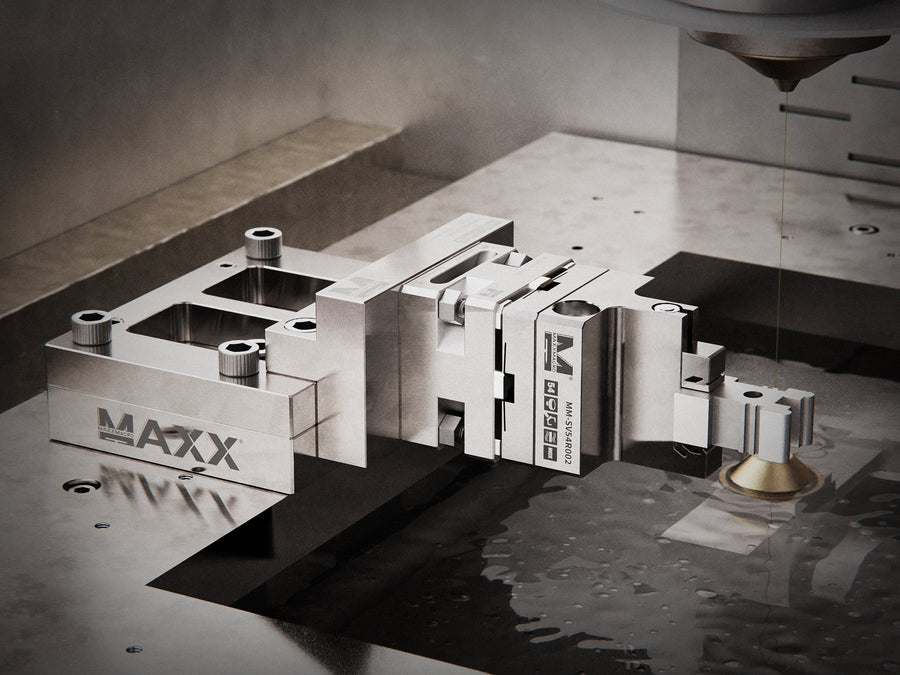

A customer encountered a clearance issue when using a standard MaxxMacro® 54 Super Vise WEDM on a Wire EDM machine. The vise interfered with the machine's lower head, creating a risk of collision during machining.
To address this challenge, MaxxTooling modified the existing vise to create a more compact design that provided the necessary clearance. This custom solution allowed the customer to avoid interference with the lower machine head while maintaining a workholding configuration suited to the application.
Application challenge: Interference between the lower head of a WireEDM machine and the Super Vise.
Custom solution: Modify the vise so that the vise screw and nut do not protrude from the vise body.
Result: The modified MaxxMacro® 54 Super Vise Compact for WEDM, which is now part of our active catalog.
Success Case Study 2: Horizontal Vee Holder
A customer needed a workholding solution capable of securely positioning a component horizontally while providing the required support for machining. The existing setup included a MaxxMacro Ruler System, but it lacked the capability to hold the workpiece horizontally for machining.
To solve this challenge, MaxxTooling modified an existing MaxxMacro® Vee holder Vise for WEDM, adding the capability to position the workpiece horizontally. This modification expanded the vise's versatility, allowing the customer to accommodate the required workpiece orientation while maintaining compatibility with the existing workholding system.
Application challenge: Inability to mount a large cylindrical part in the horizontal position to be machined in Wire EDM.
Custom solution: Modify the Vee Holder vise so that the workpiece can be clamped in a horizontal position.
Result: Custom MaxxMacro® Vertical Vee holder Vise for WEDM, which is now part of our active catalog.
Success Case Study 3: Custom Round Holders
A customer faced challenges when using EDM to machine a specific feature on a component because conventional round holders restricted access to the target surface. The existing setup also presented a risk of collision between the machine and the workpiece, potentially causing serious damage.
To address these issues, MaxxTooling designed a custom aluminum round holder with an extended geometry and strategically modified sections to provide the necessary machining access while avoiding collisions. This tailored solution allowed the customer to reach the required surface while accommodating the workpiece's geometry and the application's machining requirements.
Application challenge: Inability to reach the surface of a component to be machined in EDM
Custom solution: Develop a custom round holder that provides the necessary machining access while preventing machine collisions.
Result: Custom aluminum round holder with an extended geometry and strategically modified sections to provide the necessary machining access while avoiding collisions.
This custom holder was developed for a specific application and is not part of MaxxTooling's standard product catalog.
Success Case Study 4: Custom Adapter Plate for MaxxMagnum Manual Chuck
A customer needed to integrate a MaxxMagnum Manual Chuck into a specific machine, but the existing mounting configuration did not match the machine's requirements. To solve this challenge, MaxxTooling designed a custom adapter plate to connect the chuck to the customer's machine.
This tailored solution provided the required mounting interface, allowing the MaxxMagnum Manual Chuck to be integrated into the existing setup while accommodating the machine's specific configuration.
Application challenge: Inability to install a MaxxMagnum Manual Chuck on a 5-axis machine due to a mismatch between the chuck's mounting pattern and the machine table's bolt pattern.
Custom solution: Design a custom adapter plate to match the chuck's interface to the customer's machine.
Result: Custom stainless steel adapter plate to mount the MaxxMagnum Manual Chuck onto the customer's 5-axis machine, matching the machine table's bolt pattern.
This custom holder was developed for a specific application and is not part of MaxxTooling's standard product catalog.
Conclusion:
Custom workholding provides a way to address manufacturing challenges that standard fixtures may not be designed to handle. By considering part geometry, clamping requirements, machine access, and the intended machining process, a purpose-built fixture can provide a more suitable interface between the workpiece and the manufacturing operation.
From compact vises to specialized holders, MaxxTooling's Custom Workholding Solutions service combines engineering and CAD/CAM modeling to develop fixtures around specific applications. When your workholding requirements go beyond standard configurations, the process starts with understanding the part and designing a solution around the way it needs to be manufactured.
FAQs
What is precision workholding and why is it important in CNC machining?
Precision workholding is a system used to securely locate and hold a workpiece while maintaining a controlled and repeatable reference during machining.
Workholding affects how accurately a component can be positioned, how rigidly it is supported, and how consistently it can be machined between operations.
What are custom workholding solutions?
Custom workholding solutions are fixtures, vises, holders, and clamping components designed for specific workpieces, machining operations, or machine configurations when standard products do not meet the application's requirements.
When should you use a custom workholding fixture?
A custom fixture may be appropriate when standard workholding cannot provide the required clamping arrangement, workpiece orientation, machining access, clearance, or mounting compatibility.
What information is needed to design a custom workholding solution?
Technical drawings or CAD models, workpiece material, machining process, machine configuration, and the specific workholding challenge help define the design requirements.
What is 5-axis workholding?
5-axis workholding is designed to secure a component while providing sufficient tool clearance for machining multiple faces and complex geometries from different orientations.
Can the same workholding system be used for milling and EDM?
Some modular reference systems can be configured for multiple processes, allowing compatible workholding interfaces to be used across milling, EDM, Wire EDM and inspection workflows.
How does workholding affect machining accuracy?
Workholding influences positioning, rigidity, vibration, deformation and repeatability. It cannot compensate for every machine, tooling or process error, but it is an important part of the overall machining system.
What brands does MaxxTooling carry and what OEMs are they compatible with?
MaxxTooling offers a range of precision workholding solutions under the MaxxMacro® and Maxx-ER brands. For larger workpieces, the product lines are available as MaxxMagnum and MaxxUPC, respectively.
MaxxMacro® / MaxxMagnum — Compatible with System 3R.
Maxx-ER / MaxxUPC — Compatible with EROWA ITS.
MaxxZPS — Compatible with LANG and 5th-Axis
