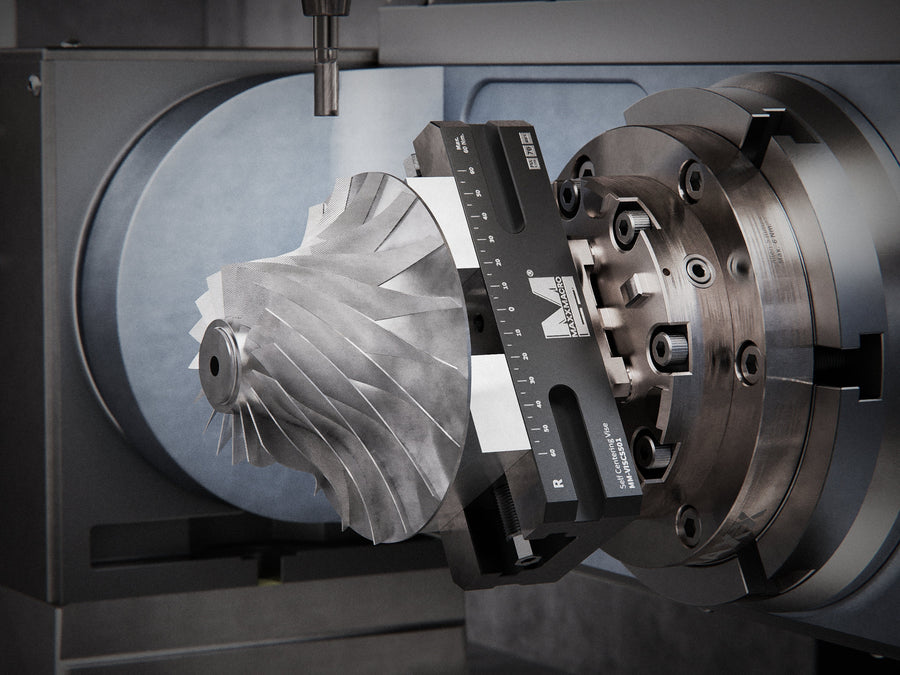

MaxxTooling Self-Centering Vises for CNC Milling: Improving Workholding Precision and Setup Efficiency

What Is a Self-Centering Vise?

A self-centering vise is a precision workholding device designed to move both jaws simultaneously toward the centerline of the vise. Unlike conventional vises, where one jaw remains fixed while the other moves independently, a self-centering vise clamps the workpiece symmetrically from both sides.



This design provides several important advantages for CNC machining operations:

  • Automatic workpiece centering
  • Improved setup repeatability
  • Reduced operator alignment errors
  • Consistent datum positioning between operations
  • Better machining stability

Self-centering vises are commonly used in:

  • 3-axis and 5-axis CNC milling
  • High-precision mold manufacturing
  • Production machining
  • Automated machining cells
  • Multi-part fixturing environments

Because the part remains centered during clamping, machinists can achieve greater accuracy, faster setups, and more consistent machining results.
Maxx Tooling offers a wide variety of Self Centering Vise, compatible with different systems, and in different sizes, to suit all your needs.

Why Is Self-Centering Workholding Important in Milling?

In CNC milling, positional consistency directly affects machining accuracy, surface finish quality, and overall production efficiency. Even small alignment variations can create dimensional errors, increase setup verification time, and reduce process reliability.

MaxxTooling Self-centering workholding systems improve milling performance in several ways.

  • Improved Repeatability

    Because the workpiece automatically centers relative to the vise body, operators can achieve highly repeatable setups across multiple batches and machine changes.

  • Better Process Control

    Consistent centering simplifies CAM programming, probing routines, and fixture offsets, especially in multi-axis machining applications.

  • Reduced Setup Time

    Operators spend less time manually aligning stock material, reducing downtime and improving spindle utilization. This is especially valuable in short-run production and high-mix manufacturing.

  • Enhanced Surface Finish

    Balanced clamping pressure improves rigidity and minimizes micro-movement during aggressive cutting operations, helping reduce chatter and improve surface finish quality.

  • Greater Automation Compatibility

    Robotic loading systems rely on predictable positioning. Self-centering vises provide a repeatable reference point that supports automated and lights-out machining environments.

    For manufacturers focused on machining consistency, process reliability, and spindle uptime, modern self-centering workholding systems can significantly improve operational efficiency.

What are the drawbacks of conventional workholding in Machining vs Self Centeging Vises?

As machining tolerances become tighter and production efficiency becomes more critical, many machine shops discover that traditional vises create limitations in precision, setup consistency, and tool accessibility.
The comparison below highlights common machining challenges and how self-centering vises improve milling performance.



 Machining Factor

Conventional Workholding

Self-Centering Vises

Vibration and Workpiece Stability

 Uneven clamping pressure can allow slight workpiece movement during aggressive cutting, increasing chatter and reducing surface finish quality. Symmetrical clamping distributes force evenly across the workpiece, improving rigidity, reducing vibration, and enhancing machining stability

Alignment and Datum Consistency

 Operators often manually indicate or align parts, increasing setup variability and positioning errors. The workpiece automatically centers on the vise axis, improving repeatability and maintaining consistent datum locations.

Setup Time

 Manual positioning and alignment increase machine downtime and operator intervention. Faster loading and automatic centering reduce setup time and improve spindle utilization.

Tool Accessibility

 Larger vise bodies and tall jaws can restrict cutter access, especially in 5-axis machining. Compact, low-profile designs improve tool clearance and reduce interference risks.

Multi-Axis Machining Capability

 Conventional vises may limit rotational movement and create collision risks during simultaneous multi-axis operations. Self-centering vises maximize A-axis and B-axis clearance for greater machining flexibility.

Repeatability in Production

 Position consistency may vary between operators and setups. Consistent centering improves repeatability across batches and automated workflows.

Automation Compatibility

 Manual alignment requirements complicate robotic loading and unattended machining. Predictable positioning supports robotic automation and lights-out manufacturing.



What Basic Self Centering Vise Configurations Does MaxxTooling Offer?

MaxxTooling offers a versatile, high-performance range of Self-Centering Vises designed to deliver maximum rigidity, absolute repeatability, and unmatched efficiency in demanding CNC environments. Engineered for flexibility, our self-centering lineup includes MaxxMacro® and Maxx-ER compatible vises, providing a robust yet compact workholding solution that effortlessly adapts to both small and complex workpieces.


To ensure seamless integration with your existing automation and tooling setups, all MaxxTooling Self-Centering Vises are engineered to fit our premier modular base systems:







These modular systems allow machinists to seamlessly adapt their workholding setups to varying machining requirements, forward-thinking automation strategies, and complex fixture layouts, all while maintaining the strict precision and heavy-duty clamping stability your shop demands.



What types of accessories for Self Centering Vise does MaxxTooling provide?

One of the major advantages of modular workholding systems is the ability to configure the vise for specific machining applications.


Low-Profile Jaws

MaxxTooling Low-Profile Jaw 80 mm and MaxxTooling Low-Profile Jaw 46 mm improve cutter accessibility and reduce interference during 5-axis machining.

Benefits include:

  • Better angular clearance
  • Reduced collision risk
  • Improved tool rigidity
  • Greater machining flexibility

These jaws are ideal for aerospace, medical, and complex contour machining applications.

Aluminum Soft Jaws

MaxxTooling Aluminum Soft Jaws allow machinists to create custom gripping surfaces for delicate or irregular components.

Advantages include:

  • Custom machinable profiles
  • Reduced part marking
  • Better support for thin-wall parts
  • Improved grip consistency

Soft jaws are especially useful for:

  • Prototype machining
  • Short-run production
  • Complex geometries

Middle Jaw

The MaxxTooling Middle Jaw enables multiple-part clamping within a single setup.

This configuration improves throughput by:

  • Machining multiple components simultaneously
  • Reducing setup changes
  • Improving machine utilization

For production machining environments, this can significantly improve cycle efficiency.

Vise Stop

The MaxxTooling Vise Stop provides a repeatable loading position for raw material or semi-finished components.

Benefits include:

  • Faster loading
  • Improved setup consistency
  • Reduced operator variability
  • Better repeatability in batch production

Vise stops are especially valuable in semi-automated and lights-out machining operations.

How to keep your MaxxTooling Self Centering Vise running for decades?

Downtime caused by worn or damaged workholding components can quickly impact production schedules and machining efficiency.

Maintaining replacement components such as:

Helps ensure uninterrupted production and consistent machining performance.

One of the key advantages of modular workholding systems is that operators can replace individual components instead of replacing the entire vise assembly. This reduces maintenance costs and minimizes machine downtime.

MaxxTooling also provides technical support, replacement information, and maintenance guidance to help manufacturers maintain reliable CNC workholding performance.

Conclusion

As machining tolerances become tighter and manufacturers demand greater production efficiency, precision workholding systems play an increasingly important role in CNC machining success.

Self-centering vises help solve common machining challenges by improving:

  • Repeatability
  • Stability
  • Setup speed
  • Tool accessibility
  • Multi-axis machining capability
  • Automation readiness

For machine shops focused on precision milling, process consistency, and reduced downtime, modular self-centering workholding systems provide a strong foundation for long-term manufacturing efficiency.

With modular configurations such as MaxxMacro® and Maxx-ER, MaxxTooling offers flexible CNC workholding solutions designed to support modern machining environments while maximizing spindle uptime, repeatability, and machining performance.



To request our Self Centering MaxxVise catalog or to contact our team directly, reach out today via the website chat at the bottom of the page or by email to  sales@maxxtooling.com
