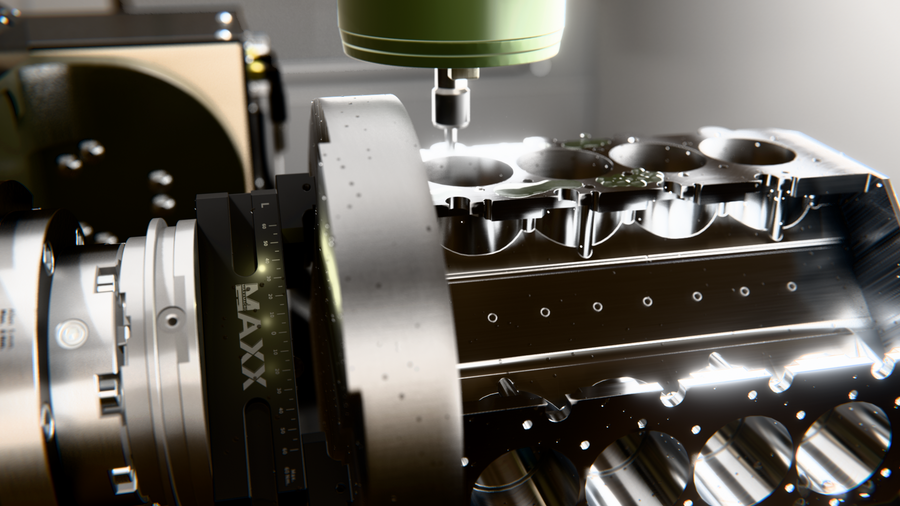

How to Machine a Scale V8 Engine Block with MaxxMacro Workholding

How to Machine a Scale V8 Engine Block with MaxxMagnum Workholding?

Machining a scale V8 engine block is one of the most challenging projects for any CNC programmer or machinist. The part contains multiple machining operations, requires excellent accuracy, and often demands several setups if the workholding solution is not optimized.

With the right MaxxMagnum workholding configuration, however, most of the machining process can be completed in a single setup on a 5-axis machining center. This significantly reduces setup time, improves accuracy between operations, and increases productivity.

In this guide, we'll walk through the complete machining process while showing how MaxxMagnum's workholding solutions simplify every stage of the project.

What MaxxMagnum setup is recommended for 5-axis machining?

The ideal setup for machining a scale V8 engine block combines the MaxxMagnum 680.24-S Manual Chuck Low Profile (MM-MGMPS001-TR210) with the MaxxMagnum Stainless Self Centering Vise 80x120mm (MM-VISCS502).

This configuration provides:

• Excellent rigidity for aggressive roughing operations
• Precise self-centering clamping
• Maximum accessibility for 5-axis machining
• Minimal interference between the vise and cutting tools
• Reduced setup changes throughout the entire process
• Maximum versatility thanks to the accessories available for the Self Centering Vise

Can MaxxTooling Adapt the MaxxMagnum Chuck to My Machine?

Absolutely.

Every machine has its own table interface, and MaxxTooling can manufacture custom adapter plates that allow the MaxxMagnum workholding system to fit your specific machine.

We already offer custom adapters for many popular machining centers, such as:

• MaxxMagnum 680.24-S Manual Chuck Low Profile Table Haas TRT160 (MM-MGMPS001-TRT160)
• MaxxMagnum 680.24-S Manual Chuck Low Profile Table Haas TR210 (MM-MGMPS001-TR210)

If you have any other machine, our engineering team can Design a Custom Solution specifically for your application.

Why Is a Dovetail Workholding the Best Choice for 5-Axis Machining?

A dovetail interface is the best strategy for 5-axis machining. It clamps the workpiece by a minimal tab at the base, leaving 5 full sides open for cutting tools. The wedge action provides maximum clamping force, allowing the part to withstand high cutting loads without slipping or vibrating.


What Are the Benefits of Using Dovetail Workholding?

• Machine More Sides in One Setup

  Dovetail workholding provides excellent tool access, making it ideal for 4-axis and 5-axis CNC machining while reducing the number of setups required.

• Increase Stability and Accuracy

  The dovetail design applies both downward and inward clamping force, delivering exceptional rigidity, repeatability, and machining precision with minimal clamping torque.

• Reduce Material Waste

  Because only a small dovetail feature is required for clamping, more of the raw stock can be used as the finished part, reducing waste and machining costs.

• Prevent Part Distortion

  Evenly distributed clamping forces reduce deformation compared to conventional workholding methods, protecting dimensional accuracy during machining.

• Speed Up Production

  A quick dovetail preparation operation enables faster setups, shorter cycle times, and higher productivity throughout the machining process.

• Support a Wide Range of Materials

  Dovetail workholding securely clamps everything from aluminum and steel to graphite and high-temperature alloys, making it suitable for many CNC applications.

Step-by-Step Preparation for dovetail:

1. Pre-op in a 3-Axis Mill: Clamp the raw block in a standard vise on a basic 3-axis machine.
2. Mill the Dovetail Profile: Cut the angled profile at the base using a dovetail cutter matching your jaw geometry (60° for our system).
3. Control Depth and Clearance: Maintain exact dovetail depth so the block locates firmly on the top surface of the jaws, never on the bottom step.

This quick 3-axis prep makes the raw block 100% ready for aggressive 5-axis milling.

Contact our team to request the technical drawing with complete dovetail dimensions and tolerances for your stock prep.

How Many Machining Operations Can Be Performed in a Single MaxxMagnum Setup?

With this MaxxMagnum setup, manufacturers can complete up to 90% of machining operations in a single setup without changing the workholding.

One unique advantage of our jaws is that both sides include the dovetail profile, and if additional machining clearance or tolerance adjustments are required, the jaws can simply be inverted without changing the workholding.

Which operations can I perform in this setup?

1. Stock Setup & Workpiece Probing
2. Roughing & Primary Body Shaping
3. Cylinder Bores & Hole Drilling
4. Semi-Finishing & Deep Pocketing

By minimizing setup changes, the system reduces machine downtime, improves machining efficiency, and maintains consistent part accuracy throughout the process.

Why Are Soft Jaws Used to Clamp Complex Surfaces?

Eventually, some features require access to surfaces that cannot be reached while the dovetail is still being used.

For these final operations, machined soft jaws are the ideal solution.

The MaxxVise Aluminum Soft Jaws (MX-VIACA502) are custom-machined to match the exact geometry of the partially finished engine block, providing maximum support while protecting delicate finished surfaces.

Once the soft jaws have been machined, it is possible to turn/reposition the engine block to finish the side with the dovetail.

How Can You Expand Your MaxxMagnum Workholding Setup?

MaxxTooling offers a complete range of accessories designed to maximize the performance and versatility of the MaxxMagnum Self-Centering Vise. From interchangeable jaws to dedicated workholding components, our solutions help optimize every CNC machining setup for greater precision, flexibility, and productivity.

Want to learn more about our Self-Centering Vises? Explore our comprehensive guide to discover how the MaxxTooling Self-Centering Vise system improves setup efficiency, reduces workholding changes, and increases machining accuracy.

Conclusion

Machining a scale V8 engine block requires precision, rigidity, and an efficient workholding strategy.

By preparing a dovetail on the raw material and combining it with the MaxxMagnum Self-Centering Vise, manufacturers can complete nearly the entire machining process in a single 5-axis setup.

The result is:

• Fewer setups
• Higher accuracy
• Greater machining efficiency
• Improved tool accessibility
• Reduced production time

When the project reaches its final machining stages, custom soft jaws provide the perfect solution for securely holding complex geometries while protecting finished surfaces.

Whether you're producing prototypes or high-precision components, MaxxTooling workholding systems help maximize the capabilities of your CNC machine.

To request our Self Centering MaxxVise catalog or to contact our team directly, reach out today via the website chat at the bottom of the page or by email to  sales@maxxtooling.com
