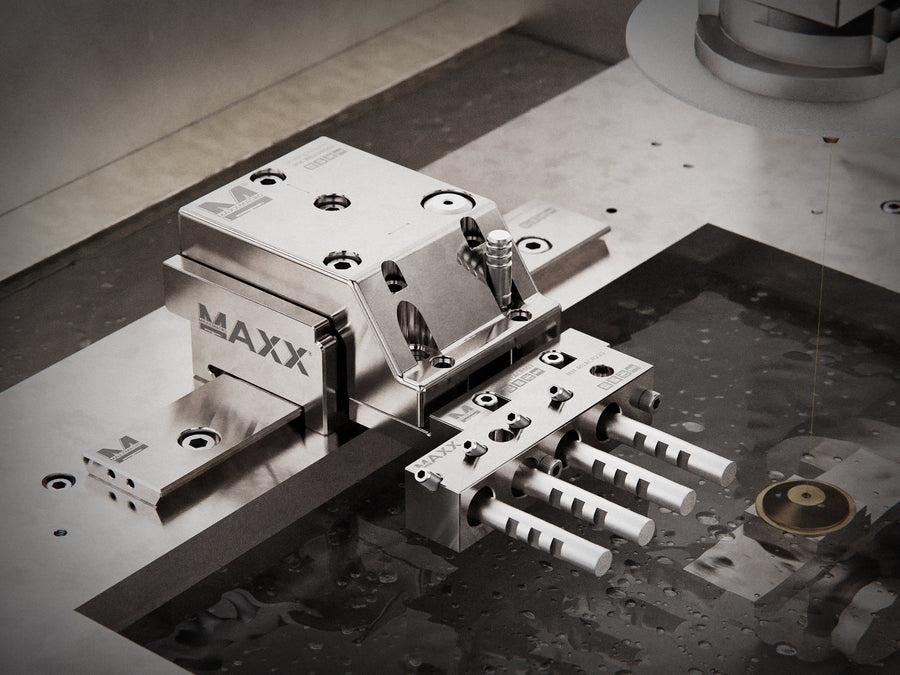

How Precision MaxxMacro® Wire EDM Workholding Maximizes Accuracy and Efficiency

What is Wire EDM?


Wire EDM (Electrical Discharge Machining) is one of the most precise manufacturing processes available for producing complex geometries, tight tolerances, and intricate features in hardened conductive materials. Unlike conventional machining, Wire EDM removes material through controlled electrical discharges rather than mechanical cutting forces, making it ideal for mold making, tooling, aerospace components, medical parts, and high-precision manufacturing. Recent industry sources highlight that Wire EDM excels in producing complex profiles, narrow slots, sharp internal features, and micron-level accuracy while eliminating mechanical stress on the workpiece.
However, even the most advanced Wire EDM machine can only perform as accurately as the setup holding the part. Stable, repeatable workholding is essential for maintaining positioning accuracy throughout milling, grinding, inspection, and EDM operations.
This is where MaxxMacro® Wire EDM Workholding Systems provide a significant advantage.

What is the difference between Direct Mounting and MaxxMacro® Wire EDM System?

Choosing between a direct mounting setup and a MaxxMacro® Wire EDM setup is an important decision in Wire EDM workholding. While both approaches provide stable support for machining operations, they are designed to address different production priorities. Direct mounting is often selected for maximum rigidity and available cutting space, whereas MaxxMacro® Wire EDM System focus on repeatability, setup efficiency, and process standardization. The following comparison highlights the key differences between these two approaches and the advantages that a MaxxMacro® Wire EDM System can provide in modern Wire EDM environments.

 Feature

MaxxMacro® Wire EDM System

Direct Mounting

Setup Time

Faster setup through repeatable positioning and reduced indicating.

Longer setup because workpieces often require individual alignment and indicating.

Repeatability

Excellent repeatability from job to job and machine to machine.

Depends on operator setup and alignment accuracy for each job.

Machine Datum Consistency

Provides a standardized datum structure that remains constant.

Datum may need to be re-established for each setup.

Multi-Machine Standardization

Enables consistent setups across multiple Wire EDM, EDM and Milling machines.

Limited standardization between machines.

Job Changeover Time and Process Control

Faster changeovers due to predefined reference locations. Higher process consistency and reduced setup variation.

Slower changeovers due to repeated setup procedures. Greater dependence on operator technique and setup practices.

Rigidity

High rigidity while maintaining repeatable referencing.

High rigidity with the shortest force path.


What solutions does MaxxMacro® offer for Wire EDM?

The MaxxMacro® Wire EDM System consists of three sub-systems: the renowned MaxxMacro® MXRuler (1), the MaxxMacro® Mounting Head (2) and the MaxxMacro® Chucks (3). Each sub-system includes a wide range of accessories that allow for the secure mounting of various workpiece shapes and sizes. These components are also cross-compatible through different adapters and connection methods, providing excellent versatility.



How does the MaxxMacro® MXRuler work? (1)

The MXRuler system is designed for clamping medium to large workpieces in machines with parallel, U-shaped, or full-frame tables. Each ruler includes built-in height adjustment and can be used individually or in pairs. The system allows for safe and precise positioning of rectangular or round workpieces—whether lightweight or heavy—directly on the machine's zero line, without risk of collision.

What makes the MXRuler versatile?

The MXRuler is a flexible workholding solution designed to support a wide range of machining setups. It is compatible with multiple accessories, allowing users to adapt the system to different workpiece sizes, applications, and production requirements.

The MXRuler is available in:

  • MM-RU60Rxxx (from 275 mm. to 525 mm. in length)
  • MM-RU86Rxxx (from 545 mm. to 875 mm. in length)
  • MM-RU86Rxxx Double-Sided Ruler (445 mm. and 645 mm.)

Does the MXRuler support external presetting?

Yes. The MXRuler supports external presetting, enabling operators to mount workpieces on a single or double ruler outside the machine. The fully assembled unit can then be quickly loaded into position, reducing machine downtime and improving setup efficiency.

How can the MXRuler be mounted?

The MXRuler offers two mounting options:

What are the benefits of slidable clamps?

The optional slidable clamps allow the MXRuler to be positioned anywhere along the full length of the machine table equipped with the MaxxMacro® Reference Elements. This provides greater flexibility for accommodating different workpiece dimensions, optimizing setups, and adapting to changing production needs.

Which accessories does the MXRuler System offer?

MaxxMacro® MXRuler accessories (MM-RUACRxxx) expand the capabilities of the MaxxMacro MXRuler system. The versatility of this platform is extensive. These accessories are mounted directly into the front-facing mounting holes of the MXRuler, while others are designed for installation on the machine table or reference elements, working seamlessly with the rulers. Some of the accessories we offer include, but are not limited to:

Key Benefits of the MXRuler

  • Adapts easily to various workpiece sizes and machining setups
  • Compatible with a wide range of accessories
  • Supports fast and efficient external presetting
  • Offers flexible mounting options
  • Allows adjustable positioning along the machine table

Which MaxxMacro® MXRuler Kits do we offer?

For users looking to expand the MXRuler system, we recommend the following kits:


How do the MaxxMacro® Mounting Heads work? (2)

MaxxMacro® Leveling Heads are precision workholding components designed to simplify setup, improve machining stability, and increase accuracy in high-speed manufacturing environments. They enable operators to preset workpiece positions outside the machine, significantly reducing setup time while maintaining micron-level precision.

How Are MaxxMacro® Mounting Heads Mounted?

MaxxMacro® Mounting Heads can be mounted in three primary ways:

How Do MaxxMacro® Mounting Heads Improve Setup Efficiency?

MaxxMacro® Mounting Heads allow users to preset three axes outside the machine in seconds, using the MaxxMacro® Presettings Stones. Once the setup is complete, the workpiece can be transferred into the machine while maintaining precise positioning, helping reduce machine downtime and increase productivity.

MaxxMacro® offers two types of Presetting Stones:

Which accessories do MaxxMacro® Mounting Heads offer?

The MaxxMacro® Mounting Head Accessories (MM-WEVIRxxx) are components designed to work seamlessly with the mounting heads. They mount directly onto the leveling heads, expanding functionality and enabling a wide range of workholding and setup configurations for WEDM and precision machining applications.

Key Benefits

  • Direct integration with MaxxMacro Leveling Heads
  • Flexible and modular setup configurations
  • Enhanced workholding functionality
  • Fast adaptation to different machining requirements
  • Maintains precision, stability, and repeatability
  • More than 13 different accessories available

Which MaxxMacro® Mounting Head Starter Kits Are Recommended?

For users looking to get started with the MaxxMacro Mounting Head system, we recommend the following kits:

Why Choose the MaxxMacro Chuck System for More Than Traditional Wire EDM Applications? (3)

While rulers and leveling systems provide excellent support for many applications, modern manufacturing often requires transferring workpieces between multiple processes.

A mold component may move through:

  1. Milling
  2. Grinding
  3. Sinker EDM
  4. Wire EDM
  5. Inspection

The MaxxMacro® Chuck System enables these transfers while maintaining a common reference structure throughout the entire manufacturing cycle.

Several MaxxMacro® 54 and 70 series chucks are specifically designed for Wire EDM operations. These models feature corrosion-resistant, rust-proof internal mechanisms, making them ideal for submerged environments.

This provides several advantages:

  • Reduced setup time
  • Improved positional accuracy
  • Lower risk of handling errors
  • Increased process consistency

Equipped with horizontal mounting plates and optional tilt adjustment features, these chucks allow for quick and secure mounting of any MaxxMacro® fixture over your machine's zero line, making them a reliable and versatile solution for Wire EDM setups. Some of the chucks we offer include, but are not limited to:

Adapters Between Systems and Accessories (4)

No two manufacturing environments are identical.

Many shops operate a combination of legacy tooling, OEM systems, custom fixtures, and newer workholding platforms. Rather than forcing complete tooling replacement, adapters allow users to integrate MaxxMacro® technology into existing production environments.

MaxxMacro® adapters provide the bridge between these systems:

From MaxxMacro® Mounting Heads to MXRulers Accessories:

From MaxxMacro® Mounting Head to MaxxMacro® Accessories:

From MaxxMacro® MXRuler to MaxxMacro® Mounting Head Accessories:

From MaxxMacro® Reference Elements to MaxxMacro® Accessories:


Conclusion

The MaxxMacro® Wire EDM clamping platform is more than a collection of products—it is a complete, reference-based workholding strategy designed to improve accuracy, flexibility, and efficiency.

The Reference Element establishes a stable machine datum. The Mounting Head enables fast, external presetting for reduced machine downtime. The MXRuler provides adaptable positioning for different workpiece sizes, from medium to large components. The Macro Chuck System delivers reliable interchangeability between machines and manufacturing processes. Adapters and accessories seamlessly connect every element into a unified workflow.

By standardizing on the MaxxMacro® system, manufacturers can reduce setup time, improve repeatability, minimize machine idle time, and increase Wire EDM productivity. For precision tooling and mold manufacturing applications, this integrated workholding approach helps achieve consistent results and greater operational efficiency.
