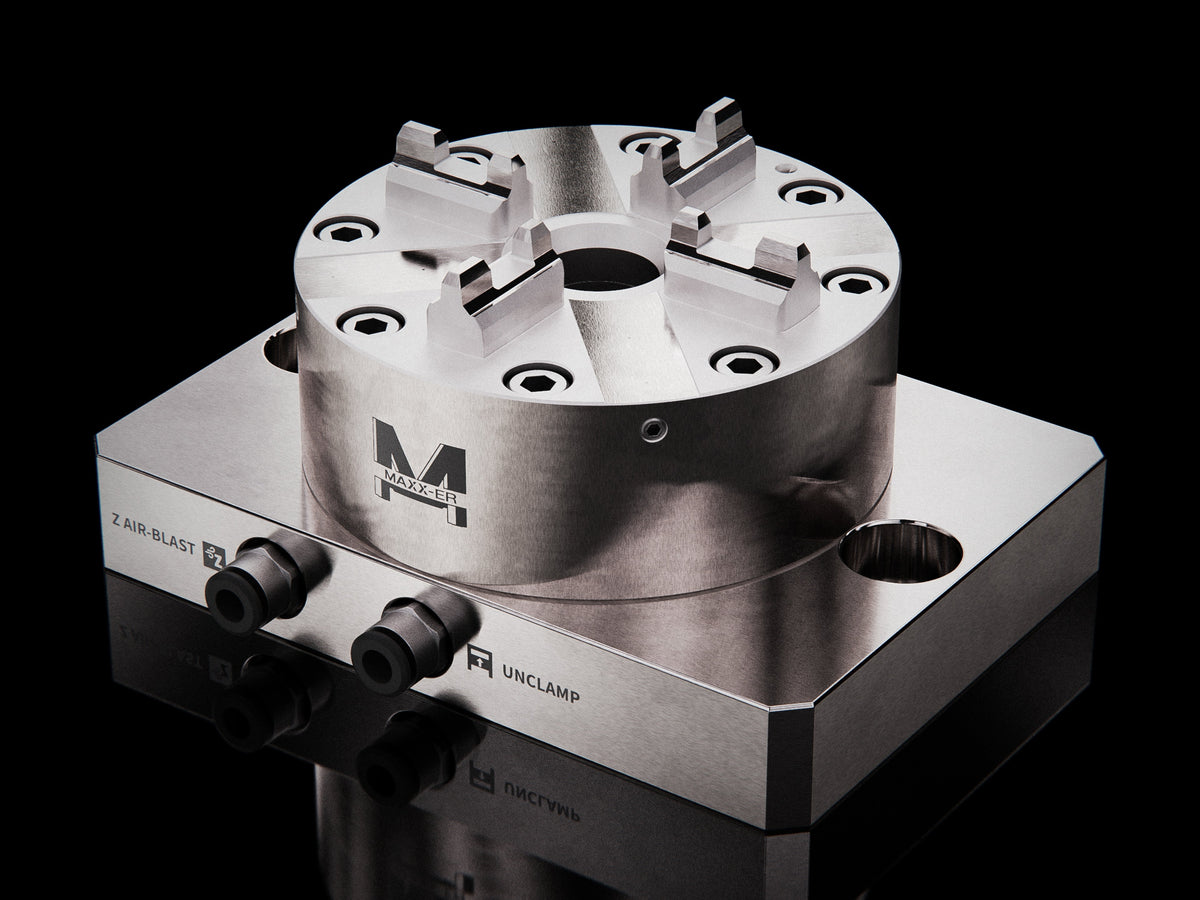

How do I replace the internal mechanism of a Maxx-ER Rapid Action Pneumatic Chuck?

Use the repair kit that matches your Maxx-ER Rapid Action chuck. Identify the chuck and kit before dismantling it, then follow the assembly video and the instructions supplied with the kit.

Work on a clean bench with the chuck isolated from its air supply. Keep the components in assembly order, inspect the parts that are being retained, and check the completed chuck's operation before returning it to service. Contact MaxxTooling if you cannot confirm the model or the correct kit.

View the standard repair kit
View the rust-proof repair kit
Watch the assembly video
