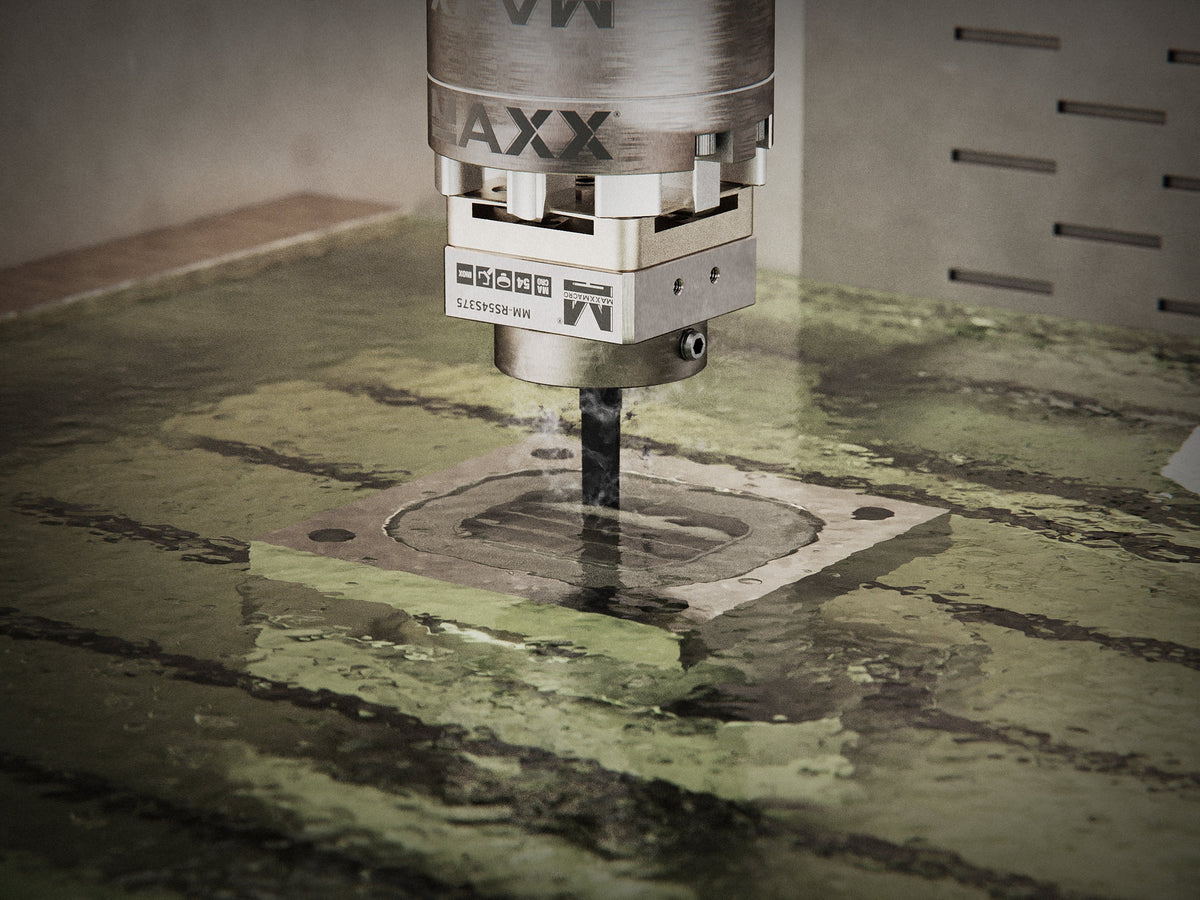

How do I equip an EDM machine with a MaxxMacro workholding system?

Start by selecting a chuck and mounting arrangement that match the machine spindle, table, and required C-axis functionality.

Spindle or machine-adapted options include the MaxxMacro (OEM 100% cross-compatible) 70 SP7359 Pneumatic Chuck, the MaxxMacro 70 Spindle Chuck 90957 80mm, and the MaxxMacro 70 Pneumatic Chuck 600.86-3 Machine-Adapted WEDM. For a table-mounted setup, manual or pneumatic chucks with an adjustable base are available.

If you prefer not to use the machine’s C-Axis, or it is not required, you can remove or disable it and mount a manual or pneumatic MaxxMacro chuck in its place. This eliminates C-Axis capabilities, but it’s a common and practical solution in many setups

Send MaxxTooling the machine model and mounting details to confirm the configuration. If a proposed installation would remove or disable the C-axis, confirm the resulting loss of that function before selecting the setup.

For Wire EDM WEDM, check that the selected version is suitable for the intended dielectric exposure.

SP7359 chuck
Spindle chuck 90957
Machine-adapted chuck
Manual adjustable base
Pneumatic adjustable base
