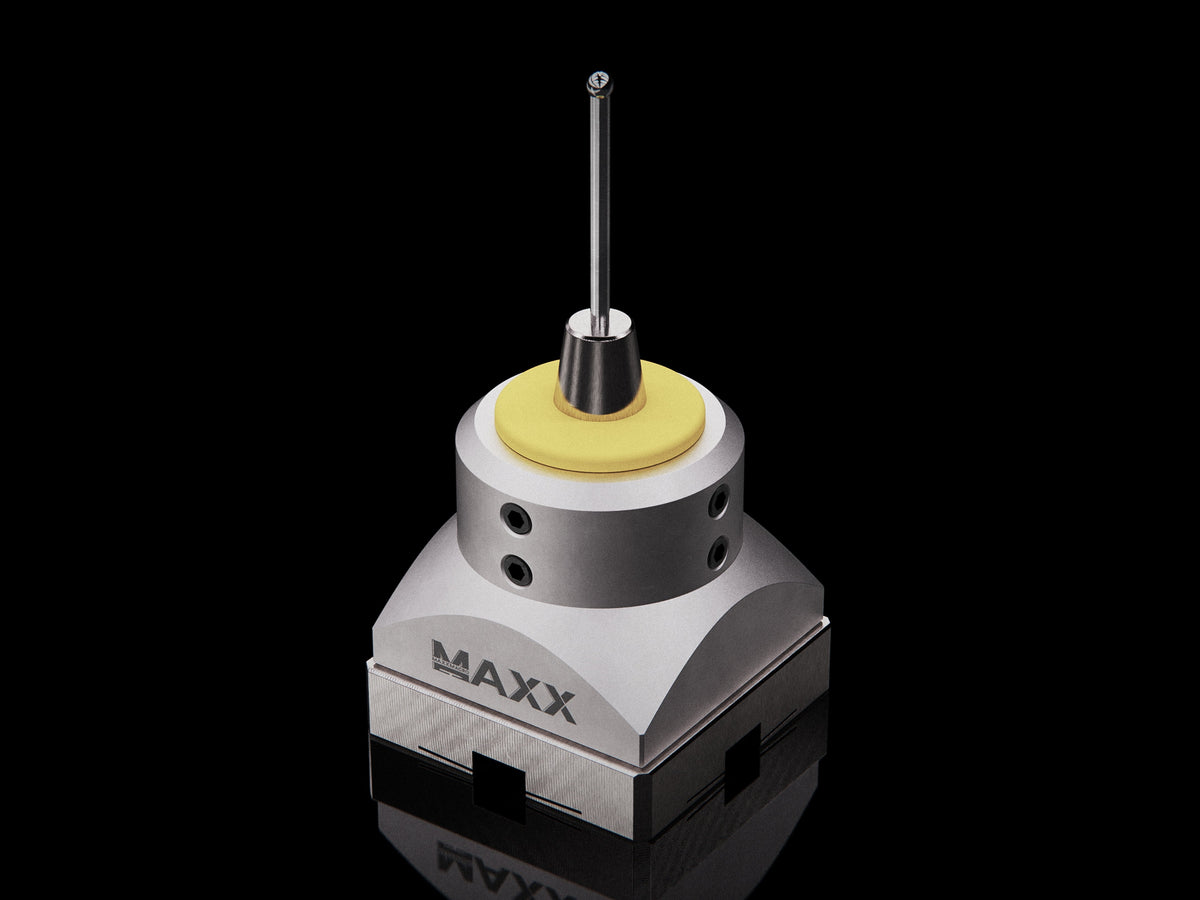

How do MaxxTooling stationary probes detect position in EDM applications?

MaxxTooling stationary probes detect position through direct electrical contact between the probe tip and the workpiece in an EDM measuring cycle. They have a rigid body and tip.

Align the probe and check concentricity before measurement. A spring-loaded probe uses the same contact principle with limited compliance to protect against overtravel; a stationary probe does not provide that compliance.
