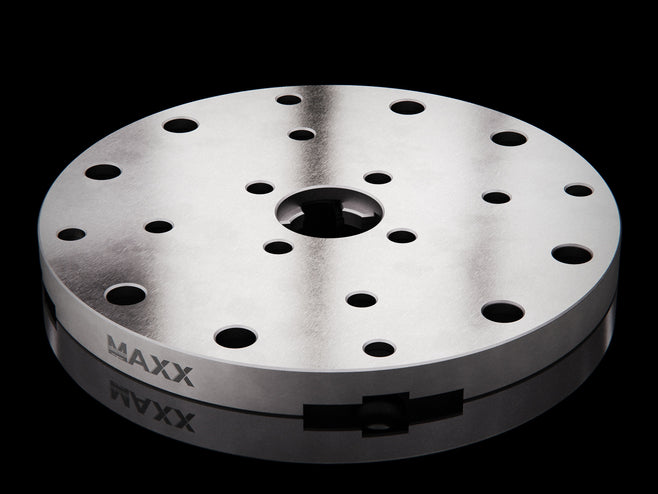

MaxxMagnum 142 Pallet MM68171 Reference Element comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. MaxxDesign Exclusive Features:...
MaxxMagnum 142 Pallet MM68171 Reference Element comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system.
MaxxDesign Exclusive Features:
High quality materials.
100% cross-compatible with OEM system
Product Information:
MaxxMagnum MM68171 Reference Element Pallet Ø142 mm- MaxxPerformance is 100% cross compatible with System 3R Magnum products, 3R-681.71 142MM Magnum Pallet.
MaxxMagnum Magnum Reference Pallet is machined from solid S136 Stainless and rockwell is HRC 43~45, for superior performance and rigidity. This is a high performance pallet
Rust Resistant hardened pallet, This is not a Cast pallet
Product Details:
Product Name
MaxxMagnum 142 Pallet MM68171 Reference Element
SKU
MM-PA42S001 (MX-MM68171)
Pallet Included
See print
System
MaxxMacro (System 3R 100% Cross-Compatible)
Repeatability
0.002mm
Material
See above
Cross-Compatible
3R-681.71
Dimensions
-
Weight
-
Returns Policy
You may return most new, unused items within 30 days of delivery for a refund. There is a 20% restock fee if the item is returned due to customer error. The customer is responsible for the return shipping costs if the return is a result of your error (Not if received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the 'Complete Orders' link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Shipping
We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.
When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.
Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.
International shipments it is the customers responsibility to determine if there are any taxes or import duties payable and to make arrangements to clear and pay these fees if applicable.
In our latest video showcase, we're thrilled to present the MaxxMagnum 5-Axis Setup – a game-changer in the realm of precision machining. This setup embodies the pinnacle of engineering excellence, offering unmatched versatility and precision for a wide range of machining applications.
Experience Unparalleled Versatility
With the MaxxMagnum 5-Axis Setup, versatility is at the forefront. This advanced tooling system empowers machinists to tackle complex machining tasks with ease, thanks to its multi-axis functionality. Whether you're machining intricate components or sculpting complex geometries, the MaxxMagnum 5-Axis Setup delivers unparalleled performance and precision.
At MaxxTooling, we understand that every machining application is unique. That's why we offer swift customization capabilities to tailor our MaxxMagnum tooling to your specific requirements. Need a customized size, shape, or other modifications? No problem. Our expert team is here to ensure prompt delivery of solutions perfectly aligned with your needs, so you can optimize your machining processes with confidence.
Explore Our Full Range of Products
Ready to elevate your precision machining capabilities? Explore our full range of MaxxMagnum products and discover the perfect tooling solutions for your needs. From end mills to collets, adapters to chucks, we offer a comprehensive selection of high-quality tooling designed to exceed your expectations.
Experience the future of precision machining with MaxxMagnum tooling. Whether you're a seasoned machinist or new to the world of precision manufacturing, our innovative tooling solutions are designed to help you achieve unparalleled levels of accuracy, efficiency, and quality in your machining operations.
Stay tuned for more exciting updates, tutorials, and showcases from MaxxTooling as we continue to push the boundaries of precision engineering and machining excellence.
Table mounted twin MaxxMagnum chucks on a 450x225 common plate with integrated pneumatic system .
We have a customer that is using our MaxxMagnum system for medical part manufacturing and they want the ability to run a wide ranges and sizes of work while utilizing the repeatability and rigidity of our MaxxMagnum System.
In this project our customer requested the ability to run twin MaxxMagnum chucks as individual chucks but with the ability to machine much larger or ganged up workpieces on a universal pallet.
WIDE RANGE VERSATILITY
In the set up the client can machine with 54mm, 70mm, 75Ø, 142Ø pallets, using our custom 420x180 Aluminum pallet with 2 hardened MaxxMagnum reference elements (custom pattern added to pallet as per clients individual needs)
We were also able to create some custom universal mounting pallets on another project using this twin chuck configuration.
To meet this requirement, you could consider designing a custom pallet that is compatible with your MaxxMagnum chucks and can accommodate larger or ganged up workpieces. The pallet should be designed to allow the twin chucks to operate as individual chucks, while also providing the necessary stability and rigidity to ensure repeatability and accuracy.
One approach could be to design a pallet with a series of grooves or slots that allow the workpieces to be positioned and clamped in place using your MaxxMagnum chucks. The pallet could also have built-in stops or reference points to ensure precise positioning and repeatability. This would enable your customer to easily load and unload workpieces from the pallet, while also allowing them to use the full capabilities of your MaxxMagnum system.
Another approach could be to design a modular pallet system that allows your customer to quickly and easily swap out different pallets for different types of workpieces. This would provide even more flexibility and allow them to efficiently switch between different parts and production runs.
Overall, the key is to work closely with your customer to understand their specific needs and requirements and to design a solution that meets those needs while also leveraging the capabilities of your MaxxMagnum system.
CUSTOM MOUNTING
Custom Mounting Grids, ZeroPoint, Lang 52, FCS etc. These can be 100% customized to suit various project. Can also be customized for 3D Printing applications when post machining prior to WEDM is required, Our 420mm pallet are corrosion resistant for the required applications a described
