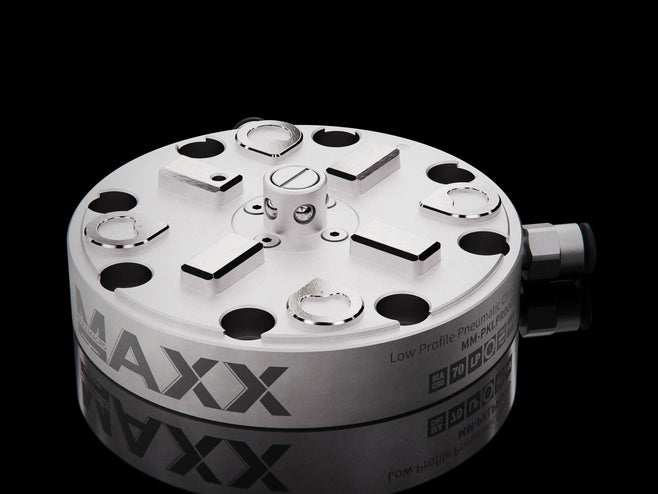

MaxxMacro® (System 3R) 70 Pneumatic Low Profile Chuck 602.81 WEDM Rust Proof Disable Index 1
All Images © 2019-2026 Maxx Tooling All Rights Reserved
SKU: MM-PKLPR000D
SKU copied to clipboard
MaxxMacro
MaxxMacro 70
Corrosion Resistant
Low Profile
Pneumatic
Suited for Submerged

MaxxMacro® 70 Pneumatic Low Profile Chuck 602.81 WEDM Rust Proof Disable Index

£3,623.00 GBP Sale

Excl. VAT, duties, and taxes.

MaxxMacro 70 Pneumatic Low Profile Chuck Rust Proof WEDM Disable Index comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro...
Availablity: In Stock
Availablity: In Stock

£3,623.00
3R-602.81, 3R-602.81RS, 70, Chuck, Chucking, EDM, Index Disabled, Low Profile, MaxxMacro, Milling, Mounting, MX-60281-ID, Pneumatic, Round, Rust Proof, Square, Stainless, System 3R, System 3R Chuck, WEDM
Chuck

MaxxMacro 70 Pneumatic Low Profile Chuck Rust Proof WEDM Disable Index comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. Pneumatic chuck for permanent mounting on the machine table with index-disable feature.

MaxxDesign Exclusive Features:

  • Disable Index system.
  • Full 440C stainless steel construction and rust-proof mechanism.

Product Information:

MaxxMacro Chuck 60281 is a low-profile pneumatic chuck engineered for permanent installation on machine tables in both Wire EDM and CNC machining environments. This chuck features a Disable Index system with a male-female interface that helps prevent contamination from chips and debris. An evacuation hole is located between the two pneumatic ports—always ensure the SSFP (sealing screw flat point) is securely installed to maintain proper sealing and prevent air pressure loss during operation.

Product Specifics

  • Clamping Type: Pneumatic (6 bar)
  • Clamping Force: 6 kN
  • Drawbar required :
    MaxxMacro® (System 3R) 605.10 Automatic Drawbar Low Profile Stainless 1

    MaxxMacro® 605.10 Drawbar Low Profile Stainless

    £28.00 GBP
    MaxxMacro® 605.10 Drawbar Low Profile Stainless
    [MM-DRWBR203]
  • Repair Kit / Replacements:
    MaxxMacro® (System 3R) 70 Pneumatic Chuck 602.81 Internal Repair Kit WEDM Rust Proof 1

    MaxxMacro® 70 Pneumatic Chuck 602.81 Internal Repair Kit WEDM Rust Proof

    £234.00 GBP
    MaxxMacro® 70 Pneumatic Chuck 602.81 Internal Repair Kit WEDM Rust Proof
    [MM-RKPCR002] ,
    MaxxMacro® (System 3R) Pneumatic Chuck 602.81 Shaft Repair Kit WEDM Rust Proof

    MaxxMacro® Pneumatic Chuck 602.81 Shaft Repair Kit WEDM Rust Proof

    £328.00 GBP
    MaxxMacro® Pneumatic Chuck 602.81 Shaft Repair Kit WEDM Rust Proof
    [MM-RKPCR003]

Product Details

  Product Name MaxxMacro® 70 Pneumatic Low Profile Chuck 602.81 WEDM Rust Proof Disable Index
  SKU/Part Number MM-PKLPR000D [Old SKU: MX-60281-ID]
  System MaxxMacro  (System 3R 100% Cross-Compatible)
  Cross-Compatible 3R-602.81, 3R-602.81RS
  System Repeatability 0.002mm
  Material Base: Stainless 440C
  Weight 1.04 kg | 2.29 lb
