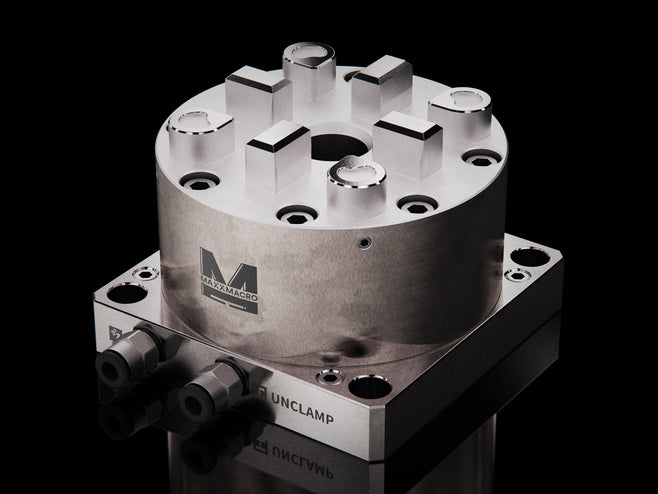

MaxxMacro® (System 3R) 70 Pneumatic Chuck 600.1-30 WEDM Rust Proof with Mounting Plate 1
All Images © 2019-2026 Maxx Tooling All Rights Reserved
SKU: MM-PCMPR003
SKU copied to clipboard
MaxxMacro
MaxxMacro 70
Corrosion Resistant
Pneumatic
Suited for Submerged

MaxxMacro® 70 Pneumatic Chuck 600.1-30 WEDM Rust Proof with Mounting Plate

£1,692.00 GBP Sale

Excl. VAT, duties, and taxes.

MaxxMacro 70 Pneumatic Chuck 6001030 with Mounting Plate WEDM comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system....
Availablity: In Stock
Availablity: In Stock

£1,692.00
3R-600.1-30, 3R-600.10-30, 3R-600.10-30RS, 3R-610.46-30, 3R-610.46-3N, 70, Chuck, Chucking, EDM, MaxxMacro, Milling, Mounting, MX-3RPN102SS, Pneumatic, Rust Proof, Stainless, System 3R, System 3R Chuck, WEDM
Chuck

MaxxMacro 70 Pneumatic Chuck 6001030 with Mounting Plate WEDM comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. Rust proof pneumatic chuck for permanent mounting on the machine table.

MaxxDesign Exclusive Features:

  • Mounting Plate with adjustable jack screws for easy alignment and setup.
  • Z-Pads Air Clean function.

Product Information:

The MaxxMacro 70 Pneumatic Chuck 6001030 with Mounting Plate WEDM is designed for high-precision automation and WEDM applications. Fully compatible with System 3R Macro systems, it features an Air Clean function for optimal performance and can be operated using either an air gun or automated switch. This chuck includes a rust-resistant 440C stainless steel 102mm x 102mm base plate and corrosion-resistant internal mechanisms for long-term reliability in demanding environments.

Product Specifics

  • Clamping Type: Pneumatic (6 bar)
  • Clamping Force: 6 kN
  • Drawbar required :
    MaxxMacro® (System 3R) 605.1 Long Automatic Drawbar 605 Stainless 1

    MaxxMacro® 605.1 Long Automatic Drawbar 605 Stainless

    £40.00 GBP
    MaxxMacro® 605.1 Long Automatic Drawbar 605 Stainless
    [MM-DRWBR201]
  • Repair Kit / Replacements:
    MaxxMacro® (System 3R) 70 Pneumatic Chuck Internal Repair Kit WEDM Rust Proof 1

    MaxxMacro® 70 Pneumatic Chuck Internal Repair Kit WEDM Rust Proof

    £235.00 GBP
    MaxxMacro® 70 Pneumatic Chuck Internal Repair Kit WEDM Rust Proof
    [MM-RKPCR001]

Product Details

  Product Name MaxxMacro® 70 Pneumatic Chuck 600.1-30 WEDM Rust Proof with Mounting Plate
  SKU/Part Number MM-PCMPR003 [Old SKU: MX-3RPN102SS]
  System MaxxMacro  (System 3R 100% Cross-Compatible)
  Cross-Compatible 3R-600.10-30, 3R-600.10-30RS, 3R-610.46-30, 3R-610.46-3N
  System Repeatability 0.002mm
  Material Mounting Plate: Stainless 440C
  Weight 3.43 kg | 7.56 lb
