How to Machine a Scale V8 Engine Block with MaxxMagnum Workholding?

Machining a scale V8 engine block is one of the most challenging projects for any CNC programmer or machinist. The part contains multiple machining operations, requires excellent accuracy, and often demands several setups if the workholding solution is not optimized.

With the right MaxxMagnum workholding configuration, however, most of the machining process can be completed in a single setup on a 5-axis machining center. This significantly reduces setup time, improves accuracy between operations, and increases productivity.

In this guide, we'll walk through the complete machining process while showing how MaxxMagnum's workholding solutions simplify every stage of the project.

What MaxxMagnum setup is recommended for 5-axis machining?

The ideal setup for machining a scale V8 engine block combines the MaxxMagnum 680.24-S Manual Chuck Low Profile (MM-MGMPS001-TR210) with the MaxxMagnum Stainless Self Centering Vise 80x120mm (MM-VISCS502).

This configuration provides:

• Excellent rigidity for aggressive roughing operations
• Precise self-centering clamping
• Maximum accessibility for 5-axis machining
• Minimal interference between the vise and cutting tools
• Reduced setup changes throughout the entire process
• Maximum versatility thanks to the accessories available for the Self Centering Vise

Can MaxxTooling Adapt the MaxxMagnum Chuck to My Machine?

Absolutely.

Every machine has its own table interface, and MaxxTooling can manufacture custom adapter plates that allow the MaxxMagnum workholding system to fit your specific machine.

We already offer custom adapters for many popular machining centers, such as:

• MaxxMagnum 680.24-S Manual Chuck Low Profile Table Haas TRT160 (MM-MGMPS001-TRT160)
• MaxxMagnum 680.24-S Manual Chuck Low Profile Table Haas TR210 (MM-MGMPS001-TR210)

If you have any other machine, our engineering team can Design a Custom Solution specifically for your application.

Why Is a Dovetail Workholding the Best Choice for 5-Axis Machining?

A dovetail interface is the best strategy for 5-axis machining. It clamps the workpiece by a minimal tab at the base, leaving 5 full sides open for cutting tools. The wedge action provides maximum clamping force, allowing the part to withstand high cutting loads without slipping or vibrating.


What Are the Benefits of Using Dovetail Workholding?

• Machine More Sides in One Setup

  Dovetail workholding provides excellent tool access, making it ideal for 4-axis and 5-axis CNC machining while reducing the number of setups required.

• Increase Stability and Accuracy

  The dovetail design applies both downward and inward clamping force, delivering exceptional rigidity, repeatability, and machining precision with minimal clamping torque.

• Reduce Material Waste

  Because only a small dovetail feature is required for clamping, more of the raw stock can be used as the finished part, reducing waste and machining costs.

• Prevent Part Distortion

  Evenly distributed clamping forces reduce deformation compared to conventional workholding methods, protecting dimensional accuracy during machining.

• Speed Up Production

  A quick dovetail preparation operation enables faster setups, shorter cycle times, and higher productivity throughout the machining process.

• Support a Wide Range of Materials

  Dovetail workholding securely clamps everything from aluminum and steel to graphite and high-temperature alloys, making it suitable for many CNC applications.

Step-by-Step Preparation for dovetail:

1. Pre-op in a 3-Axis Mill: Clamp the raw block in a standard vise on a basic 3-axis machine.
2. Mill the Dovetail Profile: Cut the angled profile at the base using a dovetail cutter matching your jaw geometry (60° for our system).
3. Control Depth and Clearance: Maintain exact dovetail depth so the block locates firmly on the top surface of the jaws, never on the bottom step.

This quick 3-axis prep makes the raw block 100% ready for aggressive 5-axis milling.

Contact our team to request the technical drawing with complete dovetail dimensions and tolerances for your stock prep.

How Many Machining Operations Can Be Performed in a Single MaxxMagnum Setup?

With this MaxxMagnum setup, manufacturers can complete up to 90% of machining operations in a single setup without changing the workholding.

One unique advantage of our jaws is that both sides include the dovetail profile, and if additional machining clearance or tolerance adjustments are required, the jaws can simply be inverted without changing the workholding.

Which operations can I perform in this setup?

1. Stock Setup & Workpiece Probing
2. Roughing & Primary Body Shaping
3. Cylinder Bores & Hole Drilling
4. Semi-Finishing & Deep Pocketing

By minimizing setup changes, the system reduces machine downtime, improves machining efficiency, and maintains consistent part accuracy throughout the process.

Why Are Soft Jaws Used to Clamp Complex Surfaces?

Eventually, some features require access to surfaces that cannot be reached while the dovetail is still being used.

For these final operations, machined soft jaws are the ideal solution.

The MaxxVise Aluminum Soft Jaws (MX-VIACA502) are custom-machined to match the exact geometry of the partially finished engine block, providing maximum support while protecting delicate finished surfaces.

Once the soft jaws have been machined, it is possible to turn/reposition the engine block to finish the side with the dovetail.

How Can You Expand Your MaxxMagnum Workholding Setup?

MaxxTooling offers a complete range of accessories designed to maximize the performance and versatility of the MaxxMagnum Self-Centering Vise. From interchangeable jaws to dedicated workholding components, our solutions help optimize every CNC machining setup for greater precision, flexibility, and productivity.

Want to learn more about our Self-Centering Vises? Explore our comprehensive guide to discover how the MaxxTooling Self-Centering Vise system improves setup efficiency, reduces workholding changes, and increases machining accuracy.

Conclusion

Machining a scale V8 engine block requires precision, rigidity, and an efficient workholding strategy.

By preparing a dovetail on the raw material and combining it with the MaxxMagnum Self-Centering Vise, manufacturers can complete nearly the entire machining process in a single 5-axis setup.

The result is:

• Fewer setups
• Higher accuracy
• Greater machining efficiency
• Improved tool accessibility
• Reduced production time

When the project reaches its final machining stages, custom soft jaws provide the perfect solution for securely holding complex geometries while protecting finished surfaces.

Whether you're producing prototypes or high-precision components, MaxxTooling workholding systems help maximize the capabilities of your CNC machine.

To request our Self Centering MaxxVise catalog or to contact our team directly, reach out today via the website chat at the bottom of the page or by email to  sales@maxxtooling.com

MaxxTooling Self-Centering Vises for CNC Milling: Improving Workholding Precision and Setup Efficiency

Published on: May 28, 2026

What Is a Self-Centering Vise?

A self-centering vise is a precision workholding device designed to move both jaws simultaneously toward the centerline of the vise. Unlike conventional vises, where one jaw remains fixed while the other moves independently, a self-centering vise clamps the workpiece symmetrically from both sides.

This design provides several important advantages for CNC machining operations:

• Automatic workpiece centering
• Improved setup repeatability
• Reduced operator alignment errors
• Consistent datum positioning between operations
• Better machining stability

Self-centering vises are commonly used in:

• 3-axis and 5-axis CNC milling
• High-precision mold manufacturing
• Production machining
• Automated machining cells
• Multi-part fixturing environments

Because the part remains centered during clamping, machinists can achieve greater accuracy, faster setups, and more consistent machining results.
Maxx Tooling offers a wide variety of Self Centering Vise, compatible with different systems, and in different sizes, to suit all your needs.

Why Is Self-Centering Workholding Important in Milling?

In CNC milling, positional consistency directly affects machining accuracy, surface finish quality, and overall production efficiency. Even small alignment variations can create dimensional errors, increase setup verification time, and reduce process reliability.

MaxxTooling Self-centering workholding systems improve milling performance in several ways.

• Improved Repeatability

  Because the workpiece automatically centers relative to the vise body, operators can achieve highly repeatable setups across multiple batches and machine changes.

• Better Process Control

  Consistent centering simplifies CAM programming, probing routines, and fixture offsets, especially in multi-axis machining applications.

• Reduced Setup Time

  Operators spend less time manually aligning stock material, reducing downtime and improving spindle utilization. This is especially valuable in short-run production and high-mix manufacturing.

• Enhanced Surface Finish

  Balanced clamping pressure improves rigidity and minimizes micro-movement during aggressive cutting operations, helping reduce chatter and improve surface finish quality.

• Greater Automation Compatibility

  Robotic loading systems rely on predictable positioning. Self-centering vises provide a repeatable reference point that supports automated and lights-out machining environments.

  For manufacturers focused on machining consistency, process reliability, and spindle uptime, modern self-centering workholding systems can significantly improve operational efficiency.

What are the drawbacks of conventional workholding in Machining vs Self Centeging Vises?

As machining tolerances become tighter and production efficiency becomes more critical, many machine shops discover that traditional vises create limitations in precision, setup consistency, and tool accessibility.
The comparison below highlights common machining challenges and how self-centering vises improve milling performance.

What Basic Self Centering Vise Configurations Does MaxxTooling Offer?

MaxxTooling offers a versatile, high-performance range of Self-Centering Vises designed to deliver maximum rigidity, absolute repeatability, and unmatched efficiency in demanding CNC environments. Engineered for flexibility, our self-centering lineup includes MaxxMacro® and Maxx-ER compatible vises, providing a robust yet compact workholding solution that effortlessly adapts to both small and complex workpieces.

To ensure seamless integration with your existing automation and tooling setups, all MaxxTooling Self-Centering Vises are engineered to fit our premier modular base systems:

• MaxxMacro® Base Configurations:
  • MaxxMacro® 54 Stainless Self Centering Vise 46x65mm (MM-VISCS403)
  • MaxxMacro® 70 Stainless Self Centering Vise 46x65mm (MM-VISCS401)
  • MaxxMacro® 70 Stainless Self Centering Vise 80x120mm (MM-VISCS501)



• MaxxMagnum Base Configurations:

  • MaxxMagnum Stainless Self Centering Vise 46x65mm (MM-VISCS402)
  • MaxxMagnum Stainless Self Centering Vise 80x120mm (MM-VISCS502)

• MaxxMacro® Rust Proof Configurations:
  • MaxxMacro® 70 Stainless Self Centering Vise 46x65mm WEDM Rust Proof (MM-VISCR401)
  • MaxxMacro® 70 Stainless Self Centering Vise 80x120mm WEDM Rust Proof (MM-VISCR501)

• Maxx-ER Base Configurations:
  • Maxx-ER 50 Stainless Self Centering Vise 46x65mm D72 (ME-VISCS401)
  • Maxx-ER 100 Stainless Self Centering Vise 46x65mm (ME-VISCS402)
  • Maxx-ER G Stainless Self Centering Vise 46x65mm with 115mm Pallet (ME-VISCS403)
  • Maxx-ER G Stainless Self Centering Vise 46x65mm with 148mm Pallet (ME-VISCS404)
  • Maxx-ER 100 Stainless Self Centering Vise 80x120mm (ME-VISCS502)
  • Maxx-ER G Stainless Self Centering Vise 80x120mm with 115mm Pallet (ME-VISCS503)
  • Maxx-ER G Stainless Self Centering Vise 80x120mm with 148mm Pallet (ME-VISCS504)


These modular systems allow machinists to seamlessly adapt their workholding setups to varying machining requirements, forward-thinking automation strategies, and complex fixture layouts, all while maintaining the strict precision and heavy-duty clamping stability your shop demands.

What types of accessories for Self Centering Vise does MaxxTooling provide?

One of the major advantages of modular workholding systems is the ability to configure the vise for specific machining applications.

Low-Profile Jaws

MaxxTooling Low-Profile Jaw 80 mm and MaxxTooling Low-Profile Jaw 46 mm improve cutter accessibility and reduce interference during 5-axis machining.

Benefits include:

• Better angular clearance
• Reduced collision risk
• Improved tool rigidity
• Greater machining flexibility

These jaws are ideal for aerospace, medical, and complex contour machining applications.

Aluminum Soft Jaws

MaxxTooling Aluminum Soft Jaws allow machinists to create custom gripping surfaces for delicate or irregular components.

Advantages include:

• Custom machinable profiles
• Reduced part marking
• Better support for thin-wall parts
• Improved grip consistency

Soft jaws are especially useful for:

• Prototype machining
• Short-run production
• Complex geometries

Middle Jaw

The MaxxTooling Middle Jaw enables multiple-part clamping within a single setup.

This configuration improves throughput by:

• Machining multiple components simultaneously
• Reducing setup changes
• Improving machine utilization

For production machining environments, this can significantly improve cycle efficiency.

Vise Stop

The MaxxTooling Vise Stop provides a repeatable loading position for raw material or semi-finished components.

Benefits include:

• Faster loading
• Improved setup consistency
• Reduced operator variability
• Better repeatability in batch production

Vise stops are especially valuable in semi-automated and lights-out machining operations.

How to keep your MaxxTooling Self Centering Vise running for decades?

Downtime caused by worn or damaged workholding components can quickly impact production schedules and machining efficiency.

Maintaining replacement components such as:

• MaxxVise Stainless Self Centering Vise Replacement Jaw 46mm (MX-VIRPS401)
• MaxxVise Stainless Self Centering Vise Replacement Jaw 80mm (MX-VIRPS501)
• MaxxVise Stainless Self Centering Vise Replacement Left Nut (MX-VIRPS502)
• MaxxVise Stainless Self Centering Vise Replacement Right Nut (MX-VIRPS503)
• MaxxVise Stainless Self Centering Vise Replacement Screw 65mm (MX-VIRPS404)
• MaxxVise Stainless Self Centering Vise Replacement Screw 120mm (MX-VIRPS504)

Helps ensure uninterrupted production and consistent machining performance.

One of the key advantages of modular workholding systems is that operators can replace individual components instead of replacing the entire vise assembly. This reduces maintenance costs and minimizes machine downtime.

MaxxTooling also provides technical support, replacement information, and maintenance guidance to help manufacturers maintain reliable CNC workholding performance.

Conclusion

As machining tolerances become tighter and manufacturers demand greater production efficiency, precision workholding systems play an increasingly important role in CNC machining success.

Self-centering vises help solve common machining challenges by improving:

• Repeatability
• Stability
• Setup speed
• Tool accessibility
• Multi-axis machining capability
• Automation readiness

For machine shops focused on precision milling, process consistency, and reduced downtime, modular self-centering workholding systems provide a strong foundation for long-term manufacturing efficiency.

With modular configurations such as MaxxMacro® and Maxx-ER, MaxxTooling offers flexible CNC workholding solutions designed to support modern machining environments while maximizing spindle uptime, repeatability, and machining performance.

To request our Self Centering MaxxVise catalog or to contact our team directly, reach out today via the website chat at the bottom of the page or by email to  sales@maxxtooling.com

The 2024 SKU Update for Enhanced Clarity and Compatibility

Published on: Nov 8, 2024

At MaxxTooling, we're always looking for ways to improve your experience with our products and services. This year, we introduced a major update to our SKU system, designed to simplify product identification, improve inventory management, and enhance your overall experience. Here’s what this new system brings to the table—and how it benefits you.

What is a SKU? A SKU (Stock Keeping Unit) is a unique identifier used to track a product in inventory and make it easy to identify.

Why Did We Update the SKU System?

As our product family expands, we needed a improved SKU system that would deliver the following benefits:

1. Consistency and Clarity: SKUs now follow a single, well-defined rule, making them easier to read and understand.
2. Family and Product Matching: Each SKU reflects its product family, allowing you to identify compatible items more easily.
3. Support for Future Growth: The new format makes it simple to accommodate new product introductions, family expansions, and variations.
4. Integration with Adapter Plates and Custom Products: The revised structure also allows for easier integration of adapter plate codes, optional parts, and other customization options.
5. Better ERP and Spreadsheet Integration: Standardized SKUs streamline data entry, making it easier to integrate with ERP systems, spreadsheets, and custom properties.

What Does the New SKU Format Look Like?

Our SKUs now follow a standardized, informative structure:

MX-XXXXMSSS(-O-CODE)

Here’s what each section means:

• Prefix (MX/MM): Identifies MaxxTooling or MaxxMacro as the source, with additional prefixes planned for future products.
• Family Code (XXXX): A four-character code indicating the product family.
• Material Code (M): One character indicating the material.
• Size Code (SSS): Three digits denoting the product’s size or model.
• Optional Code (O): A single character used for optional features, such as performance enhancements, index-disabled features, MXRefix systems, etc.
• Adaptation Code (-CODE): Optional codes for adapter plates, machine-specific modifications, or client custom modifications.

Revision Dates and Compatibility Page

The SKU update process has occurred gradually over the year, with different products receiving updates at different times. Each updated SKU has a specific Revision Date that you can check to ensure compatibility with your needs.

To make this transition easier, we’ve created a dedicated SKU Compatibility Page, where you can:

• Look up compatibility between old and new SKU formats
• Check revision dates for each product
• Access the latest product pages for detailed specifications

Visit the SKUs Compatibility Page

New Laser Markings for Improved Operator Experience

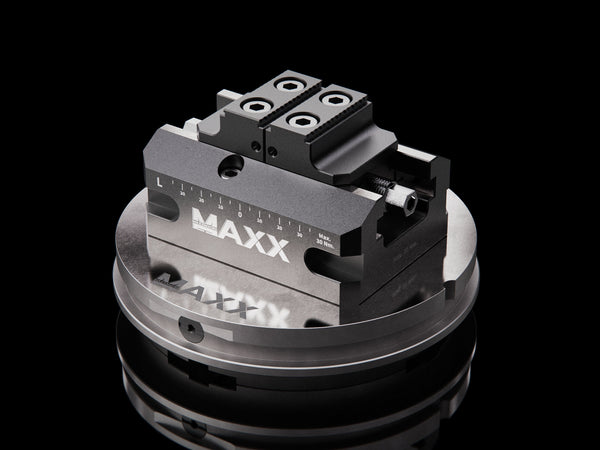

Along with our SKU system update, we’ve also made a significant improvement to the way we laser engrave our products. All of our items now feature new, detailed laser markings that provide essential product information directly on the part. This includes data such as ports, maximum torque values, and other key specifications. These updates make it easier for operators to quickly identify important features, improving workflow efficiency and reducing the chance of errors. The enhanced laser markings are part of our ongoing commitment to making your experience with our products as seamless and efficient as possible.

Our Commitment to Continual Improvement

Updating our SKU system is just the beginning. As we continue expanding and enhancing our product offerings, we’ll keep refining this system to support future growth and product variations. Our goal is to make it as easy as possible for you to select, track, and integrate our products into your workflows.

Thank you for choosing MaxxTooling as your workholding partner. Please explore our SKU Compatibility Page for more information, or feel free to reach out if you have any questions.
