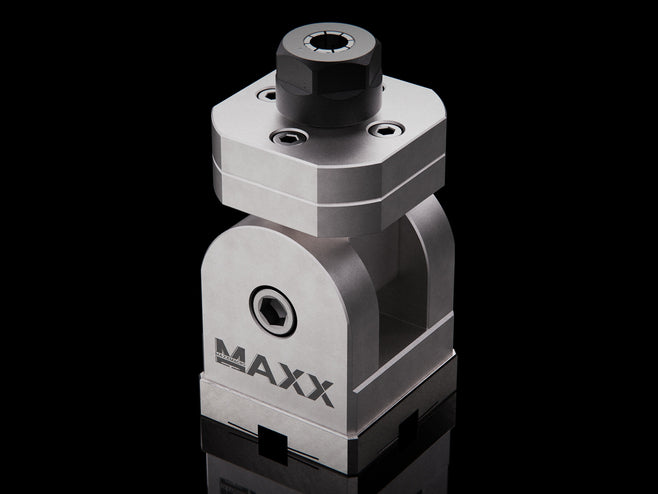

MaxxMacro® (System 3R) 54 Stainless Variable Angled ER Collet Chuck ER16 1
All Images © 2019-2026 Maxx Tooling All Rights Reserved
SKU: MM-CCVAS016
SKU copied to clipboard
MaxxMacro
MaxxMacro 54
Corrosion Resistant

MaxxMacro® 54 Stainless Variable Angled ER Collet Chuck ER16

£865.00 GBP Sale

Excl. VAT, duties, and taxes.

MaxxMacro 54 Variable Angled ER Collet Chuck ER16 comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. To...
Availability: Approximately 2-3 weeks, contact us for more information.
Availability: Approximately 2-3 weeks, contact us for more information.

£865.00
3R-659.16-P, 54, Clamping, Collet Chuck, EDM, ER16, Flushing Through, MaxxMacro, Milling, MX-MM16317A, Round, Stainless, System 3R, System 3R Collet Chuck, up to 100mm
Collet Chuck

MaxxMacro 54 Variable Angled ER Collet Chuck ER16 comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. To handle a wide range of tooling and workpiece types, angles can be set continuously from 0° to 90°.

MaxxDesign Exclusive Features:

  • Chuck includes our MaxxMacro 54 440C performance pallet.
  • Compatible with standard ER collet sizes

Product Information:

The MaxxMacro 54 Variable Angled Collet Chuck ER16 is fully cross compatible with System 3R Macro Systems and designed for superior stability and durability. Featuring an optimized angular collet locking shape, it ensures enhanced grip and longer service life while accommodating a wide range of tooling and workpieces. The chuck’s angle can be continuously adjusted from 0° to 90°, making it ideal for machining complex components and accessing hard-to-reach areas such as drops and gates with pinpoint accuracy.

Product Specifics

  • Reference Element Included:
    MaxxMacro® (System 3R) 54 Stainless 651.7E-P Performance Pallet with 6mm Dowels WEDM Rust Proof 1

    MaxxMacro® 54 Stainless 651.7E-P Performance Pallet with 6mm Dowels WEDM Rust Proof

    £40.00 GBP
    MaxxMacro® 54 Stainless 651.7E-P Performance Pallet with 6mm Dowels WEDM Rust Proof
    [MM-PA54W006]
  • Included Items: MX-CCRPS016
  • Clamping Range: Ø 0,5 - 10 mm ( Ø 0.02 - 0.39 in)
  • Accessories:
    MaxxTooling Steel ER16 Collet Replacement Locking Nut 1

    MaxxTooling Steel ER16 Collet Replacement Locking Nut

    £24.00 GBP
    MaxxTooling Steel ER16 Collet Replacement Locking Nut
    [MX-CCRPS016]

Product Details

  Product Name MaxxMacro® 54 Stainless Variable Angled ER Collet Chuck ER16
  SKU/Part Number MM-CCVAS016 [Old SKU: MX-MM16317A]
  System MaxxMacro  (System 3R 100% Cross-Compatible)
  System Repeatability 0.002mm
  Material Stainless 420C  |  Nut: Steel (AISI 4140)
  Weight 1.52 kg | 3.35 lb
