Collet Chuck

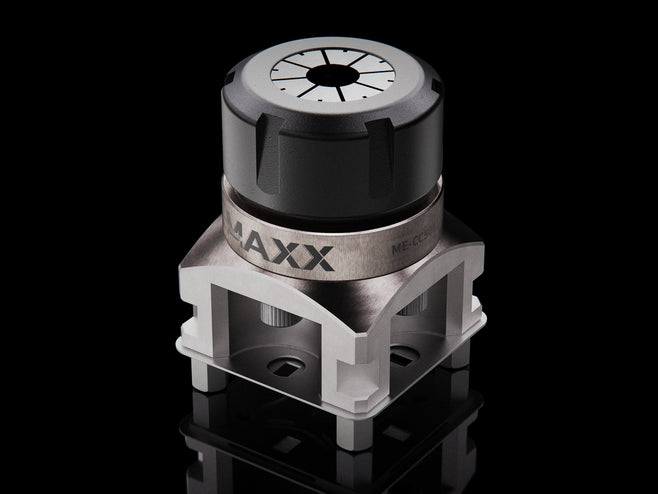

Maxx-ER 50 Stainless ER Collet Chuck ER32C comes fully assembled and ready to use. This product is 100% cross-compatible with the Erowa OEM system. To clamp cylindrical parts with ER Collet System.
MaxxDesign Exclusive Features:
- Compatible with standard ER collet sizes.
- Comes with external C gripper slots for robotic operations.
Product Information:
The Maxx-ER 50 Stainless ER Collet Chuck is a high-performance collet chuck that is 100% cross-compatible with OEM Erowa systems. Designed for precision and durability, it delivers ±0.015 mm concentricity and ±0.002 mm repeatability, making it suitable for both manual and automated applications. Each unit includes an ITS 50 Centering Plate to ensure stability in demanding machining environments. For robotic integration, the chuck can be customized with gripper interfaces, stop buttons, and other automation features. It also incorporates through-flushing to aid debris removal and extend tool life.
Product Specifics
- Spigot required: ITS Chucking Spigot
-
Reference Element Included:
[ME-CP50R000]Maxx-ER 009214 50 Stainless Centering Plate WEDM Rust Proof
Maxx-ER 009214 50 Stainless Centering Plate WEDM Rust Proof
Regular price £7.00 GBP - Included Items: MX-CCRPS032
- Clamping Range: Ø 2 - 20 mm ( Ø 0.08 - 0.79 in)
-
Accessories:
[MX-CCRPR032]MaxxTooling Stainless ER32 Collet Replacement Locking Nut WEDM Rust Proof
MaxxTooling Stainless ER32 Collet Replacement Locking Nut WEDM Rust Proof
Regular price £65.00 GBP - Automation: er robot gripper c,
-
Repair Kit / Replacements:
[MX-CCRPS032]MaxxTooling Steel ER32 Collet Replacement Locking Nut
MaxxTooling Steel ER32 Collet Replacement Locking Nut
Regular price £33.00 GBP
Product Details
| Product Name | Maxx-ER 093999 50 Stainless ER Collet Chuck ER32C |
| SKU/Part Number | ME-CC50S132 [Old SKU: MX-ER32C2] |
| System | Maxx-ER |
| Cross-Compatible | ER-093999 |
| System Repeatability | 0.002mm |
| Material | Stainless 420C | Nut: Steel (AISI 4140) |
| Weight | 0.84 kg | 1.85 lb |
