Collet Chuck

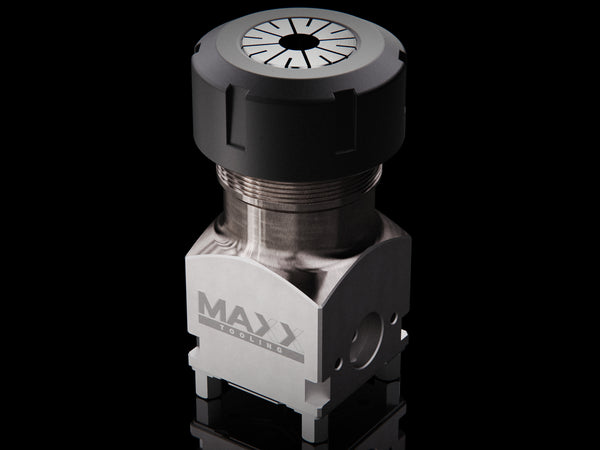

Maxx-ER 50 Stainless ER Long Collet Chuck ER40 comes fully assembled and ready to use. This product is 100% cross-compatible with the Erowa OEM system. To clamp cylindrical parts with ER Collet System.
MaxxDesign Exclusive Features:
- Compatible with standard ER collet sizes.
- Comes with external C gripper slots for robotic operations.
Product Information:
The Maxx-ER 50 Stainless ER Collet Chuck is a high-performance collet chuck that is 100% cross-compatible with OEM Erowa systems. Designed for precision and durability, it delivers ±0.02 mm concentricity and ±0.002 mm repeatability, making it suitable for both manual and automated applications. Each unit includes an ITS 50 Centering Plate to ensure stability in demanding machining environments. For robotic integration, the chuck can be customized with gripper interfaces, stop buttons, and other automation features. It also incorporates through-flushing to aid debris removal and extend tool life. Designed with a deeper internal diameter to better hold long workpieces.
Product Specifics
- Spigot required: ITS Chucking Spigot
-
Reference Element Included:
[ME-CP50R000]Maxx-ER 009214 50 Stainless Centering Plate WEDM Rust Proof
Maxx-ER 009214 50 Stainless Centering Plate WEDM Rust Proof
Regular price £7.00 GBP - Included Items: MX-CCRPS040
- Clamping Range: Ø 3 - 26 mm ( Ø 0.12 -1 in)
- Automation: code carrier, er robot gripper c,
-
Repair Kit / Replacements:
[MX-CCRPS040]MaxxTooling Steel ER40 Collet Replacement Locking Nut
MaxxTooling Steel ER40 Collet Replacement Locking Nut
Regular price £34.00 GBP
Product Details
| Product Name | Maxx-ER 50 Stainless ER Long Collet Chuck ER40 |
| SKU/Part Number | ME-CC50S240 [Old SKU: MX-ER40D] |
| System | Maxx-ER |
| Cross-Compatible | ER-008566 |
| System Repeatability | 0.002mm |
| Material | Stainless 420C | Nut: Steel (AISI 4140) |
| Weight | 1.68 kg | 3.7 lb |
Returns Policy
You may return most new, unused items within 30 days of delivery for a refund. There is a 20% restock fee if the item is returned due to customer error. The customer is responsible for the return shipping costs if the return is a result of your error (Not if received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the 'Complete Orders' link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Shipping
We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.
When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.
Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.
International shipments it is the customers responsibility to determine if there are any taxes or import duties payable and to make arrangements to clear and pay these fees if applicable.How do I measure the angle of a Maxx-ER ME-CCVAS016 variable-angle chuck?
Use an angle gauge or sine plate to measure the angle of the Maxx-ER (Erowa OEM 100% cross-compatible) ME-CCVAS016 variable-angle chuck. The adjustment rotates continuously, so indicate the chuck to set the angle.
Read full answerWhy does an ER collet chuck nut appear off-center before tightening?
The retaining feature inside an ER collet nut is intentionally off-center. It prevents the collet from falling out of the nut.
Evaluate concentricity with the collet installed and tightened in the chuck, rather than by the appearance of the loose nut.
Read full answerWhat are collet chucks used for in machining and workholding?
Collet chucks hold round parts, rotating cutting tools, or EDM electrodes by gripping them evenly around their entire outer diameter. As the chuck closes, a slotted steel sleeve called a collet squeezes tight against an internal taper, applying balanced 360-degree clamping pressure. This uniform grip keeps the part centered with high accuracy, helps reduce chatter and vibration during cutting, and holds finished surfaces securely without leaving jaw marks.
In modular setups, collet chucks mount onto chucks fitted with drawbars, spigots, or pull studs. This setup allows operators to locate and preset round workpieces offline on a granite table, then move them directly into a mill, lathe, or EDM without losing center coordinates. The slim, compact nose also gives cutting tools close reach around small parts, reducing tool stick-out and improving clearance in 3-axis and 5-axis setups.
Read full answerDo ER collet chucks include an adjustable stop for workpiece depth?
Most ER Collet Chucks do not come with an adjustable positive stop for setting part depth. However, some of our customers use a practical workaround by placing round spacers of varying heights inside the collet chuck. This serves as an effective positive stop, allowing them to control how deep a part sits inside the collet.
Read full answerIs an ER collet included with a MaxxTooling collet chuck?
Our collet chucks come with one standard collet included. The size of the included collet may vary, and it is not intended for production use. It is provided only as a placeholder and should be replaced with the customer's own ER collet.
Read full answerWhat is required to seal a collet chuck for through-flushing?
Sealing a collet chuck for through-flushing requires a coolant-sealed ER collet to maintain proper sealing and coolant flow. Most standard coolant-sealed collets are compatible with our chucks. When used together with an O-ring on the drawbar, this setup maintains both pressure and fluid flow effectively.
Read full answerDo MaxxTooling collet chucks support through-flushing?
Our collet chucks include flushing through capabilities.
