MaxxMacro (System 3R) 70 Aluminum Low Profile Manual Chuck Extension 12" 2
All Images © 2019-2026 Maxx Tooling All Rights Reserved
SKU: MM-MKVEA012
SKU copied to clipboard
MaxxMacro
MaxxMacro 70
Aluminum
Corrosion Resistant
Manual Allen

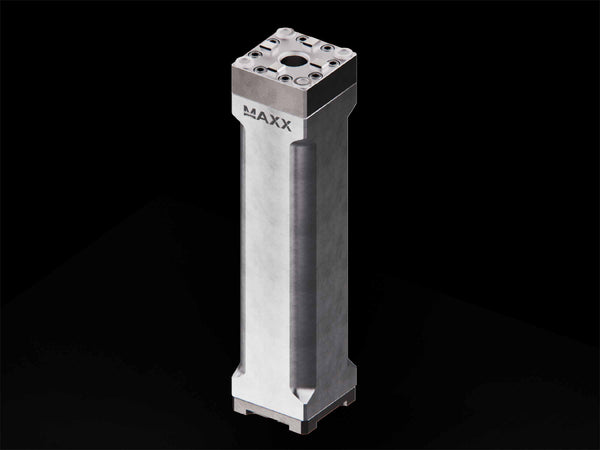

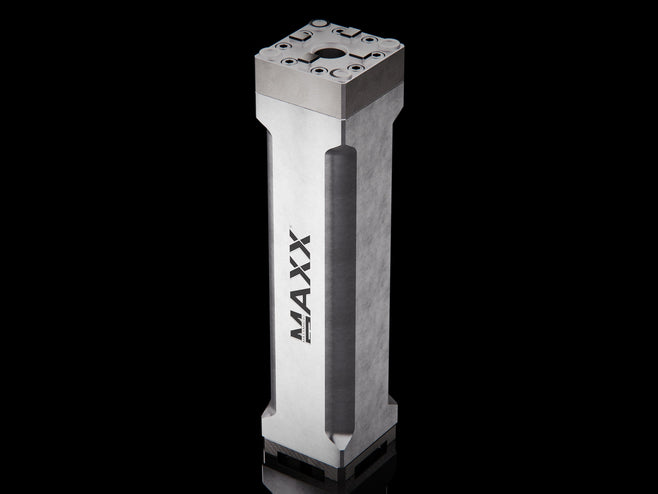

MaxxMacro® 70 Aluminum Low Profile Manual Chuck Extension 12"

£1,382.00 GBP Sale

Excl. VAT, duties, and taxes.

MaxxMacro 70 Aluminum Low Profile Manual Chuck Extension 12" comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system....
Availablity: In Stock
Availablity: In Stock

£1,382.00
3R-652.2, 3R-90476.01, 3R-90476.02, 70, Allen, Aluminum, Chucking, EDM, Extension, Manual, MaxxMacro, Milling, MX-EXT70-12, Stainless, System 3R, System 3R Extension
Extension

MaxxMacro 70 Aluminum Low Profile Manual Chuck Extension 12" comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. Vertical extension with manual chuck.

MaxxDesign Exclusive Features:

  • Precision ground to ensure uniform height. This guarantees that when using multiple extensions, they all have the same height.
  • Height accuracy is 0.008 mm (0.0003"), and XY accuracy is 0.002 mm.

Product Specifics

  • Clamping Type: Manual (6 Nm)
  • Clamping Force: 8 kN
  • Drawbar required :
    MaxxMacro® (System 3R) 605.2RS Short Manual Drawbar Stainless 1

    MaxxMacro® 605.2RS Short Manual Drawbar Stainless

    £29.00 GBP
    MaxxMacro® 605.2RS Short Manual Drawbar Stainless
    [MM-DRWBR101]
  • Chuck Included:
    MaxxMacro® 70 600.24-4RS Low Profile Manual Chuck WEDM Rust Proof

    MaxxMacro® 70 600.24-4RS Low Profile Manual Chuck WEDM Rust Proof

    £943.00 GBP
    MaxxMacro® 70 600.24-4RS Low Profile Manual Chuck WEDM Rust Proof
    [MM-MK70R000]
  • Reference Element Included:
    MaxxMacro® (System 3R) 70 Stainless Performance Pallet with 6mm Dowels WEDM Rust Proof 1

    MaxxMacro® 70 Stainless 601.7E-P Performance Pallet with 6mm Dowels WEDM Rust Proof

    £77.00 GBP
    MaxxMacro® 70 Stainless 601.7E-P Performance Pallet with 6mm Dowels WEDM Rust Proof
    [MM-PA70W006]
  • Repair Kit / Replacements:
    MaxxMacro® (System 3R) Manual Chuck Internal Repair Kit WEDM Rust Proof 1

    MaxxMacro® Manual Chuck Internal Repair Kit WEDM Rust Proof

    £219.00 GBP
    MaxxMacro® Manual Chuck Internal Repair Kit WEDM Rust Proof
    [MM-RKMCW002] ,
    MaxxMacro® (System 3R) Manual Chuck Premium Locking Screw Replacement 1

    MaxxMacro® Manual Chuck Premium Locking Screw Replacement

    £57.00 GBP
    MaxxMacro® Manual Chuck Premium Locking Screw Replacement
    [MM-MCRPX001]

Product Details

  Product Name MaxxMacro® 70 Aluminum Low Profile Manual Chuck Extension 12"
  SKU/Part Number MM-MKVEA012 [Old SKU: MX-EXT70-12]
  System MaxxMacro  (System 3R 100% Cross-Compatible)
  Cross-Compatible 3R-652.2, 3R-90476.01, 3R-90476.02
  System Repeatability 0.002mm
  Weight 4.63 kg | 10.21 lb
