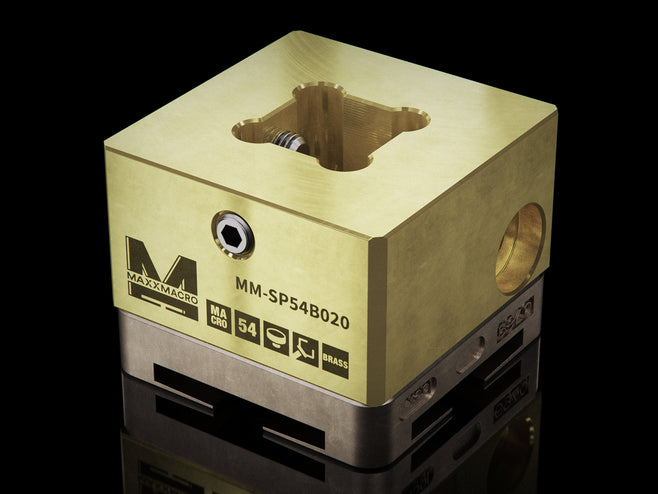

MaxxMacro 54 Brass Pocket Electrode Holder S20 comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system.
MaxxDesign Exclusive Features:
- High quality materials.
- 100% cross-compatible with OEM system
Product Information:
MaxxMacro 54 Brass Pocket Electrode Holder S20 Automated Changing is 100% cross compatible with System 3R 3R-658.4E-S Square Pocket Electrode Holder. Works on all System 3R Macro Systems. Repeatability .002MM
The MaxxMacro 54 Stainless Pocket Electrode Holder comes complete assembled with our ready to run
MaxxMacro 54 Stainless Pocket Electrode Holders are assembled with Stainless screw and our MaxxMacro 54 Stainless Cast Pallet Plated
Includes 2 Stainless Set Screws
Includes proper chip pocket position for automated robotic loading
Product Details:
| Product Name | MaxxMacro 54 Brass Pocket Electrode Holder S20 |
| SKU | MM-SP54B020 (MX-3RSQ-ABR20) |
| Pallet Included | See print |
| System | MaxxMacro (System 3R 100% Cross-Compatible) |
| Repeatability | 0.002mm |
| Material | See above |
| Cross-Compatible | 3R-658.2E-S, 3R-658.4E-S |
| Dimensions | - |
| Weight | - |
