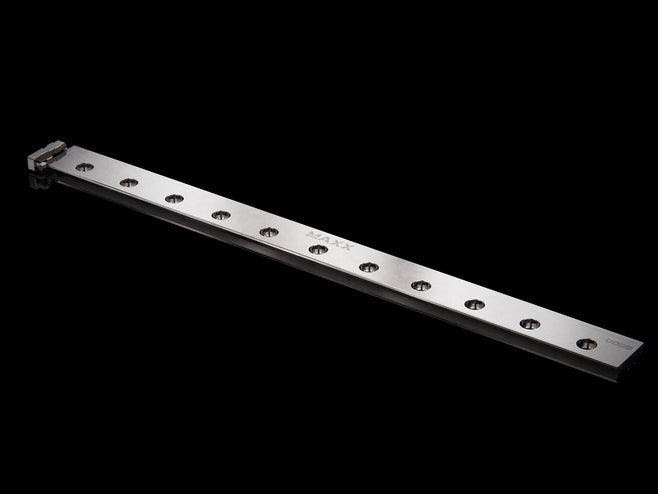

MaxxMacro® (System 3R) 200.5J-2 MXRuler (3Ruler) WEDM Rust Proof Reference Element 570mm 1
All Images © 2019-2026 Maxx Tooling All Rights Reserved
SKU: MM-RURES570
SKU copied to clipboard
MaxxMacro
Corrosion Resistant
WEDM Accessory
WEDM Accessory
Suited for Submerged

MaxxMacro® 200.5J-2 MXRuler WEDM Rust Proof Reference Element 570mm

£977.00 GBP Sale

Excl. VAT, duties, and taxes.

MaxxMacro 2005J2 MXRuler WEDM Reference Element 570mm comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. Reference elements...
Availability: Approximately 2-3 weeks, contact us for more information.
Availability: Approximately 2-3 weeks, contact us for more information.

£977.00
3R-200.5J-2, 3R-200.XJ-X, AgieCharmilles CUT 3000, AgieCharmilles CUT X 500, AgieCharmilles Progress VP3, Excetek V400G, Excetek V650G, Excetek V850G, Fanuc Alpha 1iD, Fanuc Alpha 1iDP, Fanuc Alpha 1iE, GFAC Cut E 600, Makino EU64, Makino U1310, MaxxMacro, MaxxMacro WEDM, Mitsubishi BA24, Mitsubishi FA20-S Advance, Mitsubishi FA30-S Advance, Mitsubishi NA24, Mitsubishi NA2400, Mitsubishi NA2400P, Mitsubishi SX2, Mitsubishi SX20, MX-2005J2, MXRuler, ONA AF35, ONA AV35, Reference element, Rust Proof, Seibu 1175B, Seibu 1JMM50B, Seibu M35B, Seibu MM50B, Sodick AL800G, Sodick AL800P, Sodick ALC800G, Sodick ALN800G, Sodick AQ1200L, Stainless, System 3R, System 3R Reference Element, WEDM, WEDM Dovetail
Reference Element

MaxxMacro 2005J2 MXRuler WEDM Reference Element 570mm comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. Reference elements for machines with zero-line table. The length (L), hole spacing (C) and hole edge spacing (B) of the hardened reference elements are matched to the machine in question.

MaxxDesign Exclusive Features:

  • Designed for mounting the MXRuler, MaxxMacro Mounting Heads, and other compatible accessories for flexible Wire EDM setups.
  • High-quality materials with a fully rust-proof design for long-lasting performance

Product Information:

The MaxxMacro MXRuler Reference Element is available in various lengths to match different Wire EDM machines, with custom sizes available upon request. Each unit includes 1 MaxxMacro MXRuler Reference Element and 1 Adjustable End-Stop to support repeatable setups. Designed with a precision dovetail profile, this component serves as a mounting base not only for the MXRuler but also for a wide range of compatible MaxxMacro Wire EDM accessories. It is also compatible with MaxxMacro Leveling Heads, unlocking extensive configuration possibilities with both MXRuler accessories and Mounting Head components.

Machine Compatibility

Fits the following machines and more. Some machine applications may not be referenced below. Please contact us if you have any doubts.

Horizontal setup:

  • Excetek V650G
  • Excetek V850G
  • Makino U1310
  • Mitsubishi FA30-S Advance
  • Mitsubishi BA24
  • Mitsubishi NA24
  • Mitsubishi NA2400
  • Mitsubishi NA2400P
  • Sodick AL800G
  • Sodick AL800P
  • Sodick ALC800G
  • Sodick ALN800G
  • Seibu 1175B

Vertical setup:

  • AgieCharmilles CUT 3000 / S / X (yr 2011-)
  • AgieCharmilles CUT X 500
  • AgieCharmilles Progress VP3 (yr2014-2021)
  • Excetek V400G
  • Excetek V650G
  • Fanuc alpha 1iD
  • Fanuc alpha 1iDP
  • Fanuc alpha 1iE
  • Makino EU64
  • Mitsubishi FA20-S Advance
  • Mitsubishi SX2
  • Mitsubishi SX20
  • Sodick AQ1200L
  • ONA AF35
  • ONA AV35
  • Seibu M35B
  • Seibu MM50B
  • Seibu 1JMM50B

Product Specifics

  • Included Items: MM-RUACR213

Product Details

  Product Name MaxxMacro® 200.5J-2 MXRuler WEDM Rust Proof Reference Element 570mm
  SKU/Part Number MM-RURES570 [Old SKU: MX-2005J2]
  System MaxxMacro  (System 3R 100% Cross-Compatible)
  Cross-Compatible 3R-200.5J-2
  System Repeatability 0.002mm
  Weight 1.23 kg | 2.71 lb
