Holder

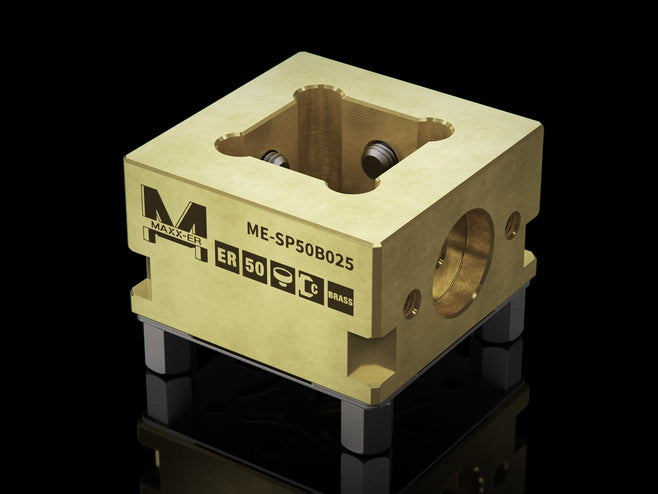

Maxx-ER 129070 50 Brass Pocket Electrode Holder S25 comes fully assembled and ready to use. This product is 100% cross-compatible with the Erowa OEM system. Holder for square or round electrodes, designed for use with saw cut or milled blanks.
MaxxDesign Exclusive Features:
- External gripper slots for robotic and automated operations
- 100% cross-compatible with OEM system
Product Information:
The Maxx-ER Brass Square Pocket Electrode Holder S25 is a precision-engineered solution designed for secure and repeatable electrode mounting in EDM applications. Each holder includes two stainless steel setscrews for reliable clamping and features external gripper slots, making it suitable for automated and robotic handling. The feet are torqued and ground to maximize performance, ensuring consistent positioning and dependable repeatability on the machine table.
Product Specifics
- Spigot required: ITS Chucking Spigot
-
Reference Element Included:
[ME-CP50R000]Maxx-ER 009214 50 Stainless Centering Plate WEDM Rust Proof
Maxx-ER 009214 50 Stainless Centering Plate WEDM Rust Proof
Regular price £7.00 GBP - Included Items: 2x Set Screw M8x1.25
- Automation: code carrier, er robot gripper c,
Product Details
| Product Name | Maxx-ER 129070 50 Brass Pocket Electrode Holder S25 |
| SKU/Part Number | ME-SP50B025 [Old SKU: MX-ERSBR-25] |
| System | Maxx-ER |
| Cross-Compatible | ER-129070 [ ER-093765, ER-035209, ER-103739 ] |
| System Repeatability | 0.002mm |
| Material | Brass |
| Weight | 0.49 kg | 1.08 lb |
