System Adapter

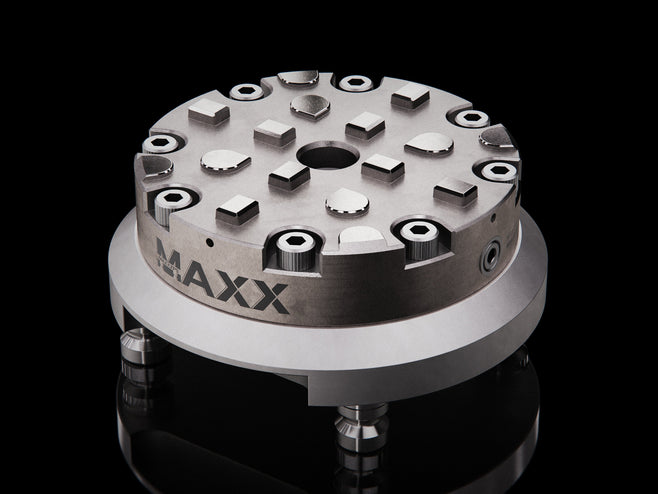

MaxxZPS Zero Point Pitch 96 Stainless to MaxxMagnum Manual Chuck System Adapter comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Magnum OEM system. To easily adapt Maxx-ZPS 96 to MaxxMagnum system, includes a MaxxMagnum Manual Chuck.
MaxxDesign Exclusive Features:
- 4 pull studs included, compatible with LANG bases, and designed to accept any OEM pull studs for compatibility with other zero-point systems.
- Enables quick transfer from any compatible zero-point system to the MaxxMacro/MaxxMagnum system, giving you access to the complete Macro/Magnum fixturing range.
Product Specifics
- Clamping Type: Manual (4 Nm for MaxxMacro pallet, 10 Nm for Magnum pallet)
- Clamping Force: 14 kN
- System: Maxx-ZPS 96 to MaxxMagnum
-
Drawbar required
:
[MM-DRWBR101]MaxxMacro® 605.2RS Short Manual Drawbar Stainless
MaxxMacro® 605.2RS Short Manual Drawbar Stainless
Regular price £29.00 GBP -
Chuck Included:
[MM-MGMGS000]MaxxMagnum 680.24RS Manual Chuck Low Profile WEDM Rust Proof
MaxxMagnum 680.24RS Manual Chuck Low Profile WEDM Rust Proof
Regular price £3,209.00 GBP -
Reference Element Included:
[MZ-PS96S000]MaxxZPS Zero Point Pitch 96 Stainless 45570 Pull Stud 20mm (Single piece)
MaxxZPS Zero Point Pitch 96 Stainless 45570 Pull Stud 20mm (Single piece)
Regular price £24.00 GBP - Included Items: 4x MZ-PS96S000
-
Accessories:
[MM-MGACX001]MaxxMagnum Manual Chuck Integrated Sealing Ring Spare Part
MaxxMagnum Manual Chuck Integrated Sealing Ring Spare Part
Regular price £316.00 GBP - Automation: code carrier,
-
Repair Kit / Replacements:
[MM-RKMGX001] ,MaxxMagnum Manual Chuck Internal Repair Kit WEDM Rust Proof
MaxxMagnum Manual Chuck Internal Repair Kit WEDM Rust Proof
Regular price £300.00 GBP[MM-MGRPX001] ,MaxxMagnum Manual Chuck Premium Locking Screw Replacement
MaxxMagnum Manual Chuck Premium Locking Screw Replacement
Regular price £118.00 GBP[MZ-PS96S000]MaxxZPS Zero Point Pitch 96 Stainless 45570 Pull Stud 20mm (Single piece)
MaxxZPS Zero Point Pitch 96 Stainless 45570 Pull Stud 20mm (Single piece)
Regular price £24.00 GBP
Product Details
| Product Name | MaxxZPS Zero Point Pitch 96 Stainless to MaxxMagnum Manual Chuck System Adapter |
| SKU | MZ-MGZZS001 |
| System | MaxxZPS (Cross-Compatible with 5th Axis, LANG, Jergens, HWR, and other zero-point systems) |
| Cross-Compatible | 3R-680.24-S, 3R-90809.02 |
| Material | Stainless 420C |
| Weight | 6.73 kg | 14.84 lb |
