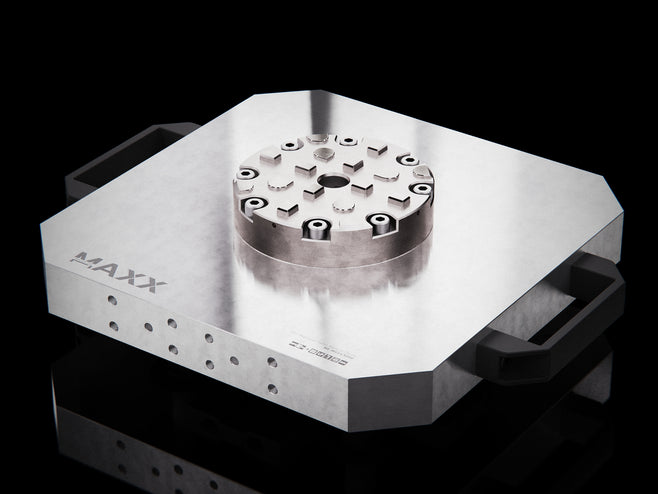

MaxxUPC (Erowa) UPC Stainless Pallet System Adapter to MaxxMagnun (System 3R) Manual Chuck
All Images © 2019-2026 Maxx Tooling All Rights Reserved
SKU: ME-MGUCS000
SKU copied to clipboard
Maxx UPC
Corrosion Resistant
ER Robot Gripper RCS

MaxxUPC UPC Stainless Pallet Manual Chuck MaxxMagnum

£2,365.00 GBP Sale

Excl. VAT, duties, and taxes.

MaxxUPC UPC Stainless Pallet Manual Chuck comes fully assembled and ready to use. This product is 100% cross-compatible with the Erowa OEM system. MaxxDesign Exclusive Features: MaxxMagnum low-profile...
Availability: Approximately 2-3 weeks, contact us for more information.
Availability: Approximately 2-3 weeks, contact us for more information.

£2,365.00
Chucking, EDM, ER Robot Gripper RCS, ER-016917, ER-104310, ER-107472, ER-136055, Erowa, Erowa Manual Chuck, Manual, Manual Chuck, MaxxUPC, Milling, MX-UPCMM68, Stainless, UPC
Manual Chuck

MaxxUPC UPC Stainless Pallet Manual Chuck comes fully assembled and ready to use. This product is 100% cross-compatible with the Erowa OEM system.

MaxxDesign Exclusive Features:

  • MaxxMagnum low-profile stainless manual chuck with 14,000 N locking force
  • 100% cross-compatible with OEM system

Product Information:

The MaxxUPC UPC Stainless Pallet Manual Chuck MaxxMagnum is a ready-to-use workholding solution engineered for precision and durability within Erowa UPC systems. Fully cross-compatible, the stainless steel UPC pallet is supplied with four segments and chucking spigots factory-aligned and ready to run, and includes removable handles for ease of handling (Robot Gripper Link not included). This package comes pre-assembled with the MaxxMagnum Low Profile Stainless Manual Chuck, delivering a robust 14,000 N locking force with excellent corrosion resistance and accuracy.

Product Specifics

  • Clamping Type: Manual (4 Nm for MaxxMacro pallet, 10 Nm for Magnum pallet)
  • Clamping Force: 14000 N
  • Spigot required :
    MaxxMacro® (System 3R) 605.2RS Short Manual Drawbar Stainless 1

    MaxxMacro® 605.2RS Short Manual Drawbar Stainless

    £29.00 GBP
    MaxxMacro® 605.2RS Short Manual Drawbar Stainless
    [MM-DRWBR101]
  • Reference Element Included:
    MaxxUPC (Erowa) 016917 UPC Aluminum Blank Electrode Pallet Ground Customizable 1

    MaxxUPC 016917 UPC Aluminum Blank Electrode Pallet Ground Customizable

    £865.00 GBP
    MaxxUPC 016917 UPC Aluminum Blank Electrode Pallet Ground Customizable
    [ME-PAUCA001]
  • Included Items: Removable Handles
  • Accessories:
    MaxxMagnun (System 3R) Manual Chuck Integrated Sealing Ring Spare Part 1

    MaxxMagnum Manual Chuck Integrated Sealing Ring Spare Part

    £314.00 GBP
    MaxxMagnum Manual Chuck Integrated Sealing Ring Spare Part
    [MM-MGACX001] ,
    MaxxUPC (Erowa) 036347 UPC Stainless GripperLink RCS 38mm Spare Part 1

    MaxxUPC 036347 UPC Stainless GripperLink RCS 38mm Spare Part

    £273.00 GBP
    MaxxUPC 036347 UPC Stainless GripperLink RCS 38mm Spare Part
    [ME-RGUCS038]
  • Compatible with:
    MaxxUPC (Erowa) 016841 UPC Stainless Pneumatic Chuck WEDM Rust Proof

    MaxxUPC 016841 UPC Stainless Pneumatic Chuck WEDM Rust Proof

    £5,996.00 GBP
    MaxxUPC 016841 UPC Stainless Pneumatic Chuck WEDM Rust Proof
    [ME-CUPCR000]
  • Automation: er robot gripper rcs
  • Repair Kit / Replacements:
    MaxxMagnun (System 3R) Manual Chuck Premium Locking Screw Replacement 1

    MaxxMagnum Manual Chuck Premium Locking Screw Replacement

    £117.00 GBP
    MaxxMagnum Manual Chuck Premium Locking Screw Replacement
    [MM-MGRPX001] ,
    MaxxMagnun (System 3R) Manual Chuck Internal Repair Kit WEDM Rust Proof 1

    MaxxMagnum Manual Chuck Internal Repair Kit WEDM Rust Proof

    £298.00 GBP
    MaxxMagnum Manual Chuck Internal Repair Kit WEDM Rust Proof
    [MM-RKMGX001] ,
    MaxxUPC (Erowa) 024562 UPC Stainless Centering Plate 1

    MaxxUPC 024562 UPC Stainless Centering Plate

    £392.00 GBP
    MaxxUPC 024562 UPC Stainless Centering Plate
    [ME-CPUCS000]

Product Details

  Product Name MaxxUPC UPC Stainless Pallet Manual Chuck MaxxMagnum
  SKU/Part Number ME-MGUCS000 [Old SKU: MX-UPCMM68]
  System MaxxUPC
  Cross-Compatible ER-136055, ER-016917, ER-104310, ER-107472
  System Repeatability 0.002mm
  Material Stainless 440C (57-60 HRC)
  Weight 16.29 kg | 35.91 lb
