Chuck

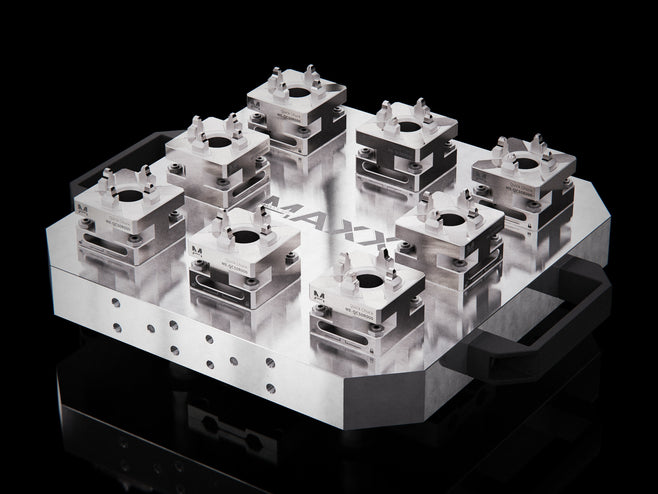

MaxxUPC UPC Aluminum Multi 8 QuickChuck Chuck comes fully assembled and ready to use. This product is 100% cross-compatible with the Erowa OEM system.
MaxxDesign Exclusive Features:
- Eight Maxx-ER QuickChucks factory-mounted, aligned, and ready to run
- 100% cross-compatible with OEM system
Product Information:
The MaxxUPC UPC Aluminum Multi 8 Quick Chuck is a high-precision, multi-fixture pallet designed to maximize throughput in Erowa ITS and UPC environments. Manufactured from aluminum, this pallet is supplied with eight Maxx-ER QuickChucks mounted to a common plate, all factory-assembled, aligned, and ready to run. Fully cross-compatible with Erowa ITS 50 and UPC systems, it delivers excellent accuracy and repeatability of ±0.002 mm, making it ideal for high-density electrode or workpiece setups. The pallet includes four UPC segments and chucking spigots, removable handles for easy handling, and offers customizable chuck spacing to suit specific application requirements.
Product Specifics
- Clamping Type: QuickChuck
- Clamping Force: 4000 N
- System: MaxxUPC to MaxxER
- Spigot required: ITS Chucking Spigot
-
Chuck Included:
[ME-QC50R000]Maxx-ER 034387 50 Stainless Manual Quick Chuck WEDM Rust Proof
Maxx-ER 034387 50 Stainless Manual Quick Chuck WEDM Rust Proof
Regular price £395.00 GBP -
Reference Element Included:
[ME-PAUCA001]MaxxUPC 016917 UPC Aluminum Blank Electrode Pallet Ground Customizable
MaxxUPC 016917 UPC Aluminum Blank Electrode Pallet Ground Customizable
Regular price £872.00 GBP - Included Items: MX-ACMTX001, Removable Handles
-
Accessories:
[ME-RGUCS038] ,MaxxUPC 036347 UPC Stainless GripperLink RCS 38mm Spare Part
MaxxUPC 036347 UPC Stainless GripperLink RCS 38mm Spare Part
Regular price £275.00 GBP[MX-ACMTX001]MaxxTooling Locking Bar QuickChuck Spare Part
MaxxTooling Locking Bar QuickChuck Spare Part
Regular price £8.00 GBP -
Compatible with:
[ME-CUPCR000]MaxxUPC 016841 UPC Stainless Pneumatic Chuck WEDM Rust Proof
MaxxUPC 016841 UPC Stainless Pneumatic Chuck WEDM Rust Proof
Regular price £6,039.00 GBP - Automation: er robot gripper rcs
-
Repair Kit / Replacements:
[ME-CPUCS000]MaxxUPC 024562 UPC Stainless Centering Plate
MaxxUPC 024562 UPC Stainless Centering Plate
Regular price £395.00 GBP
Product Details
| Product Name | MaxxUPC UPC Aluminum Multi 8 Quick Chuck |
| SKU/Part Number | ME-QCUCA008 [Old SKU: MX-UPCERX8] |
| System | MaxxUPC |
| Cross-Compatible | ER-016917, ER-104310, ER-107472 |
| System Repeatability | 0.002mm |
| Material | Aluminum |
| Weight | 18.53 kg | 40.85 lb |
Returns Policy
You may return most new, unused items within 30 days of delivery for a refund. There is a 20% restock fee if the item is returned due to customer error. The customer is responsible for the return shipping costs if the return is a result of your error (Not if received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the 'Complete Orders' link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Shipping
We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.
When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.
Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.
International shipments it is the customers responsibility to determine if there are any taxes or import duties payable and to make arrangements to clear and pay these fees if applicable.Can a MaxxTooling pneumatic chuck be actuated with hydraulic fluid pressure?
No. MaxxTooling pneumatic chucks are designed to operate with compressed air rather than hydraulic fluid pressure.
Read full answerAre activation handles included with MaxxTooling quick chucks?
Activation handles are included with MaxxTooling quick chucks.
Read full answerWhat mounting screws are used to secure a stainless manual quick chuck?
The chuck has M8 threaded holes for mounting from the back.
Alternatively, you can use M6 screws with nuts. In some cases, the base or mounting plate has an M6 set screw. It is threaded into the base, the chuck is mounted, and then the nuts are tightened.
Read full answerCan rust-proof chucks for Wire EDM WEDM operate submerged in water?
Yes. MaxxMacro (System 3R OEM 100% cross-compatible) chucks specified for submerged Wire EDM WEDM service can operate in the intended water-based dielectric. Regular maintenance is recommended.
Read full answerWhy do similar MaxxTooling chucks have different prices?
The price difference may be due to one chuck being a rust-proof version and the other being a standard version.
Read full answerCan rust-proof chucks be exposed to washing detergent?
Yes. The rust-proof chuck can tolerate washing detergent.
Read full answerWhat should I do if a pneumatic chuck leaks air from its bottom plate and hesitates when unclamping?
A pinched O-ring at the bottom plate is one possible cause of the leak and hesitant unclamping. This can happen during mounting.
The chuck can be returned to MaxxTooling for service, or serviced locally. If the O-ring is pinched, the back plate is removed and the seal is realigned or replaced.
Cross-border returns and replacement shipments can incur import duties, making the service more costly. Contact MaxxTooling to arrange the return or discuss local service.
Read full answerDoes MaxxTooling offer a manual chuck that accepts a long drawbar and both 54 mm and 70 mm pallets?
MaxxTooling does not offer a manual chuck for a long drawbar and both 54 mm and 70 mm pallets.
A suitable pneumatic chuck can be actuated with an air gun as an alternative, avoiding frequent drawbar changes.
Read full answerDoes MaxxTooling offer three-jaw or four-jaw chucks?
Our chucks don’t have jaws — they’re designed to clamp MaxxMacro (System 3R OEM 100% cross-compatible) or Maxx-ER (Erowa OEM 100% cross-compatible) system fixtures such as holders, vises, and similar components. They’re not intended to clamp workpieces directly.
Read full answerCan I align a workholding chuck without a master?
Yes, you can align a workholding chuck without a master, but using a master is the recommended standard to ensure high precision and verified accuracy.
Without a master, some customers indicate the locators directly, splitting the measured distance to find the center. Another method is to place a reference item in the chuck, indicate a surface, rotate it 180°, and compare the readings across both axes until they agree.
However, these methods only provide approximate alignment. The reference item’s own errors affect the result, and making repeated adjustments takes extra setup time. To eliminate reference errors and achieve exact, repeatable alignment, using a dedicated master is the recommended solution.
Read full answerNo FAQs are available for this product yet.
