Chuck
MaxxUPC Stainless Multi 8 Manual QuickChuck Chuck Adapter to MaxxMacro comes fully assembled and ready to use. This product is 100% cross-compatible with the Erowa OEM system.
MaxxDesign Exclusive Features:
- Eight MaxxMacro Manual QuickChucks factory-mounted, aligned, and ready to run
- 100% cross-compatible with OEM system
Product Information:

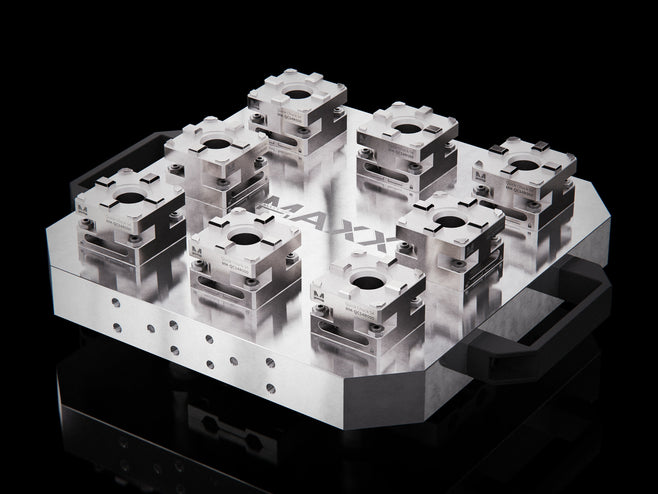

The MaxxUPC UPC Aluminum Multi 8 Manual Quick Chuck Adapter to MaxxMacro is a high-precision, multi-workpiece pallet designed to bridge Erowa UPC and System 3R Macro environments. Manufactured from aluminum, this pallet is supplied with eight MaxxMacro Manual QuickChucks mounted to a common plate, all factory-assembled, aligned, and ready to run. Fully cross-compatible with Erowa UPC and System 3R systems, it delivers ±0.002 mm accuracy for repeatable setups in high-density production. The pallet includes four UPC segments and chucking spigots, removable handles for safe handling, and offers customizable chuck spacing to meet specific application requirements.
Product Specifics
- Clamping Type: QuickChuck
- Clamping Force: 4000 N
- System: MaxxUPC to MaxxMacro
-
Spigot required
:
[MM-DRWBR101]MaxxMacro® 605.2RS Short Manual Drawbar Stainless
MaxxMacro® 605.2RS Short Manual Drawbar Stainless
Regular price £29.00 GBP -
Chuck Included:
[ME-QC50R000]Maxx-ER 034387 50 Stainless Manual Quick Chuck WEDM Rust Proof
Maxx-ER 034387 50 Stainless Manual Quick Chuck WEDM Rust Proof
Regular price £390.00 GBP -
Reference Element Included:
[ME-PAUCA001]MaxxUPC 016917 UPC Aluminum Blank Electrode Pallet Ground Customizable
MaxxUPC 016917 UPC Aluminum Blank Electrode Pallet Ground Customizable
Regular price £861.00 GBP - Included Items: MX-ACMTX001, Removable Handles
-
Accessories:
[ME-RGUCS038] ,MaxxUPC 036347 UPC Stainless GripperLink RCS 38mm Spare Part
MaxxUPC 036347 UPC Stainless GripperLink RCS 38mm Spare Part
Regular price £272.00 GBP[MX-ACMTX001]MaxxTooling Locking Bar QuickChuck Spare Part
MaxxTooling Locking Bar QuickChuck Spare Part
Regular price £8.00 GBP -
Compatible with:
[ME-CUPCR000]MaxxUPC 016841 UPC Stainless Pneumatic Chuck WEDM Rust Proof
MaxxUPC 016841 UPC Stainless Pneumatic Chuck WEDM Rust Proof
Regular price £5,965.00 GBP - Automation: er robot gripper rcs
-
Repair Kit / Replacements:
[MM-RKQCX001] ,MaxxMacro® 54 Manual QuickChuck Repair Kit WEDM Rust Proof
MaxxMacro® 54 Manual QuickChuck Repair Kit WEDM Rust Proof
Regular price £214.00 GBP[ME-CPUCS000]MaxxUPC 024562 UPC Stainless Centering Plate
MaxxUPC 024562 UPC Stainless Centering Plate
Regular price £390.00 GBP
Product Details
| Product Name | MaxxUPC UPC Aluminum Multi 8 Manual Quick Chuck Adapter to MaxxMacro |
| SKU [Old SKU] | ME-QCBBA008 [MX-UPC3RX8] |
| System | MaxxUPC |
| Cross-Compatible | ER-016917, ER-104310, ER-107472 |
| System Repeatability | 0.002mm |
| Material | Aluminum | Chuck: Stainless 440C (57-60HRC) |
| Weight | 33.0 kg | 72.75 lb |
