Replacement

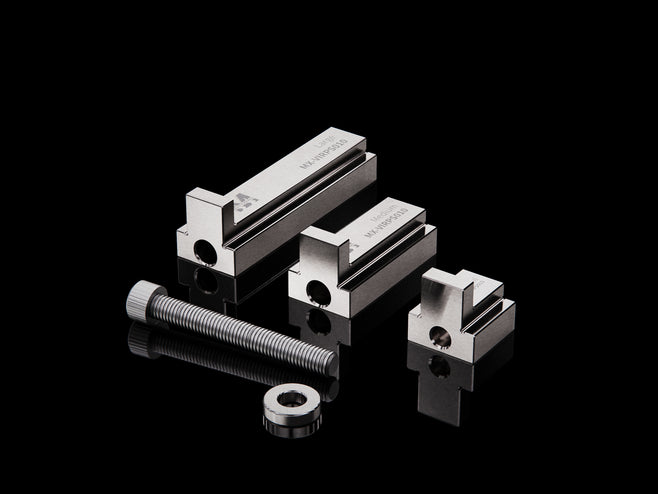

MaxxTooling Jaw Kit Replacement 0-100 UnoSet (Set of 3 individual jaws) This product can be used to complement products and product lines for various MaxxTooling systems, such as MaxxMacro, MaxxMagnum, Maxx-ER, MaxxUPC, and others. UnoSet Jaw Kit Replacement, includes jaws and 1 screw.
Product Specifics
- Included Items: 3 Jaws, 1x Screw, 1x Washer
- Max. Torque: 6 Nm
- Clamping Range: 0-100 mm (0-3.93 in)
-
Compatible with:
[ME-VI50S001] ,Maxx-ER 008814 50 Stainless Precision Vise 0-100 UnoSet WEDM Rust Proof
Maxx-ER 008814 50 Stainless Precision Vise 0-100 UnoSet WEDM Rust Proof
Regular price £872.00 GBP[ME-VI50S002] ,Maxx-ER 008856 50 Stainless 360° Rotatable Pendulum Vise 0-100 UnoSet
Maxx-ER 008856 50 Stainless 360° Rotatable Pendulum Vise 0-100 UnoSet
Regular price £1,187.00 GBP[ME-VI50S003] ,Maxx-ER 008842 50 Stainless Pendulum Vise 0-100 UnoSet
Maxx-ER 008842 50 Stainless Pendulum Vise 0-100 UnoSet
Regular price £996.00 GBP[ME-VI50S004] ,Maxx-ER 50 Stainless Single Jaw Precision Vise 0-100 UnoSet WEDM Rust Proof
Maxx-ER 50 Stainless Single Jaw Precision Vise 0-100 UnoSet WEDM Rust Proof
Regular price £872.00 GBP[MM-VI54S001] ,MaxxMacro® 54 Stainless Precision Vise 008814 0-100 UnoSet Performance WEDM Rust Proof
MaxxMacro® 54 Stainless Precision Vise 008814 0-100 UnoSet Performance WEDM Rust Proof
Regular price £833.00 GBP[MM-VI54S002]MaxxMacro® 54 360° Rotatable Pendulum Vise Performance
MaxxMacro® 54 360° Rotatable Pendulum Vise Performance
Regular price £1,418.00 GBP
Product Details
| Product Name | MaxxTooling Jaw Kit Replacement 0-100 UnoSet (Set of 3 individual jaws) |
| SKU/Part Number | MX-VIRPS011 |
| System | MaxxTooling |
| Cross-Compatible | ER-048285, ER-003838, ER-003839, ER-003840 |
| System Repeatability | 0.002mm |
| Weight | 0.2 kg | 0.44 lb |
| Dimensions | 65 mm x 20 mm x 57 mm |
Returns Policy
You may return most new, unused items within 30 days of delivery for a refund. There is a 20% restock fee if the item is returned due to customer error. The customer is responsible for the return shipping costs if the return is a result of your error (Not if received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the 'Complete Orders' link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Shipping
We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.
When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.
Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.
International shipments it is the customers responsibility to determine if there are any taxes or import duties payable and to make arrangements to clear and pay these fees if applicable.Does MaxxTooling offer soft jaws for self-centering vises?
Yes. Soft jaws and other jaw types are available for MaxxTooling self-centering vises.
Read full answerWhat is the difference between hard and soft vise jaws?
MaxxVise Hard jaws are manufactured from hardened tool steel, featuring precision-ground flat surfaces or aggressive serrated teeth. They are designed for first-operation roughing cycles on raw bar stock, billets, and castings, where maximum holding grip and wear resistance are required. While hard jaws withstand aggressive cutting forces without deforming, their hardened serrations indent the workpiece material and leave visible clamping marks on finished surfaces.
MaxxVise Soft jaws are unhardened blanks typically machined from aluminum. Machinists mill custom pockets, steps, or curved contours directly into the soft jaw faces to match the exact geometry of a partially machined part during second-operation work. This customized contact distributes clamping pressure across delicate or contoured surfaces, preventing surface indentation, damping vibration, and providing precise part relocation relative to the machine spindle.
Read full answerNo FAQs are available for this product yet.
