SKU: MX-MM5979

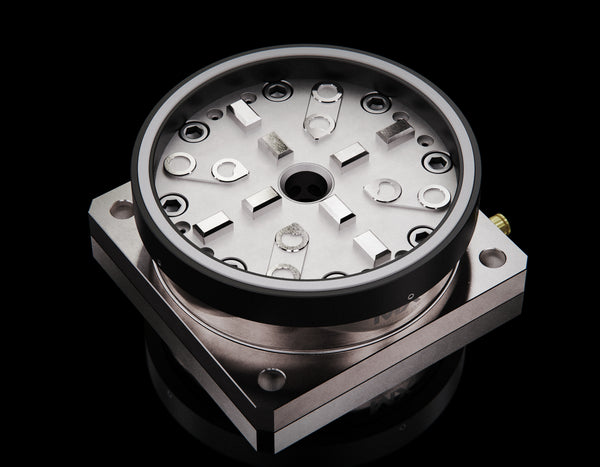

MaxxMagnum Pneumatic Low Profile 680103 Chuck

Regular price £2,379.00 GBP Sale

MaxxMagnum Pneumatic Low Profile 680103 Chuck 160x160 Base Plate is 100% cross compatible with System 3R 3R-680.10-3 Macro Magnum Low Profile Pneumatic Chuck. The MaxxMagnum Performance Pneumatic Low Profile...

£2,379.00
Please visit our updated product page to order this product.

MaxxMagnum Pneumatic Low Profile 680103 Chuck 160x160 Base Plate is 100% cross compatible with System 3R 3R-680.10-3 Macro Magnum Low Profile Pneumatic Chuck.

The MaxxMagnum Performance Pneumatic Low Profile Chuck is rust resistant and provides the best balance of durability , accuracy and design.

  • Required drawbar MaxxMacro MX-STDR3R-1
  • Required air pressure 6±1 bar
  • Air-blast cleaning of the Z-references and Turbo-locking of MaxxMagnum pallets
  • Repeatability: 0.002 mm (0.00008“)
  • Locking Force: 16 000 N



  Version Pneumatic MaxxMagnum Rust Resistant for use with MX-STDR3R-1 Short Drawbar - 160 x 160 Base Plate
  Material Stainless Steel 440c, 57-60HRC
  Application Suitable for 5 Axis Machining 100% compatible with all MacroMagnum products





Returns Policy

You may return most new, unused items within 30 days of delivery for a refund. There is a 20% restock fee if the item is returned due to customer error. The customer is responsible for the return shipping costs if the return is a result of your error (Not if received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the 'Complete Orders' link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

International shipments it is the customers responsibility to determine if there are any taxes or import duties payable and to make arrangements to clear and pay these fees if applicable.

Discover How MaxxMagnum Pneumatic Chucks Work

Published on: Nov 26, 2024

When precision, durability, and strength meet, the result is the MaxxMagnum Pneumatic Chuck – a versatile workholding solution designed to elevate machining performance. Fully assembled and ready to use, these chucks are 100% cross-compatible with the System 3R Macro OEM system, making them ideal for demanding machining applications.

What Sets MaxxMagnum Apart?

The MaxxMagnum system is a larger, more robust variant of the MaxxMacro system. Its high clamping force and reference surfaces positioned farther from the chuck center ensure “Macro class” stability and accuracy, even under high machining forces. This makes it the perfect solution for applications requiring exceptional rigidity and precision.

Additionally, the double references of the MaxxMagnum chucks allow compatibility with both MacroMagnum and the extensive range of Macro pallets, providing unmatched versatility.
