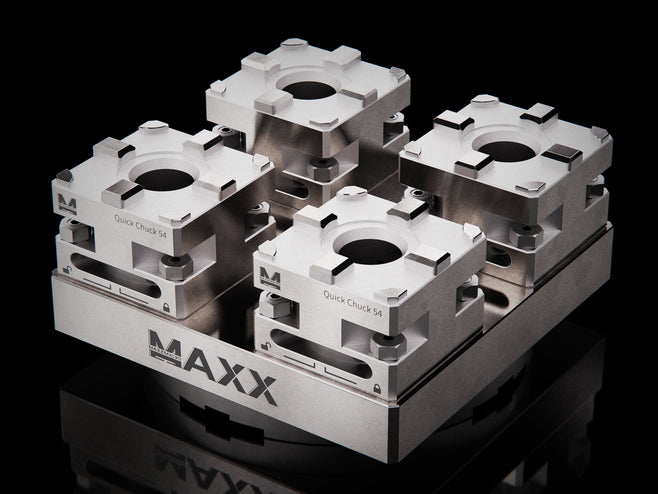

MaxxMagnun (System 3R) 156 Pallet with MaxxMacro 54 Chuck Multi 4 QuickChuck 1

All Images © 2019-2026 Maxx Tooling All Rights Reserved.

CAD models for CAM simulation available upon request. Contact us.

SKU: MM-PAQCS564
SKU copied to clipboard
MaxxMacro
MaxxMagnum
MaxxMacro 54
Corrosion Resistant
Code Carrier
Manual Bar

MaxxMagnum 156 Pallet with MaxxMacro 54 Chuck Multi 4 QuickChuck

£3,121.00 GBP Sale

Excl. VAT, duties, and taxes.

MaxxMagnum 156 Pallet with MaxxMacro 54 Chuck Multi 4 QuickChuck comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM...
Availability: Approximately 2-3 weeks, contact us for more information.
Availability: Approximately 2-3 weeks, contact us for more information.

£3,121.00
156, 54, Adapter, Chuck, Chucking, Code Carrier, Manual, MaxxMacro, MaxxMagnum, Milling, MultiChuck, MX-MM68151X4M, QuickChuck, Stainless, System 3R, System 3R Chuck
Chuck

MaxxMagnum 156 Pallet with MaxxMacro 54 Chuck Multi 4 QuickChuck comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. MaxxMagnum to four MaxxMacro 54 QuickChuck, offering better accessibility and faster product changes.

MaxxDesign Exclusive Features:

  • Multi-chuck system optimizes space and reduces setup time
  • Bar-actuated QuickChucks for fast, reliable clamping

Product Information:

The MaxxMagnum 156 Pallet with MaxxMacro 54 Multi 4 QuickChuck is engineered for durability and precision. Built from a rust-resistant, hardened stainless steel base plate—not cast—the pallet provides long-term stability in demanding environments. It comes equipped with hardened reference elements and four pre-mounted MaxxMacro 54 chucks, making it fully compatible with System 3R Macro Magnum setups and ready for immediate use.

Product Specifics

  • Clamping Type: QuickChuck
  • Clamping Force: 4 kN
  • Drawbar required :
    MaxxMacro® (System 3R) 605.2RS Short Manual Drawbar Stainless 1

    MaxxMacro® 605.2RS Short Manual Drawbar Stainless

    £29.00 GBP
    MaxxMacro® 605.2RS Short Manual Drawbar Stainless
    [MM-DRWBR101]
  • Chuck Included:
    MaxxMacro® (System 3R) 54 Stainless Manual Quick Chuck WEDM Rust Proof 1

    MaxxMacro® 54 Stainless Manual Quick Chuck WEDM Rust Proof

    £549.00 GBP
    MaxxMacro® 54 Stainless Manual Quick Chuck WEDM Rust Proof
    [MM-QC54R000]
  • Reference Element Included:
    MaxxMagnun (System 3R) 156 Stainless 681.51-SA Unhardened Pallet with Reference Element WEDM Rust Proof 1

    MaxxMagnum 156 Stainless 681.51-SA Unhardened Pallet with Reference Element WEDM Rust Proof

    £702.00 GBP
    MaxxMagnum 156 Stainless 681.51-SA Unhardened Pallet with Reference Element WEDM Rust Proof
    [MM-PA56S002]
  • Included Items: MX-ACMTX001
  • Automation: code carrier,
  • Repair Kit / Replacements:
    MaxxMacro (System 3R) QuickChuck Internal Repair kit 1

    MaxxMacro® 54 Manual QuickChuck Repair Kit WEDM Rust Proof

    £215.00 GBP
    MaxxMacro® 54 Manual QuickChuck Repair Kit WEDM Rust Proof
    [MM-RKQCX001]

Product Details

  Product Name MaxxMagnum 156 Pallet with MaxxMacro 54 Chuck Multi 4 QuickChuck
  SKU/Part Number MM-PAQCS564 [Old SKU: MX-MM68151X4M]
  System MaxxMagnum  (System 3R 100% Cross-Compatible)
  System Repeatability 0.002mm
  Material Pallet: Stainless Unhardened, Reference Element: Stainless S136 (43-45 HRC)
  Weight 7.37 kg | 16.25 lb
