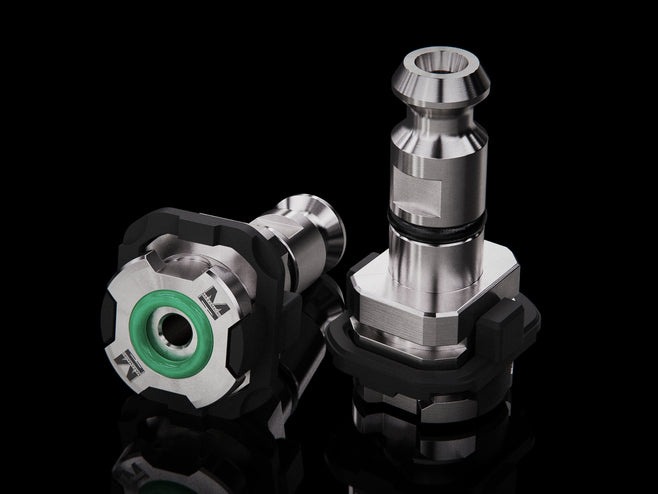

MaxxMacro Drawbar Macro Combi 40516 Stainless comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. MaxxDesign Exclusive Features:...
MaxxMacro Drawbar Macro Combi 40516 Stainless comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system.
MaxxDesign Exclusive Features:
High quality materials.
100% cross-compatible with OEM system
Product Information:
MaxxMacro Drawbar Macro Combi 40516 Stainless is 100% cross compatible with System 3R Drawbar 3R-405.16E Macro Combi Drawbar
MaxxMacro Drawbars includes the plastic clip, flushing o-rings and are machined ABCD all locations for proper fit on toolchanger fingers and precision seating of pallet.
100% cross compatible with System 3R Macro Tooling Systems 3R-405.16E 3R-405.16 3R-405.16EE
Product Details:
Product Name
MaxxMacro Drawbar Macro Combi 40516 Stainless
SKU
MM-DRWBR110 (MX-40516)
Pallet Included
See print
System
MaxxMacro (System 3R 100% Cross-Compatible)
Repeatability
0.002mm
Material
See above
Cross-Compatible
3R-405.16, 3R-405.16E, 3R-405.16EE
Dimensions
-
