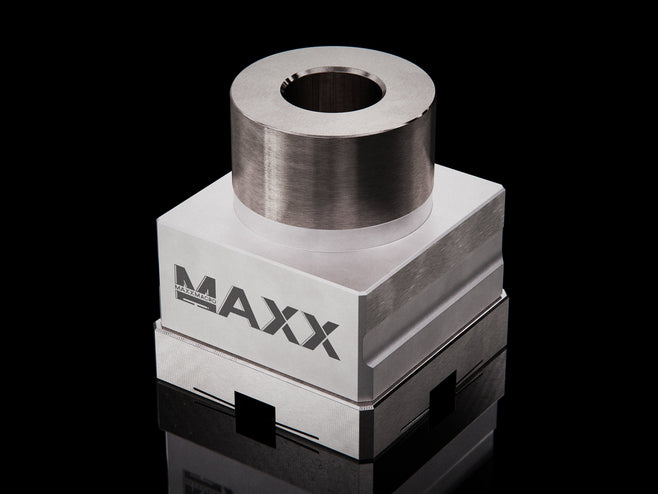

MaxxMacro® (System 3R) 54 Stainless 656 Control Ruler Master Performance 1 © MAXXTOOLING

All Images © 2019-2026 Maxx Tooling All Rights Reserved.

CAD models for CAM simulation available upon request. Contact us.

SKU: MM-MA54S001
SKU copied to clipboard
MaxxMacro
MaxxMacro 54
Corrosion Resistant

MaxxMacro® 54 Stainless 656 Control Ruler Master Performance

£792.00 GBP Sale

Excl. VAT, duties, and taxes.

MaxxMacro 54 Stainless Control Ruler Master Performance comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. Check mandrel...
Availability: Approximately 2-3 weeks, contact us for more information.
Availability: Approximately 2-3 weeks, contact us for more information.

£792.00
3R-656, 3R-656.1, 54, EDM, Master, Master Control Ruler, MaxxMacro, Measuring, Milling, MX-CH656, Stainless, System 3R, System 3R Master, System 3R Master Control Ruler
Master

MaxxMacro 54 Stainless Control Ruler Master Performance comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. Check mandrel with ground C-reference for setting MaxxMacro chucks.

MaxxDesign Exclusive Features:

  • Includes MaxxMacro 54 Performance Pallet
  • 100% cross-compatible with OEM system

Product Information:

The MaxxMacro 54 High Performance Stainless Control Ruler is a precision alignment tool designed for 100% cross compatibility with System 3R-656.1 Control Ruler and all Macro-compatible products. Built with a ground C-reference, it ensures accurate mandrel checking and reliable chuck setup. Engineered for high performance, this control ruler delivers a repetition accuracy within 0.002 mm. It comes mounted on a MaxxMacro 54 Rust-Proof Performance Pallet, providing both stability and long-lasting durability. Like all MaxxMacro masters and gauges, it includes a Quality Certificate of calibration for full traceability and quality assurance.

Product Specifics

  • Reference Element Included:
    MaxxMacro® (System 3R) 54 Stainless 651.7E-P Performance Pallet with 6mm Dowels WEDM Rust Proof 1

    MaxxMacro® 54 Stainless 651.7E-P Performance Pallet with 6mm Dowels WEDM Rust Proof

    £40.00 GBP
    MaxxMacro® 54 Stainless 651.7E-P Performance Pallet with 6mm Dowels WEDM Rust Proof
    [MM-PA54W006]

Product Details

  Product Name MaxxMacro® 54 Stainless 656 Control Ruler Master Performance
  SKU/Part Number MM-MA54S001 [Old SKU: MX-CH656]
  System MaxxMacro  (System 3R 100% Cross-Compatible)
  Cross-Compatible 3R-656 [ 3R-656.1 ]
  System Repeatability 0.002mm
  Material Stainless 420C
  Weight 0.82 kg | 1.81 lb

Returns Policy

You may return most new, unused items within 30 days of delivery for a refund. There is a 20% restock fee if the item is returned due to customer error. The customer is responsible for the return shipping costs if the return is a result of your error (Not if received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the 'Complete Orders' link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

International shipments it is the customers responsibility to determine if there are any taxes or import duties payable and to make arrangements to clear and pay these fees if applicable.
Can a MaxxMacro 54 master be used on a MaxxMacro 70 chuck?

Yes. The system is downward compatible, meaning MaxxMacro (System 3R OEM 100% cross-compatible) 54 fixtures work on MaxxMacro 54, MaxxMacro 70, and MaxxMagnum chucks; MaxxMacro 70 fixtures work on MaxxMacro 70 and MaxxMagnum chucks; and MaxxMagnum fixtures work only on MaxxMagnum chucks.

That said, regarding masters, we recommend using the same system size.

Read full answer
What is the difference between short-shaft and long-shaft masters?

A long-shaft master gives the indicator more contact surface when checking angular alignment on a horizontally mounted chuck, such as in a lathe.

Read full answer
Does MaxxTooling offer annual calibration for masters?

MaxxTooling does not provide annual calibration of masters in-house. A local CMM inspection shop can calibrate a master.

Read full answer
Do MaxxTooling Masters come with a certificate, and which characteristics does it report?

Yes. Every MaxxTooling Master is supplied with a certificate. Commonly reported characteristics include:

  • Datum straightness
  • Parallelism
  • Perpendicularity
  • Concentricity

The measured features and tolerances depend on the particular Master. The tooling system’s stated 2-micron repeatability is not a tolerance for every individual feature.

Read full answer
