SKU: MM-QCR1S002
MaxxMACRO
MaxxMacro 54
Corrosion Resistant
Manual Bar
Suited for Submerged

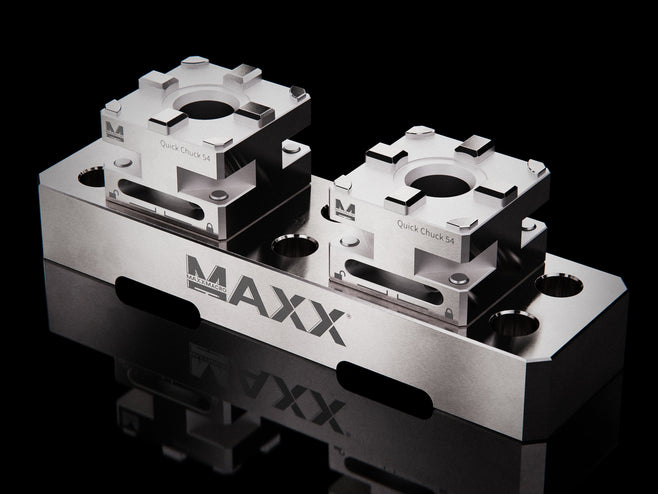

MaxxMacro 54 Multi 2 QuickChuck Precision Rail

Regular price £1,340.00 GBP Sale

MaxxMacro 54 Multi 2 QuickChuck Precision Rail comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. MaxxDesign Exclusive...
Availablity: In Stock
Availablity: In Stock

£1,340.00

MaxxMacro 54 Multi 2 QuickChuck Precision Rail comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system.

MaxxDesign Exclusive Features:

  • High quality materials.
  • 100% cross-compatible with OEM system

Product Information:

MaxxMacro 54 Twin Chuck Precision Rail System is 100% cross-compatible with System 3R Macro.

  • System includes 2 MaxxMacro QuickChucks mounted on common mounting plate.
  • MaxxMacro Quick Chucks Required drawbar MaxxMacro HP Manual 6052 Drawbar Stainless MaxxPerformance
  • Can be used for multiple operations and can be mounted to Delphin Pallets
  • Accuracy: Static repeat ability accuracy is ±0.002mn.



Product Details:

Product Name MaxxMacro 54 Multi 2 QuickChuck Precision Rail
SKU MM-QCR1S002 (MX-3RM56X2)
Pallet Included See print
System MaxxMacro (System 3R 100% Cross-Compatible)
Repeatability 0.002mm
Material Chuck: Stainless 440C 57-60HRC (Rail: 420 57-60HRC)
Cross-Compatible 3R-600.24-S
Dimensions -
Weight -

Returns Policy

You may return most new, unused items within 30 days of delivery for a refund. There is a 20% restock fee if the item is returned due to customer error. The customer is responsible for the return shipping costs if the return is a result of your error (Not if received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the 'Complete Orders' link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

International shipments it is the customers responsibility to determine if there are any taxes or import duties payable and to make arrangements to clear and pay these fees if applicable.

MaxxMacro Multi QuickChuck Precision Rail

Published on: Mar 5, 2024

Looking for an inexpensive way to automate your electrode machining? Imagine achieving 72 hours or more of unattended run time without the need for a robot. Sounds crazy, right? 🤪 But it's not a dream anymore; it's a reality with the MaxxMacro 54 Multi Quick Chuck Precision Rail System.


🎥 In our latest video, we delve into how this innovative system can transform your machining operations, elevating productivity and maximizing spindle time. Watch as we unveil the simple yet highly effective design of the MaxxMacro 54, demonstrating its versatility and modular setup that allows for seamless holder changes and rapid adjustments.

Key Features:

  • Cross Compatibility: Enjoy 100% compatibility with System 3R Macro, ensuring effortless integration with your existing setups.
  • Precision Accuracy: Experience impressive static repeatability accuracy of ±0.002mm, ensuring consistent and reliable machining results.
  • Robust Stability: With a formidable force power of 4000N, this system delivers the strength and stability required for even the most demanding machining tasks.
Say goodbye to unnecessary downtime and hello to enhanced machining capabilities. Upgrade to the MaxxMacro 54 Multi Quick Chuck Precision Rail System today and witness the difference it can make in your workshop. 💪


🛒 Shop Now: MaxxMacro Chucks

Don't miss out on this opportunity to revolutionize your machining processes. Invest in the MaxxMacro 54 and unlock a new level of efficiency and precision. Get ready to take your machining to greater heights!

MaxxMacro® Twelve 54 QuickChucks + Four 100 QuickChuck Multi-System for Makino F5 Machines

Published on: Oct 10, 2017

Maxx Tooling is excited to showcase a recent project for one of our valued customers in Canada, featuring a custom-designed 12 Mini Plus 4 D75 chuck system, compatible with System 3R®. This compact machining solution is engineered to optimize your Makino F5 machine without the need for robotics.

The system includes 16 chucks, all quick-lock mounted on common rails, designed to fit perfectly on a 1000MM by 500MM table. With a laser positioned in the top left-hand corner, this setup maximizes precision and efficiency.

This versatile solution allows manufacturers to capitalize on Makino automation while reducing the complexity of robotics integration. Whether for small-scale production or larger operations, Maxx Tooling can design and engineer multi-chuck systems tailored to meet the unique needs of any application.

And the best part? The total cost of this advanced system is under $13,000, providing excellent value for manufacturers seeking to enhance their machining processes.

Reach out to Maxx Tooling today to learn how we can help optimize your operations with custom solutions designed specifically for your needs.

MaxxMacro® Eighteen QuickChuck Precision Rail for Makino F5 Machines

Published on: Oct 10, 2017

Maxx Tooling recently completed an exciting project for one of our valued customers in Canada: the MaxxMacro® Eighteen QuickChuck Precision Rail System, designed to be 3R® compatible and deliver a compact machining solution for Makino F5 machines.

This system features 18 QuickChucks, all quick-lock mounted on common rails, offering seamless integration for efficient machining. Designed to fit perfectly on a 1000MM by 500MM table, it maximizes workspace while ensuring reliable performance. A laser is positioned in the top left-hand corner for precise alignment, enhancing setup accuracy.

The MaxxMacro® Eighteen QuickChuck Precision Rail is a fantastic way to optimize your Makino automation without the need for complex robotics. This versatile system streamlines your workflow and reduces setup times, delivering efficiency and precision at a lower cost.

Maxx Tooling specializes in engineering and designing custom multi-chuck systems tailored to fit almost any application and meet the specific needs of our customers. The total cost for this project? Less than $15,000—an excellent investment for businesses seeking to enhance their operations.

Contact Maxx Tooling today to learn how we can create a solution that maximizes your equipment's potential and drives productivity.

The 2024 SKU Update for Enhanced Clarity and Compatibility

Published on: Nov 8, 2024

At MaxxTooling, we're always looking for ways to improve your experience with our products and services. This year, we introduced a major update to our SKU system, designed to simplify product identification, improve inventory management, and enhance your overall experience. Here’s what this new system brings to the table—and how it benefits you.

What is a SKU? A SKU (Stock Keeping Unit) is a unique identifier used to track a product in inventory and make it easy to identify.

Why Did We Update the SKU System?

As our product family expands, we needed a improved SKU system that would deliver the following benefits:

  1. Consistency and Clarity: SKUs now follow a single, well-defined rule, making them easier to read and understand.
  2. Family and Product Matching: Each SKU reflects its product family, allowing you to identify compatible items more easily.
  3. Support for Future Growth: The new format makes it simple to accommodate new product introductions, family expansions, and variations.
  4. Integration with Adapter Plates and Custom Products: The revised structure also allows for easier integration of adapter plate codes, optional parts, and other customization options.
  5. Better ERP and Spreadsheet Integration: Standardized SKUs streamline data entry, making it easier to integrate with ERP systems, spreadsheets, and custom properties.

What Does the New SKU Format Look Like?

Our SKUs now follow a standardized, informative structure:

MX-XXXXMSSS(-O-CODE)

Here’s what each section means:

  • Prefix (MX/MM): Identifies MaxxTooling or MaxxMacro as the source, with additional prefixes planned for future products.
  • Family Code (XXXX): A four-character code indicating the product family.
  • Material Code (M): One character indicating the material.
  • Size Code (SSS): Three digits denoting the product’s size or model.
  • Optional Code (O): A single character used for optional features, such as performance enhancements, index-disabled features, MXRefix systems, etc.
  • Adaptation Code (-CODE): Optional codes for adapter plates, machine-specific modifications, or client custom modifications.

Revision Dates and Compatibility Page

The SKU update process has occurred gradually over the year, with different products receiving updates at different times. Each updated SKU has a specific Revision Date that you can check to ensure compatibility with your needs.

To make this transition easier, we’ve created a dedicated SKU Compatibility Page, where you can:

  • Look up compatibility between old and new SKU formats
  • Check revision dates for each product
  • Access the latest product pages for detailed specifications

Visit the SKUs Compatibility Page

New Laser Markings for Improved Operator Experience

Along with our SKU system update, we’ve also made a significant improvement to the way we laser engrave our products. All of our items now feature new, detailed laser markings that provide essential product information directly on the part. This includes data such as ports, maximum torque values, and other key specifications. These updates make it easier for operators to quickly identify important features, improving workflow efficiency and reducing the chance of errors. The enhanced laser markings are part of our ongoing commitment to making your experience with our products as seamless and efficient as possible.

Our Commitment to Continual Improvement

Updating our SKU system is just the beginning. As we continue expanding and enhancing our product offerings, we’ll keep refining this system to support future growth and product variations. Our goal is to make it as easy as possible for you to select, track, and integrate our products into your workflows.

Thank you for choosing MaxxTooling as your workholding partner. Please explore our SKU Compatibility Page for more information, or feel free to reach out if you have any questions.

*This update was applied to the MaxxMacro® and MaxxMagnum® brands, but currently does not apply to Maxx-ER® or MaxxUPC®.
