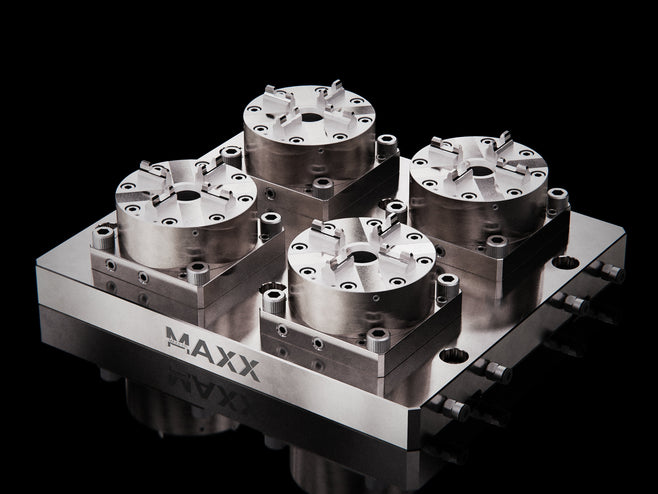

Maxx-ER (Erowa) 100 P Stainless Multi 4 Pneumatic Chuck System 1
All Images © 2019-2026 Maxx Tooling All Rights Reserved
SKU: ME-PER2S004
SKU copied to clipboard
Maxx-ER
Maxx-ER 100
Maxx-ER P
Corrosion Resistant
Pneumatic

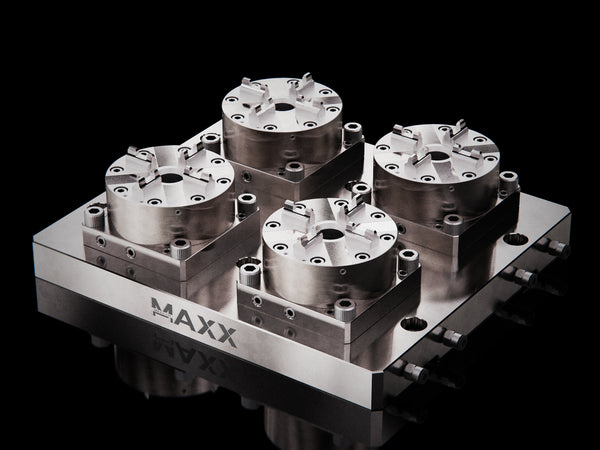

Maxx-ER 100 P Stainless Multi 4 Pneumatic Chuck System

£4,813.00 GBP Sale

Excl. VAT, duties, and taxes.

Maxx-ER 100 P Stainless Multi 4 Pneumatic Chuck System comes fully assembled and ready to use. This product is 100% cross-compatible with the Erowa ITS (Integrated Tooling System)...
Availability: Approximately 2-3 weeks, contact us for more information.
Availability: Approximately 2-3 weeks, contact us for more information.

£4,813.00
100, 100 P, Chuck, Chucking, ER-035519, Erowa, Erowa Chuck, Maxx-ER, Milling, Mounting, MultiChuck, MX-ER100PX4, P, Pneumatic, Stainless
Chuck

Maxx-ER 100 P Stainless Multi 4 Pneumatic Chuck System comes fully assembled and ready to use. This product is 100% cross-compatible with the Erowa ITS (Integrated Tooling System) OEM system. Precision rail with multiple chucks for easier installation and a more space-saving setup.

MaxxDesign Exclusive Features:

  • Four 100 P pneumatic chucks with repeatability within 0.002 mm.
  • 100% cross-compatible with OEM system.

Product Information:

The Maxx-ER Stainless Multi Pneumatic Chuck is a high-density, precision workholding solution designed to maximize throughput in space-constrained machining environments. This pneumatic chuck system is 100% cross-compatible with the EROWA ITS system and integrates multiple chucks within a compact footprint, enabling efficient multi-part setups without compromising accuracy. Manufactured entirely from stainless steel, the system delivers long-term durability and excellent value. Precision performance is guaranteed with 0.002 mm (0.00008") repeatability and 0.005 mm (0.0002") chuck-to-chuck flatness, making it well suited for demanding, high-precision production applications.

Product Specifics

  • Clamping Type: Pneumatic (6 bar)
  • Clamping Force: 6000 N
  • Spigot required: ITS Chucking Spigot
  • Chuck Included:
    Maxx-ER (Erowa) 035519 100 P Stainless Pneumatic Chuck With Mounting Plate 102x102mm 1

    Maxx-ER 035519 100 P Stainless Pneumatic Chuck With Mounting Plate 102x102mm

    £1,191.00 GBP
    Maxx-ER 035519 100 P Stainless Pneumatic Chuck With Mounting Plate 102x102mm
    [ME-PEMPS000]

Product Details

  Product Name Maxx-ER 100 P Stainless Multi 4 Pneumatic Chuck System
  SKU/Part Number ME-PER2S004 [Old SKU: MX-ER100PX4]
  System Maxx-ER
  Cross-Compatible ER-035519
  System Repeatability 0.002mm
  Material Stainless 420C  |  Base: Stainless 420C
  Weight 34.63 kg | 76.35 lb
