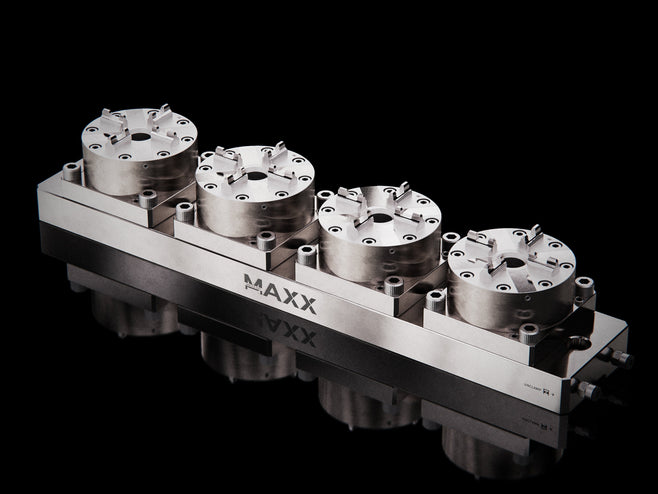

Maxx-ER (Erowa) 100 P Stainless Multi 4 Pneumatic Chuck Precision Rail 1
All Images © 2019-2026 Maxx Tooling All Rights Reserved
SKU: ME-PER1S004
SKU copied to clipboard
Maxx-ER
Maxx-ER 100
Maxx-ER P
Corrosion Resistant
Pneumatic

Maxx-ER 100 P Stainless Multi 4 Pneumatic Chuck Precision Rail

£4,441.00 GBP Sale

Excl. VAT, duties, and taxes.

Maxx-ER Stainless Multi 4 100P Pneumatic Chuck Precision Rail comes fully assembled and ready to use. This product is 100% cross-compatible with the Erowa OEM system. MaxxDesign Exclusive...
Availability: Approximately 2-3 weeks, contact us for more information.
Availability: Approximately 2-3 weeks, contact us for more information.

£4,441.00
100, 100 P, Chuck, Chucking, ER-035519, Erowa, Erowa Chuck, Maxx-ER, Milling, Mounting, MultiChuck, MX-ER100-4, P, Pneumatic, Stainless
Chuck

Maxx-ER Stainless Multi 4 100P Pneumatic Chuck Precision Rail comes fully assembled and ready to use. This product is 100% cross-compatible with the Erowa OEM system.

MaxxDesign Exclusive Features:

  • Four 100 P pneumatic chucks with repeatability within 0.002 mm
  • 100% cross-compatible with OEM system

Product Information:

Maxx-ER 100 P Stainless Multi 4 Pneumatic Chuck Precision Rail is a high-capacity quad-chuck solution engineered to increase productivity while remaining fully compatible with Erowa ITS Systems. Manufactured in stainless steel and supplied fully assembled, this precision rail integrates four 100 P pneumatic chucks mounted parallel on a common base, delivering repeatable positioning within 0.002 mm. The system includes the P Feather interface. Each rail is assembled either for individual chuck actuation or for simultaneous actuation of all four chucks as a single unit. As with all multi-chuck systems, final verification of each chuck’s exact position during installation is recommended.

Product Specifics

  • Clamping Type: Pneumatic (6 bar)
  • Clamping Force: 6000 N
  • Spigot required: ITS Chucking Spigot
  • Chuck Included:
    Maxx-ER (Erowa) 035519 100 P Stainless Pneumatic Chuck With Mounting Plate 102x102mm 1

    Maxx-ER 035519 100 P Stainless Pneumatic Chuck With Mounting Plate 102x102mm

    £1,191.00 GBP
    Maxx-ER 035519 100 P Stainless Pneumatic Chuck With Mounting Plate 102x102mm
    [ME-PEMPS000]

Product Details

  Product Name Maxx-ER 100 P Stainless Multi 4 Pneumatic Chuck Precision Rail
  SKU/Part Number ME-PER1S004 [Old SKU: MX-ER100-4]
  System Maxx-ER
  Cross-Compatible ER-035519
  System Repeatability 0.002mm
  Material Stainless 420C  |  Rail: Stainless 420C
  Weight 25.0 kg | 55.12 lb
