Chuck
Maxx-ER Stainless Horizontal Pneumatic Machine-Adapted Chuck WEDM Rapid Action comes fully assembled and ready to use. This product is 100% cross-compatible with the Erowa OEM system.
MaxxDesign Exclusive Features:
- Full stainless steel construction for corrosion resistance in WEDM environments
- 100% cross-compatible with OEM system
Product Information:

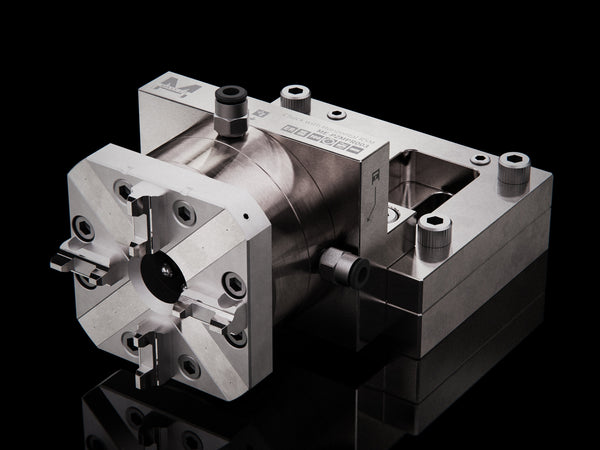

Maxx-ER Stainless Pneumatic Machine-Adapted Chuck WEDM Rapid Action with Horizontal RSM Mounting Plate is a high-precision pneumatic workholding solution designed specifically for WEDM applications requiring fast actuation and flexible machine integration. Manufactured with fully stainless internal and external components, including the base, mounting plates, and adjustment hardware, it delivers long-term corrosion resistance and reliable performance in dielectric environments. The horizontal RSM mounting plate features slots for compatibility with multiple WEDM rail systems, while integrated jack screws allow precise alignment between the chuck and base plate. Removable side and bottom air fittings provide installation flexibility, with positioning accuracy within 0.002 mm.
Product Specifics
- Clamping Type: Pneumatic (6 bar)
- Clamping Force: 6000 N
- Spigot required: ITS Chucking Spigot
-
Chuck Included:
[ME-PZ10R000]Maxx-ER 007621 100 P Stainless Pneumatic Machine-Adapted Chuck Rapid Action RSA WEDM Rust Proof
Maxx-ER 007621 100 P Stainless Pneumatic Machine-Adapted Chuck Rapid Action RSA WEDM Rust Proof
Regular price £1,418.00 GBP -
Repair Kit / Replacements:
[ME-RKPZR000]Maxx-ER Stainless Pneumatic Chuck Machine-Adapted Repair Kit WEDM Rust Proof
Maxx-ER Stainless Pneumatic Chuck Machine-Adapted Repair Kit WEDM Rust Proof
Regular price £275.00 GBP
Product Details
| Product Name | Maxx-ER Stainless Pneumatic Machine-Adapted Chuck with Horizontal 90-Degree RSM Mounting Plate RSA WEDM Rust Proof |
| SKU [Old SKU] | ME-PZMPR003 [MX-WEDM56ER104] |
| System | Maxx-ER |
| Cross-Compatible | ER-007623, ER-007533, ER-007625, ER-007521 |
| System Repeatability | 0.002mm |
| Material | Stainless 440C | Mounting Plate: Stainless 440C |
| Weight | 1.5 kg | 3.31 lb |
