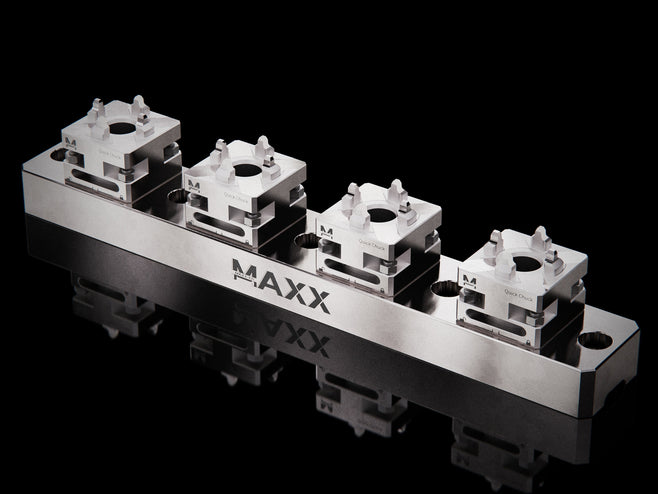

Maxx-ER (Erowa) 50 Stainless Multi 4 Quick Chuck Precision Rail 1
All Images © 2019-2026 Maxx Tooling All Rights Reserved
SKU: ME-QCR1S004
SKU copied to clipboard
Maxx-ER
Maxx-ER 50
Corrosion Resistant
Manual Bar

Maxx-ER 50 Stainless Multi 4 Quick Chuck Precision Rail

£1,987.00 GBP Sale

Excl. VAT, duties, and taxes.

Maxx-ER 50 Stainless Multi 4 QuickChuck Chuck Precision Rail comes fully assembled and ready to use. This product is 100% cross-compatible with the Erowa OEM system. MaxxDesign Exclusive...
Availability: Approximately 2-3 weeks, contact us for more information.
Availability: Approximately 2-3 weeks, contact us for more information.

£1,987.00
50, Chuck, Chucking, EDM, ER-034387, Erowa, Erowa Chuck, Maxx-ER, Milling, Mounting, MultiChuck, MX-QC50X4, QuickChuck, Stainless
Chuck

Maxx-ER 50 Stainless Multi 4 QuickChuck Chuck Precision Rail comes fully assembled and ready to use. This product is 100% cross-compatible with the Erowa OEM system.

MaxxDesign Exclusive Features:

  • Four integrated Quick Chucks on a precision-aligned common rail
  • 100% cross-compatible with OEM system

Product Information:

The Maxx-ER 50 Stainless Multi 4 Quick Chuck Precision Rail is a high-precision workholding solution designed for multi-part and production-oriented setups. Engineered as an upgrade to ER-034387, it is 100% cross-compatible with the Erowa ITS System and integrates seamlessly into existing ITS-50 environments. This system includes four Maxx-ER Quick Chucks mounted on a common precision rail, factory-assembled, aligned, and ready to run, delivering accuracy and repeatability of 0.002 mm. The mounting rail and chuck spacing can be customized to meet specific application requirements.

Product Specifics

  • Clamping Type: QuickChuck
  • Clamping Force: 4000 N
  • Spigot required: ITS Chucking Spigot
  • Chuck Included:
    Maxx-ER (Erowa) 034387 50 Stainless Manual Quick Chuck WEDM Rust Proof 1

    Maxx-ER 034387 50 Stainless Manual Quick Chuck WEDM Rust Proof

    £392.00 GBP
    Maxx-ER 034387 50 Stainless Manual Quick Chuck WEDM Rust Proof
    [ME-QC50R000]
  • Included Items: MX-ACMTX001

Product Details

  Product Name Maxx-ER 50 Stainless Multi 4 Quick Chuck Precision Rail
  SKU/Part Number ME-QCR1S004 [Old SKU: MX-QC50X4]
  System Maxx-ER
  Cross-Compatible ER-034387
  System Repeatability 0.002mm
  Material Stainless 440C (57-60 HRC)  |  Rail: Stainless 420C
  Weight 8.34 kg | 18.39 lb
