Maxx-ER (Erowa) 115305 PowerChuck P Stainless Chuck With Mounting Plate 158x228mm 1
All Images © 2019-2026 Maxx Tooling All Rights Reserved
SKU: ME-PPMPS228
SKU copied to clipboard
Maxx-ER
Maxx-ER P
Corrosion Resistant
Pneumatic

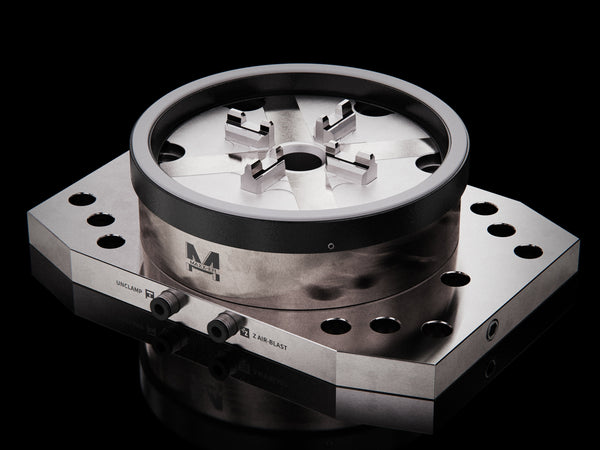

Maxx-ER 115305 PowerChuck P Stainless Chuck With Mounting Plate 158x228mm

£2,333.00 GBP Sale

Excl. VAT, duties, and taxes.

Maxx-ER 115305 PowerChuck P Stainless Chuck With Mounting Plate 158x228mm comes fully assembled and ready to use. This product is 100% cross-compatible with the Erowa OEM system. MaxxDesign...
Availability: Approximately 2-3 weeks, contact us for more information.
Availability: Approximately 2-3 weeks, contact us for more information.

£2,333.00
Chuck, Chucking, EDM, ER-115305, Erowa, Erowa Chuck, Maxx-ER, Milling, Mounting, MX-115305, P, Pneumatic, PowerChuck, PowerChuck P, Stainless
Chuck

Maxx-ER 115305 PowerChuck P Stainless Chuck With Mounting Plate 158x228mm comes fully assembled and ready to use. This product is 100% cross-compatible with the Erowa OEM system.

MaxxDesign Exclusive Features:

  • Extra-flat design (Z-height 54 mm) with 4×90° indexing
  • 100% cross-compatible with OEM system

Product Information:

Maxx-ER 115305 PowerChuck P Stainless Chuck With Mounting Plate 158×228 mm is a high-precision pneumatic workholding solution designed for demanding production environments and seamless interoperability with existing Erowa PowerChuck P ER-115305 installations. This extra-flat stainless steel chuck (Z-height 54 mm) delivers exceptional repeatability of 0.002 mm and 4×90° indexing for accurate, repeatable positioning across setups. It accepts P pallets as well as 100, 50, and G plates, includes a sealing ring for reliable operation, and can be supplied with a customized mounting plate to match specific machine requirements—enabling fast changeovers without compromising precision.

Product Specifics

  • Clamping Type: Pneumatic (6 bar)
  • Clamping Force: 10000 N
  • Spigot required: ITS Chucking Spigot
  • Included Items: ME-PPACA001
  • Accessories:
    Maxx-ER (Erowa) 115722 Aluminum PowerChuck Spare Part Integrated Sealing Ring 1

    Maxx-ER 115722 Aluminum PowerChuck Spare Part Integrated Sealing Ring

    £313.00 GBP
    Maxx-ER 115722 Aluminum PowerChuck Spare Part Integrated Sealing Ring
    [ME-PPACA001]

Product Details

  Product Name Maxx-ER 115305 PowerChuck P Stainless Chuck With Mounting Plate 158x228mm
  SKU/Part Number ME-PPMPS228 [Old SKU: MX-115305]
  System Maxx-ER
  Cross-Compatible ER-115305
  System Repeatability 0.002mm
  Material Stainless 420C  |  Mounting Plate: Stainless 420C
  Weight 4.5 kg | 9.92 lb
