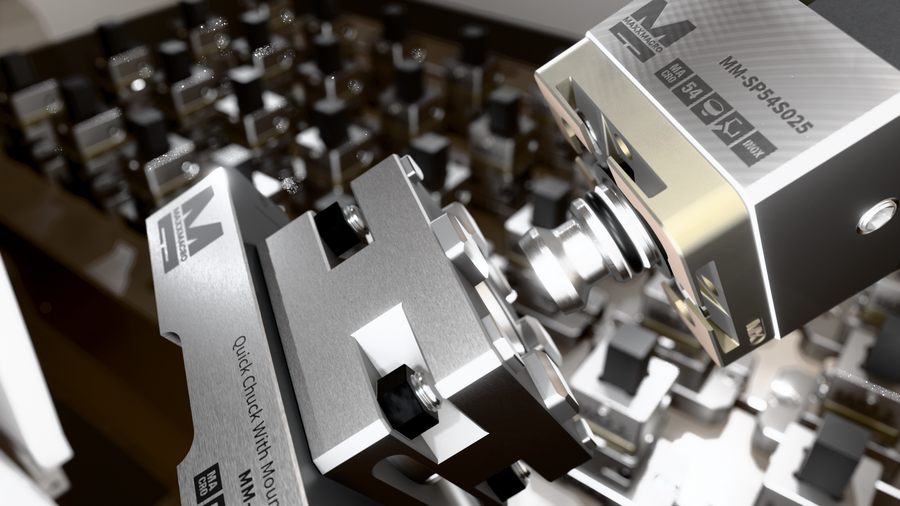

Are you new to workholding systems or looking to better understand how the MaxxMacro® system operates? In this video, we break down the core components—drawbar, pallet, and chuck—and explain how they work together to create an efficient, high-precision setup.
Why the MaxxMacro® System?
Reducing machine idle time is often more impactful than chasing faster machining speeds. The MaxxMacro® system is designed with this in mind: by enabling off-machine presetting and seamless inter-machine transfers, you can dramatically reduce internal setup time.
With a precise and consistent reference system, electrodes and workpieces can be moved between machines without realignment, helping you boost spindle utilization and overall productivity.
1. Drawbar
The drawbar is a key connector in the MaxxMacro® system. It locks into any MaxxMacro® pallet with a simple twist, enabling fast and secure clamping into a chuck.
✅ Universal compatibility: Every MaxxMacro® drawbar fits every MaxxMacro® pallet.
✅ Multiple models available: Choose the correct drawbar based on your chuck model.
📌 Tip: Always check the product description of your chuck to confirm which drawbar is required.
2. Pallet
MaxxMacro® pallets serve as the adaptable interface between your workpiece or fixture and the chuck.
They come in two main types:
-
Standard: Stainless cast versions for everyday applications.
-
MaxxPerformance: Precision-machined from solid 440C stainless steel for enhanced strength and durability.
📏 Available sizes: 54mm, 70mm, and MaxxMagnum—suitable for a wide range of workholding setups.
🛠️ You can mount workpieces or custom fixtures directly onto MaxxMacro® pallets.
✅ All MaxxMacro® fixtures come pre-installed with pallets, so you’re ready to go out of the box.
3. Chuck
The chuck is the heart of your MaxxMacro® setup — providing a stable, ultra-precise base for mounting any MaxxMacro® component. With repeatability of 0.002mm, it ensures consistent accuracy across setups and machines.
🧲 Clamping options:
-
Manual with quick bar
-
Manual with Allen key
-
Pneumatic models
🌊 Some chucks are designed for submerged operation, and a wide range of mounting plates are available to suit different machines and setups.
✨ Need something specific? Custom mounting plates can be made to order!
💡 Reminder: Your machine only makes money when the spindle is turning. MaxxMacro® helps you work smarter, not harder.
