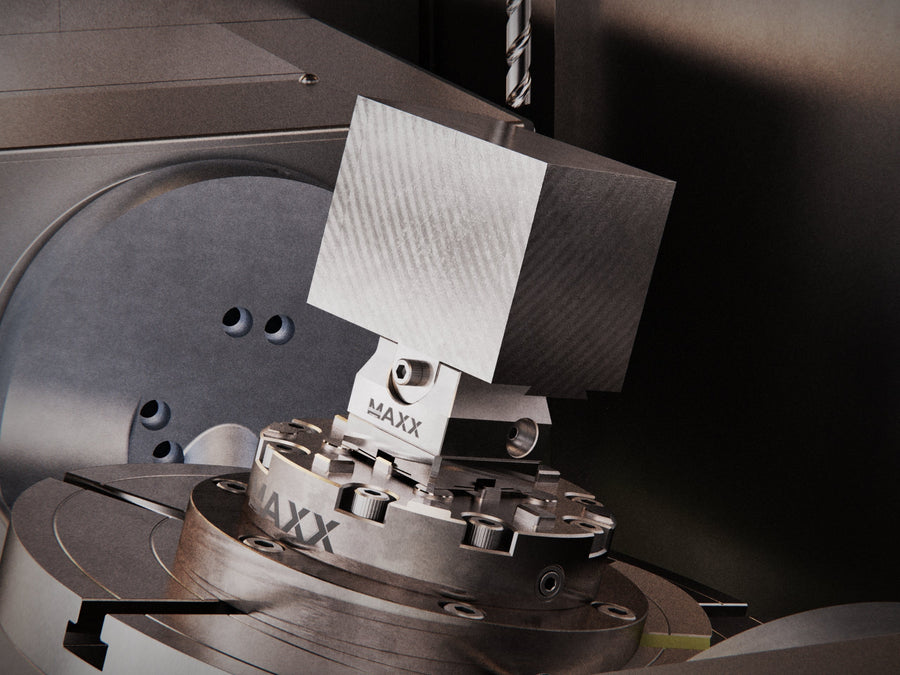

Dovetail holders redefine workholding excellence, offering numerous advantages for machining success. Their design supports large workpieces and various materials, making them indispensable for CNC milling, especially in 4 and 5 Axis operations.
- Precision and Stability
A precision retractable locating pin ensures the stock is centered in the fixture and prevents displacement during machining. This feature also provides high repeatability for in-process inspections and transitions between machines. The spring-loaded design makes it easy to press down with your workpiece.
- Superior Clamping Force
MaxxTooling dovetail holders use a 45-degree dovetail angle, delivering uniform inward and downward force. This ensures superior stability compared to other methods, requiring minimal torque. Their robust design holds larger raw materials with minimal waste, providing exceptional repeatability and precision.
- Durability and Versatility
Made from 440C stainless steel, MaxxTooling dovetail holders are rust-proof and corrosion-resistant, making them ideal for Wire EDM applications. They guarantee durability and reliability even in harsh environments, accommodating a wide range of materials from fragile graphite to ultra-hard high-temp alloys.
- Quick and Simple Preparation
Dovetailing is a fast and straightforward operation that prepares your stock for dovetail fixtures and vises. This small initial investment translates to unmatched holding power and precision throughout the manufacturing process.
- Efficient Material Use
Dovetailing reduces material waste compared to traditional clamping methods, minimizing stock consumption and part deformation. The clamping force is evenly distributed, utilizing downforce instead of lateral pressure, which enhances material efficiency and reduces costs.
- Automation Ready
MaxxTooling dovetail holders include a Code Carrier Pocket and threaded holes for installing the MaxxMacro Cleat for Robot Gripper (cleat not included), facilitating automation and improving operational efficiency.
In summary, MaxxTooling dovetail holders offer compact, stable, and precise workholding solutions that support large pieces and a wide range of materials. They enhance material efficiency, simplify setup, and provide the durability needed for various machining operations, making them a valuable addition to any manufacturing setup.
